Quick Details
-
Brand Name:
-
ECOM
-
Model Number:
-
S5912GF-FX
-
Place of Origin:
-
Guangdong, China
-
Fixed Port:
-
12x10000Base-FX 10G SFP+
-
Certificate:
-
CE CE/LVD FCC Part 15 Class B RoHS
-
Product size:
-
124mm*113mm*31mm
-
Power:
-
AC 100~240V
-
Product Name:
-
L3 Managed Switch
-
Condition:
-
100%
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
160G
-
Brand Name:
-
ECOM
-
Model Number:
-
S5912GF-FX
-
Place of Origin:
-
Guangdong, China
-
Fixed Port:
-
12x10000Base-FX 10G SFP+
-
Certificate:
-
CE CE/LVD FCC Part 15 Class B RoHS
-
Product size:
-
124mm*113mm*31mm
-
Power:
-
AC 100~240V
-
Product Name:
-
L3 Managed Switch
-
Condition:
-
100%
Specification

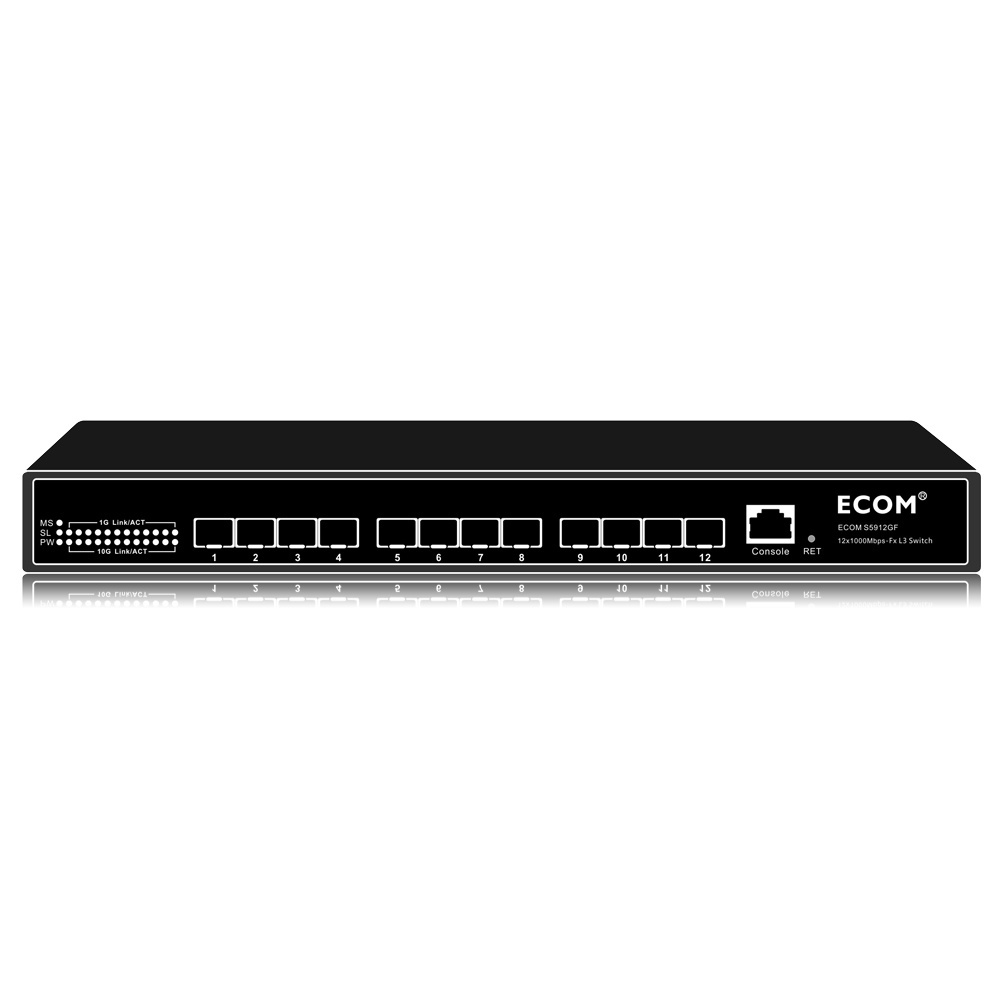

ECOM S5912GF-FX 12x1000/10000Mbps-FX 10G SFP+ L3 Managed Switch
Product Features:
* Provide 12x10/100/1000/10000Mbps RJ45 adaptive ports, all of which can realize line speed forwarding.
* It supports the combination of multiple types of ports to facilitate users' flexible networking and meet the networking requirements of various scenarios.
* Each port supports MDI / mdix automatic flip and duplex / rate self negotiation.
* Support IEEE 802.3x full duplex flow control and backpressure half duplex flow control.
* Add a variety of new applications based on IPv6 to easily adapt to modern complex network management applications.
* Support IEEE 802.1Q VLAN, users can flexibly divide VLAN according to their needs.
* Support voice VLAN, configure QoS parameters for voice data stream, improve the transmission priority of voice data stream and ensure the quality of communication.
* Support QoS, port based, 802.1p based and DSCP based priority modes to optimize bandwidth configuration.
* Supporting ACL, filtering data packets by configuring matching rules, processing operations and time permissions, and providing flexible security access control policies.
* Support IGMP V1 / V2 multicast protocol and IGMP snooping to meet the requirements of multi terminal HD video monitoring and video conference access.
* Support multicast VLAN and multicast filtering, transmit data efficiently, save network bandwidth and reduce network load.
* Support port monitoring, copy a packet of the monitored port to the monitoring port to realize network monitoring.
* Support the management and maintenance of equipment through web interface.
* Support port convergence, effectively increase link bandwidth, realize link backup and improve link reliability.
* Support STP / RSTP / MSTP spanning tree protocol, eliminate layer-2 loop and realize link backup.
* Support the spanning tree security function to prevent the devices in the spanning tree network from various forms of malicious attacks.
* Support static aggregation and dynamic aggregation, effectively increase link bandwidth, realize load balancing and link backup, and improve link reliability.
* Support web network management, CLI command line (console, telnet), SNMP (V1 / V2 / V3) and other diversified management and maintenance methods.
* Support the encryption methods such as HTTPS, SSL V3, tlsv1, sshv1 / V2, and make the management more secure.
* Support RMON, system log, port traffic statistics, facilitate network optimization and transformation.
* The user can know the working status of the switch through the power indicator (PWR), port status indicator and system status indicator (sys).
* Longway independent research and development of power supply, high redundancy design, to provide long-term stable PoE power output.
* The equipment meets the national CCC standard, fully meets the safety requirements, and is safe and reliable.
* Provide 12x10/100/1000/10000Mbps RJ45 adaptive ports, all of which can realize line speed forwarding.
* It supports the combination of multiple types of ports to facilitate users' flexible networking and meet the networking requirements of various scenarios.
* Each port supports MDI / mdix automatic flip and duplex / rate self negotiation.
* Support IEEE 802.3x full duplex flow control and backpressure half duplex flow control.
* Add a variety of new applications based on IPv6 to easily adapt to modern complex network management applications.
* Support IEEE 802.1Q VLAN, users can flexibly divide VLAN according to their needs.
* Support voice VLAN, configure QoS parameters for voice data stream, improve the transmission priority of voice data stream and ensure the quality of communication.
* Support QoS, port based, 802.1p based and DSCP based priority modes to optimize bandwidth configuration.
* Supporting ACL, filtering data packets by configuring matching rules, processing operations and time permissions, and providing flexible security access control policies.
* Support IGMP V1 / V2 multicast protocol and IGMP snooping to meet the requirements of multi terminal HD video monitoring and video conference access.
* Support multicast VLAN and multicast filtering, transmit data efficiently, save network bandwidth and reduce network load.
* Support port monitoring, copy a packet of the monitored port to the monitoring port to realize network monitoring.
* Support the management and maintenance of equipment through web interface.
* Support port convergence, effectively increase link bandwidth, realize link backup and improve link reliability.
* Support STP / RSTP / MSTP spanning tree protocol, eliminate layer-2 loop and realize link backup.
* Support the spanning tree security function to prevent the devices in the spanning tree network from various forms of malicious attacks.
* Support static aggregation and dynamic aggregation, effectively increase link bandwidth, realize load balancing and link backup, and improve link reliability.
* Support web network management, CLI command line (console, telnet), SNMP (V1 / V2 / V3) and other diversified management and maintenance methods.
* Support the encryption methods such as HTTPS, SSL V3, tlsv1, sshv1 / V2, and make the management more secure.
* Support RMON, system log, port traffic statistics, facilitate network optimization and transformation.
* The user can know the working status of the switch through the power indicator (PWR), port status indicator and system status indicator (sys).
* Longway independent research and development of power supply, high redundancy design, to provide long-term stable PoE power output.
* The equipment meets the national CCC standard, fully meets the safety requirements, and is safe and reliable.
|
Fixed port
|
12x10/100/1000/10000Mbps 10G SFP+ port
|
|
Console port
|
1*console port
|
|
Reset Key
|
1
|
|
Network Protocol
|
IEEE 802.3x IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3z IEEE 802.3ad IEEE 802.3q IEEE 802.3q/p IEEE 802.1w IEEE 802.1d IEEE
802.1S IEEE 802.3z 1000BASE-X STP(Spanning Tree Protocol) RSTP/MSTP( Rapid Spanning Tree Protocol) EPPS ring network protocol EAPS ring network protocol |
|
CPU
|
MIPS-34Kc Up to 700MHz
|
|
Bandwidth
|
160Gbps
|
|
DDR
|
DDR3 2G
|
|
Packet Forwarding
|
74.88Mpps
|
|
MAC Address
|
16K
|
|
Buffer
|
12M
|
|
Transmission Distance
|
10BASE-T: Cat3,4,5 UTP(≤250 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-TX: Cat6 or later UTP(≤1000 meter) 1000BASE-SX: 62.5μm/50μm MMF(2m~550m) |
|
FLASH
|
128M
|
|
RAM
|
256M
|
|
Watt
|
MAX 35W （AC100-240V 50/60HZ）
|
|
LED Indicator
|
PWR: Power LED
SYS: (System LED) 1~12: (Green LED=10/100M Link、1000M=Orange LED） |
|
Power
|
Built-in power AC: 100～240V 50-60Hz 1A
|
|
Operating Temp.
|
-20～+55°C; 5%～90% RH Non coagulation
|
|
Storage Temp.
|
-40～+75°C; 5%～95% RH Non coagulation
|
|
Size
|
124mm*113mm*31mm
|
|
N.W/G.W（kg）
|
1.82KG/2.46KG
|
|
Installation
|
Rack-mount(optional machine hanger spare parts)
|
|
protection level
|
3KV 8/20us； IP30
|
|
Certificate
|
CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; RoHS;
|
|
Warranty
|
Whole device for 1 year(Accessories not included)
|
