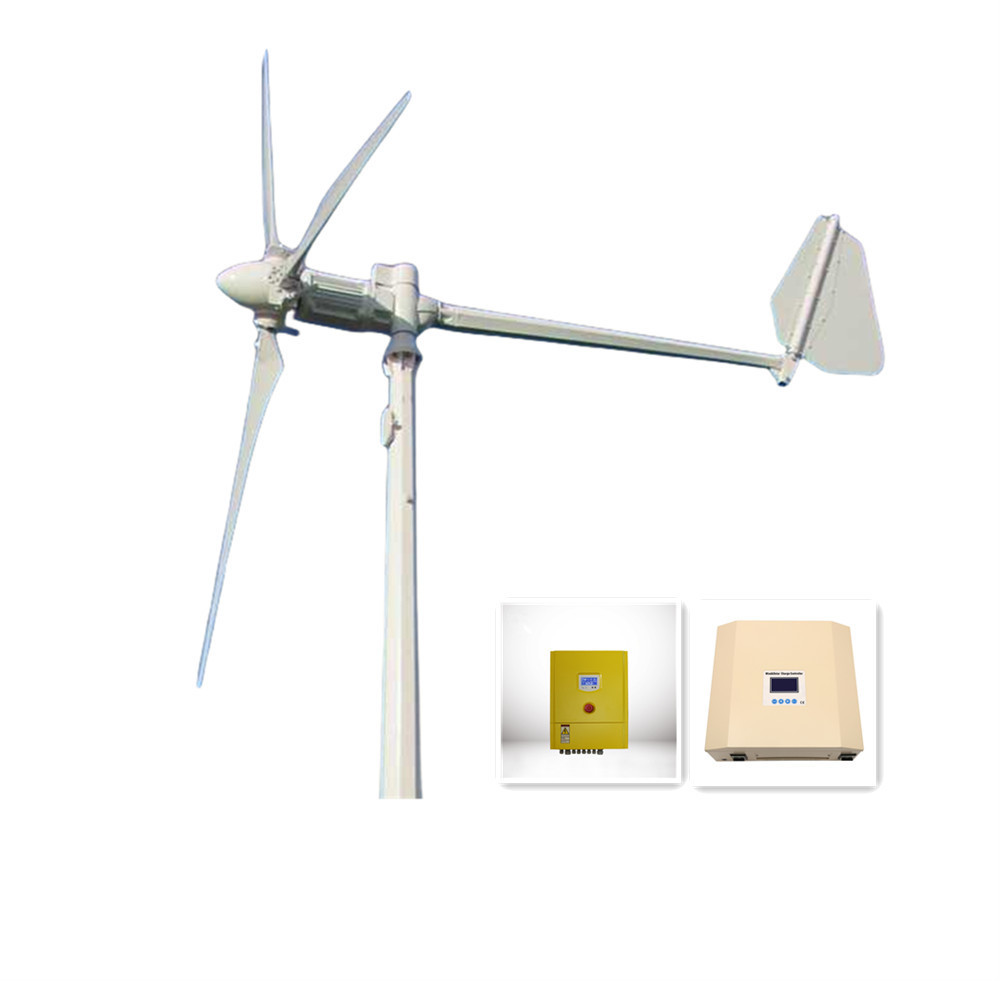

Centrifugal Pitch Controlled wind generator 5kw on grid system 380v HAWT speed regulated wind power manufacturer
Sales! 5kw variable pitch wind turbine main body: US$3200.00/set
5kw fixed pitch wind t urbine: US$1900.00/set
Including blades, nose cone, hub, generator and nacelle, tail
Provide the tower, inverter, controller seperately.
1. Variable pitch wind turbine on grid working system 380v
Wind turbine with tower + PWM on grid controller with dump load + grid tie inverter
System simple drawing:
wind Turbine on grid system application
User's can take whole system from us, also can take any part of the system from us.
Variable pitch wind turbine off grid working system 48v 120v 240v
Wind turbine with tower + PWM charge controller with dump load + battery group + inverter
5kw Variable pitch Wind Turbine Introduction
5KW pitch control wind turbine takes advantage of the characteristic of weight to control blade
angle according to wind speed and rotation speed, and through the blade twist, the turbine
changes blades itself aerodynamic characteristics and output power. It is the most efficient small HAWT in current market.
Feature
2. Easy start-up behavior and keep constant power output under gust, wide working wind speed from 2m/s to 35m/s, more power output.
5kw Variable pitch wind turbine Specification
| Performance | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Rated power | 5000W @10m/s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Peak power | 6000W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Start-up wind speed | 2m/s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Working wind speed | 3-35m/s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Survival wind speed | 50m/s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Rotor | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Rotor diameter | 5.4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Swept area | 22.89m² | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Blade | 3pcs reinforced fiber glass | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Blade length | 250cm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Shell material | precision steel | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Rated RPM | 260 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Weight | 450KG | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Others | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Generator type | directly drive 3-phase AC PM | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Speed regulation & protection |
yawing + electromagnetic brake + pitched control |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Controller rated voltage | DC 48-500V | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Suggested battery capacity | 8pcs 250AH/12VDC (grid off system) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Suggested tower | 9-15 tilting up tower | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Working temperature | -40-60°c | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Output Power data | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wind turbine main body assembly:
3 pcs blades, variable pitch hub, generator+nacelle, tail
3. Tower for the wind turbine:
Tower type: guy wire tower, stand lone tower, tilting up tower, hydraulic tower (optional)
Tower height can be manufacture according to user's request.
The tower with hot-galvanize.
We provided the tower foundation drawing after confirm the tower type, tower height.
4. 5KW PWM on grid controller with dump load
|
Power of the equipped wind turbine (W) |
5K |
|
Operating mode |
Continuous |
|
Function |
Commutation, control |
|
Operating environment |
Temperature -30~60 Centigrade, humidity≤80% |
|
PWM unloading voltage (DCV) |
≥380V |
|
three-phase dump load voltage (DCV) |
400±5V |
|
three-phase dump load delay time (min) |
10-20 minutes |
|
Low voltage indicator (V) |
≤130V |
|
Self-provided connecting wire of the three-phase dump load (mm²) |
>4mm2 |
|
Self-provided connecting wire of the PWM dump load(mm²) |
>4mm2 |
|
PWM unloading fuse (A) |
25A |
|
DC output fuse (A) |
25A |
5. Wind turbine 5kw grid tie inverter, single phase
Grid power can be 110v 60hz/220v 50hz, single phase
|
The max DC input voltage: |
600V |
|
MPPT operation range: |
30-540Vdc |
|
MPPT mode: |
Power curve tracking |
|
DC nominal voltage: |
300Vdc |
|
The max dc input current: |
25Adc |
|
Maximum input power: |
5kW |
|
Rating output power: |
5kW |
|
The transient max power: |
5kW |
|
Rating grid voltage: |
230Vac |
|
The grid voltage range: |
180~270Vac |
|
Operation phase: |
Single phase |
|
Rating grid output current: |
21.7Aac |
|
Output power factor: |
>0.99 |
|
Grid current THD: |
<4% |
|
The dc injection current: |
<20mA |
|
Rating grid frequency: |
50Hz/60Hz |
|
Efficiency: |
>97% |
|
Protection : |
Isolation protection; temperature protection; short circuit protection; Etc |
|
Size: |
339Wx565Hx172.5D(mm) |
|
Weight: |
15.5kg |
|
Topology: |
Transformerless |
|
Internal consumption: |
<6W(No wind) |
|
Running temperature: |
-25~60 |
|
Ingress protection: |
IP65 |
|
Interface: |
RS485/Wifi or GPRS(Optional) |
|
Design lifetime: |
>20 years |
Variable pitch wind turbine 2kw-50kw:
| Pitch Control Wind Turbine Technical Parameters | |||||||
| Item | FD3.8-2kw | FD4-3kw | FD5.4-5kw | FD10-10kw | FD12-20kw | FD14-30kw | FD23-50kw |
| Rotor diameter(m) | 3.8 | 4 | 5.4 | 10 | 12 | 14 | 23 |
| Blade material | Reinforced FPR | Reinforced FPR | Reinforced FPR | ||||
| Blade quantity | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Rated wind speed (m/s) | 9 | 10 | 10 | 10 | 10 | 9 | 9 |
| Start-up wind speed(m/s) | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Working wind speed(m/s) | 3.0-25 | 3.0-35 | 3.0-35 | 3.0-35 | 3.0-35 | 3.0-35 | 3.0-35 |
| Security wind speed(m/s) | 40 | 40 | 45 | 45 | 50 | 50 | 50 |
| Starting torque(n/m) | 1.4 | 2.5 | 4.5 | 7.5 | 14 | 20 | 110 |
| Speed adjusting mode | Centrifugal Pitch Control | Active Pitch Control, Active Yawing | |||||
| Stop method | Electromagnetic + Manual brake | Feathering,Yawing,Electromagnetic | |||||
| Generator type | Permanent Magnet Three phase AC generator | ||||||
| Rated power | 2KW | 3KW | 5KW | 10KW | 20KW | 30KW | 50KW |
| Maximum power | 3KW | 4KW | 6KW | 12KW | 25KW | 35KW | 60KW |
| Rated RPM(r/min) | 380 | 300 | 240 | 180 | 150 | 140 | 60 |
| Working voltage | DC24V-500V | DC48V-500V | DC48V-500V | DC120V-500V | DC240V-500V | DC500V | DC700V |
| Wind turbine weight(kg) | 130 | 160 | 260 | 1000 | 2500 | 2800 | 6580 |
Packaging & Shipping
Packaging details
| Model | Outside size |
G.W
kg |
Cubage
m3 |
Q'ty | Remark | |
|
5kw380v variable pitch wind turbine main body |
1.58*0.71*0.49 | 374 | 0.55 | 1 |
generator,hub, nacelle |
plywood case |
| 3.38*1.13*0.33 | 146 | 1.26 | 1 | blades and tail | plywood case | |
|
5kw on grid controller with dump load |
0.64*0.5*0.81 | 58 | 0.26 | 1 |
controller with dump load |
plywood case |
| TTL: | 578 | 2.07 | 3 | |||
Shipping method :
Sample order is acceptable and recommended to send via LCL sea shipment or air shipment. Please contact our sales to get the detail shipment suggestion.
Provide professional wind turbine technical support;
Provide on/off grid system design, wind solar hybrid system design service.
Completely system provider and designer;
Wind turbine type, model, capacity selection professional support;
Tower design, foundation drawing support;
Provide Pma, hub, flange drawing;
Provide OEM service, customized service.
Support paypal /west union payment, TT payment;
For more details, pls contact with us.
