Quick Details
-
Brand Name:
-
APOLLO RFN
-
Model Number:
-
Rally
-
Place of Origin:
-
Jiangsu, China
-
Product Name:
-

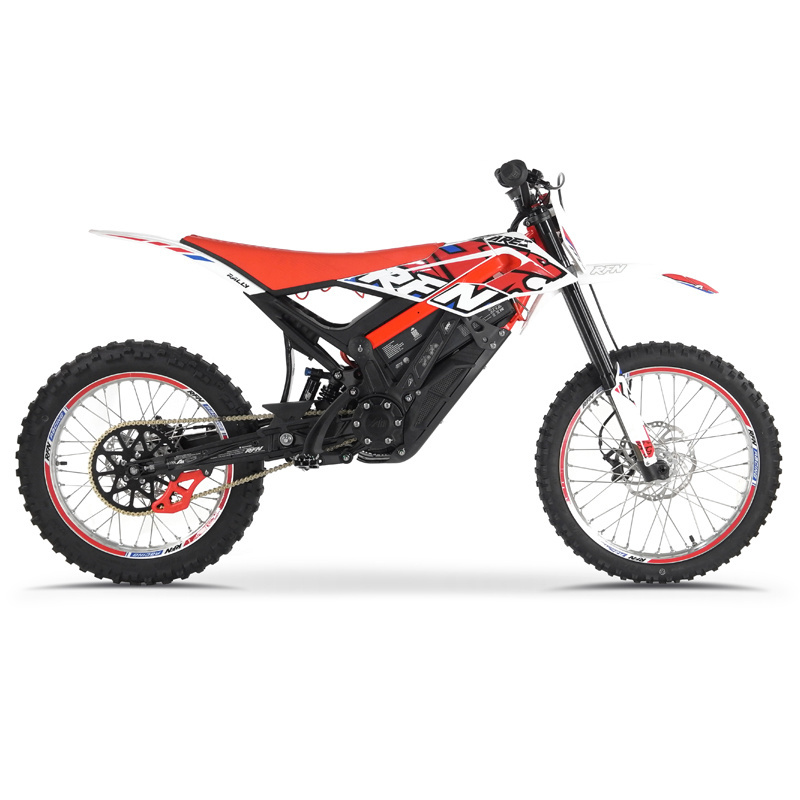

RFN ARES Rally Pro
-
Max Power:
-
12.5kw
-
Battery capacity:
-
74v 35AH (LG 21700 Cell)
-
Charging time:
-
2-3Hours
-
Rate power:
-
5kw
-
Net weight:
-
83kg (included battery)
-
Motor Power:
-
Brushless mid motor
-
Tire:
-
FR:70/80-19, RR: 80/90/18
-
Climbing Ability:
-
45°
-
Colors:
-
red
Quick Details
-
Motorcycle Type:
-
Off-Road dirt ebike
-
Max. Speed:
-
65km/h
-
Voltage:
-
74V
-
Brand Name:
-
APOLLO RFN
-
Model Number:
-
Rally
-
Place of Origin:
-
Jiangsu, China
-
Product Name:
-
RFN ARES Rally Pro
-
Max Power:
-
12.5kw
-
Battery capacity:
-
74v 35AH (LG 21700 Cell)
-
Charging time:
-
2-3Hours
-
Rate power:
-
5kw
-
Net weight:
-
83kg (included battery)
-
Motor Power:
-
Brushless mid motor
-
Tire:
-
FR:70/80-19, RR: 80/90/18
-
Climbing Ability:
-
45°
-
Colors:
-
red
|
SPECIFICATION
|
|
|
|
Battery
|
74V / 2590 Kwh, LG Premium 21700 lithium cells, removable, can be charged in bike or separately.
|
|
|
Brakes
|
Front and Rear 4-piston hydraulic disc, 210 mm
|
|
|
Charging
|
2-3 h with Quickcharge Function
|
|
|
Controller
|
Sine wave, Best-in-class power density and state-of-the-art motor control algorithms.
|
|
|
Waterproof
|
IP67
|
|
|
DRIVETRAIN
|
|
|
|
Electric motor
|
Air cooled Permanent Magnet Synchronous Motor, energy regeneration function, Direct drive, 420 chain with DX
|
|
|
Sprocket
|
13-58 T
|
|
|
Rated power
|
5 kW
|
|
|
Peak power
|
12.5 kW
|
|
|
Max Torque of motor
|
58 N·m
|
|
|
Max Torque of rear wheel
|
270 N.m
|
|
|
DIMENSIONS
|
|
|
|
Fork angle
|
24 °
|
|
|
Ground clearence
|
340 mm
|
|
|
Offset
|
15mm in triple clamps, 45 mm in forks
|
|
|
Seat height
|
860 mm
|
|
|
Trail
|
111 mm
|
|
|
Wheel base
|
1330 mm
|
|
|
BODYWORK
|
|
|
|
Fenders & Bodywork
|
PP/ABS plastic
|
|
|
Frame
|
6082 aluminum extruded, forged, CNC machined and steel frame
|
|
|
Front suspension
|
Upside Down, 200 mm travel, Fully adjustable
|
|
|
Handlebar
|
High rise 6061 aluminium, 760 mm length
|
|
|
Rear suspension
|
Mono-Shock, 74 mm travel, adjustable
|
|
|
Regulatory Cetificate
|
CE
|
|
|
RIDE MODES
|
|
|
|
Mode 1
|
Tortoise mode: The ultimate mode energy conservation exploration. Limited to 15 mph with 3.5 h battery range.
|
|
|
Mode 2
|
Rabbit mode: Enduro or active trail riding. 1-2 h riding time.
|
|
|
Mode 3
|
Rocket mode: Track and race mode, maximum torque and speed, riding time up to 1 h.
|
|
|
Mode 4
|
Reverse mode: Limited to 6 mph.
|
|
|
SPEED & RANGE
|
|
|
|
Range
|
100 mi (Test data Load: 75 Kg, 12.5 mph uniform speed, ambient temperature: 25 °C, flat pavement, standard tyres, standard tyre
pressure) |
|
|
Top speed
|
55 mph (depending on gearing and conditions)
|
|
|
WEIGHT
|
|
|
|
Net weight of Battery
|
15 kg
|
|
|
Net weight of whole bike (Including Battery)
|
68 kg
|
|
|
Maximum load
|
120 kg
|
|
|
WHEELS & TYRES
|
|
|
|
Hubs
|
Forged and CNC aluminium RFN hubs with 20 mm axle.
|
|
|
Rims
|
F 19"/ R 18" (Motorcycle standard) re-inforced, triple chamber, 7050 aluminium.
|
|
|
Tyres
|
F CST CM721 70/100-19 off-road , R CST CM722 90/100-18 off-road
|
|
