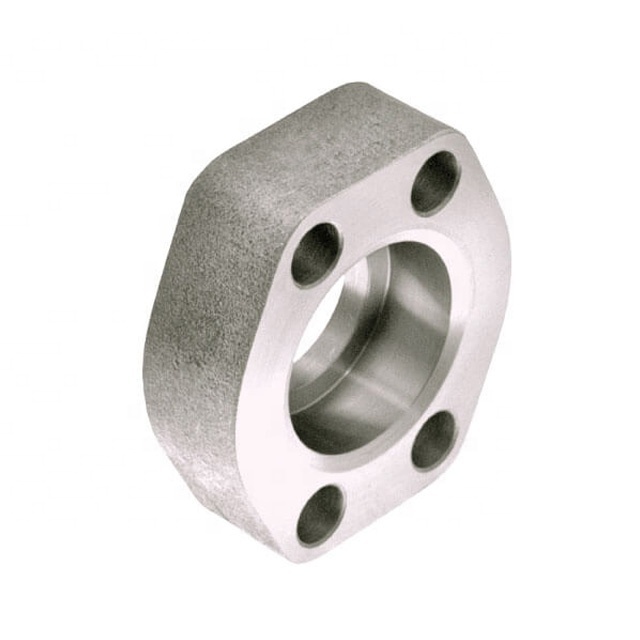

Stainless Steel SAE Socket Weld Flange

FOB Reference Price: Get Latest Price

≥1 Pieces

US $10

≥500 Pieces

US $8.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product name:: Stainless Steel SAE Socket Weld Flange

Flange Size:: 3/4 inch, 1/2 inch

Material:: Stainless Steel, Carbon Steel

Grade:: SS 316 ,SS 316 L

Shape:: Round

Technics:: Forged

Process:: Die Forging + CNC Machining

Application:: Pneumatic Connections, Hydraulic Pipe, Chemical Fertilizer Pipe

Standard of SAE flanges:: SAE J 518 C, ISO 6162-1/2

Flange Keyword:: sae flange 3000 psi,sae split flange clamp

Quick Details

Standard:: ANSI, bs, DIN, GB, ISO, JIS, Jpi, ASME

Type:: Integral Flange, weld neck flange, Slip on Flange, socket weld flange, LAP Joint Flange, Threaded flange, blind flange, Orifice flange, Spectacle Blind flange

Place of Origin:: Shanghai, China

Product name:: Stainless Steel SAE Socket Weld Flange

Flange Size:: 3/4 inch, 1/2 inch

Material:: Stainless Steel, Carbon Steel

Grade:: SS 316 ,SS 316 L

Shape:: Round

Technics:: Forged

Process:: Die Forging + CNC Machining

Application:: Pneumatic Connections, Hydraulic Pipe, Chemical Fertilizer Pipe

Standard of SAE flanges:: SAE J 518 C, ISO 6162-1/2

Flange Keyword:: sae flange 3000 psi,sae split flange clamp

Product Description

Stainless Steel SAE Socket Weld Flange

SAE flanges / hydraulic SAE flanges are the main product of R&D group's factory also. The products are made according to SAE J 518 C and ISO 6162-1/2, and they are for safe and leak-free flange connections. And now we are one of the first class quality SAE flanges manufacturer in China.

SPECIFICATIONS FOR SAE FLANGES
Size	Rated Pressure (Bar)	Material Standard	Type
1-5 inch	3000 PSI & 6000 PSI	ASTM A182	Threaded flanges, Blind flanges, Weld neck flanges

Type of Flanges :

1). Weld Neck Flanges - WNRF
2). Socket Weld Flanges - SWRF
3). Slip On Raise Face - SORF
4). Blind Raise Face - BLRF
5). Lap Joint
6). Screwed (Threaded)
7). Long Weld Neck
8). Reducing
9). Spectacle Blind
10). Ring Joint
11). Large Dia Ring
12). Orifice
13). Girth Flange

Detailed Images

SAE flange feature:

Ryan Hydraulics for Hydraulic Flanges in accordance with the mounting dimensions and O-Rings of SAE J618 specifications, either code 61 (3000) or code 62 (6000), and ISO 6162.

Stock flanges include split, mono socket weld, butt weld, NPTF and SAE straight thread connections and are available as reducers, in-line & elbows.

Companion (flat-faced) flanges, for unions or converting split flange connections to pipe and tubing, are available with either inch or metric threads.

Material of Construction : Carbon Steel, S.S.304 & S.S.316 Forged or from Plate.

Sizes : 1/2"NB to 6"NB , Also Available for Metric tube.

Available Ranges Are:

Sae Code 61 Split Flange & Sae Code 62 Split Flange & Captive Flange
Socket Weld Sae 3000 & Socket Weld Sae 6000 Flange
Butt Weld Sae 3000 & Butt Weld Sae 6000 Flange
Square Flanges 3000 Class & 6000 Class
Cetop Flange.
