High Frequency Induction PVC Shoes Upper Welding Machine, Hydraulic High Frequency Plastic Welding and Cutting Machine

High Frequency Induction PVC Shoes Upper Welding Machine, Hydraulic High Frequency Plastic Welding and Cutting Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $3500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Frequency:: 27.12 MHZ, 27.12 MHZ

Welding Area:: 350*700mm

Dimensions:: 1650*1100*1860mm

Use:: footwear,trademark,leather bags,nameplate,logo

Weight (KG):: 830 KG

Power (kW):: 10

Product name:: High frequency welding &cutting machine

Application:: footwear,trademark,leather bags,nameplate,logo

Function:: PVC,EVA,TPU Welder

Welding material:: pvc,tpu,eva welding,pu embossing

Color:: blue+white

Welding principle:: high frequency welding,rf welding

Daily protection:: keep machine working table clean

Type:: hf welding,cutting and embossing

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: JingYi

Voltage:: AC220/380/400/415/440V 3P

Frequency:: 27.12 MHZ, 27.12 MHZ

Welding Area:: 350*700mm

Dimensions:: 1650*1100*1860mm

Use:: footwear,trademark,leather bags,nameplate,logo

Weight (KG):: 830 KG

Power (kW):: 10

Product name:: High frequency welding &cutting machine

Application:: footwear,trademark,leather bags,nameplate,logo

Function:: PVC,EVA,TPU Welder

Welding material:: pvc,tpu,eva welding,pu embossing

Color:: blue+white

Welding principle:: high frequency welding,rf welding

Daily protection:: keep machine working table clean

Type:: hf welding,cutting and embossing

Machine Feature

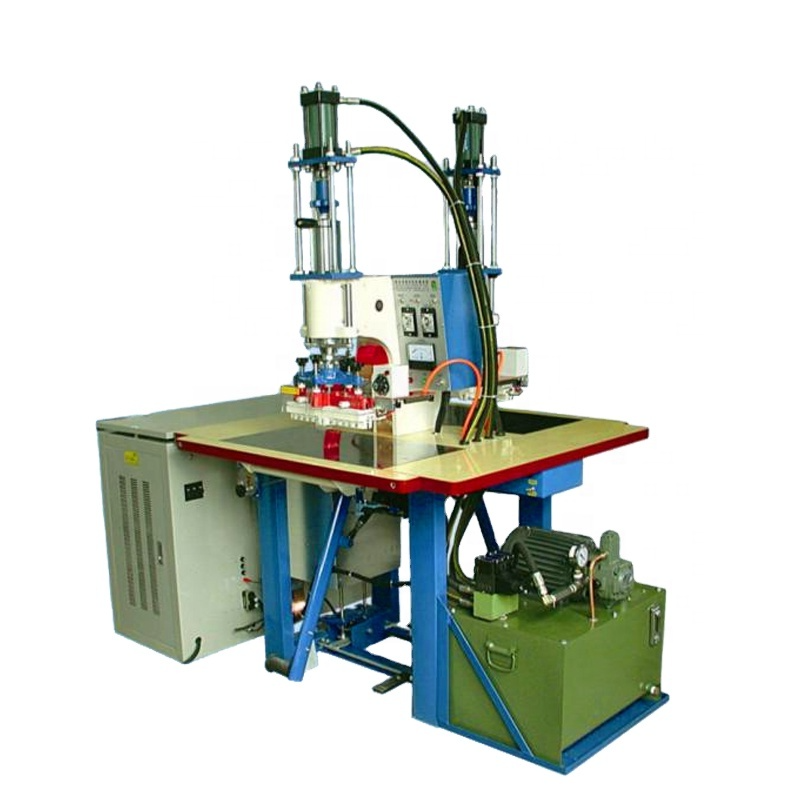

Double Head Hydraulic High Frequency Machine

1. Anti-spark machine. The anti-spark system can cut off the high frequency to minimize the impact towards the material and moulds at the same time,the alarm will alsolight in that case.

2. Jamming prevention device. Equipped with frequency stabilizer and high frequency magnetic leakage suppressor,this device previce leakage of electromagnetic radiation to anoid jamming other electrical instruments such as televisions and radios ,etc.
3. Safety device. When the current exceeds its limits,the overload relay functions automaticaly to protect oscillation tubes and rectifier,frequency deviation caused by misoperation is also prevented.
4. Mechanical structure of the special. Thanks to the excellent design and structure,our machine enjoy very fine precision and intensity.
5. Oil pressure device. This machine with hydraulic pressurizing device which can adjust the pressure if practical,greatly decrease the operation difficulty and improve equipments,change the controlling method may modify the high frequency processing technology.

Specification

Model	JY5000TY	JY8000TY	JY10000TY
Output Power	5KW	8KW	10KW
Voltage	AC 220/380/415/440V 3P 50/60HZ (Customized)
Input Power	8.5KVA	15KVA	18KVA
Oscillation Frequency	27.12MHz	27.12MHz	27.12MHz
Oscillation Tube	7T85RB	7T69RB	E3069
Anti-spark System	NL-5557	NL-5557	NL-5557
Max Pressure	1500kg	1500kg	1500kg
Gap Of Electrodes	80mm	80mm	80mm
Working Space	60mm	60mm	60mm
Size Of Workin g Table	350*700mm	350*700mm	350*700mm
Machine Size	165011001850mm	165011001850mm	165011001850mm
Machine Weight	440kg	630kg	830kg

Application

hot water bag, car visor welding and cutting, footwear, trademarks, leather bags, nameplate, logo, costume, gloves, outdoor products, PVC, PU, TPU leather embossing, PVC stretch ceiling, PVC umbrella, PVC bag, handbag, beach bag, stationery, inflatable toys, waterbed, Double PVC/PET blister package, PVC, PETG, GAG box die, urine bag, blood bag
and other medical bag, etc.
