Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DREAM-START
-
Model Number:
-
DR-D18
-
Product name:
-
M12 Connector
-
Keywords:
-
ip68 waterproof power connector
-
Certificate:
-
ISO9001
-
Rated Voltage:
-
250V
-
Rated Current:
-
10-12A
-
Contact resistance:
-
10 MΩ
-
Male Pin Diameter:
-
1.2mm
-
Female Pin Diameter:
-
1.0mm
-
Waterproof Level:
-
IP68
-
Wire Specifications:
-
24AWG---16AWG
Quick Details
-
Type:
-
male female
-
Application:
-
Electric Bike
-
Gender:
-
Male/Female
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DREAM-START
-
Model Number:
-
DR-D18
-
Product name:
-
M12 Connector
-
Keywords:
-
ip68 waterproof power connector
-
Certificate:
-
ISO9001
-
Rated Voltage:
-
250V
-
Rated Current:
-
10-12A
-
Contact resistance:
-
10 MΩ
-
Male Pin Diameter:
-
1.2mm
-
Female Pin Diameter:
-
1.0mm
-
Waterproof Level:
-
IP68
-
Wire Specifications:
-
24AWG---16AWG
Specification

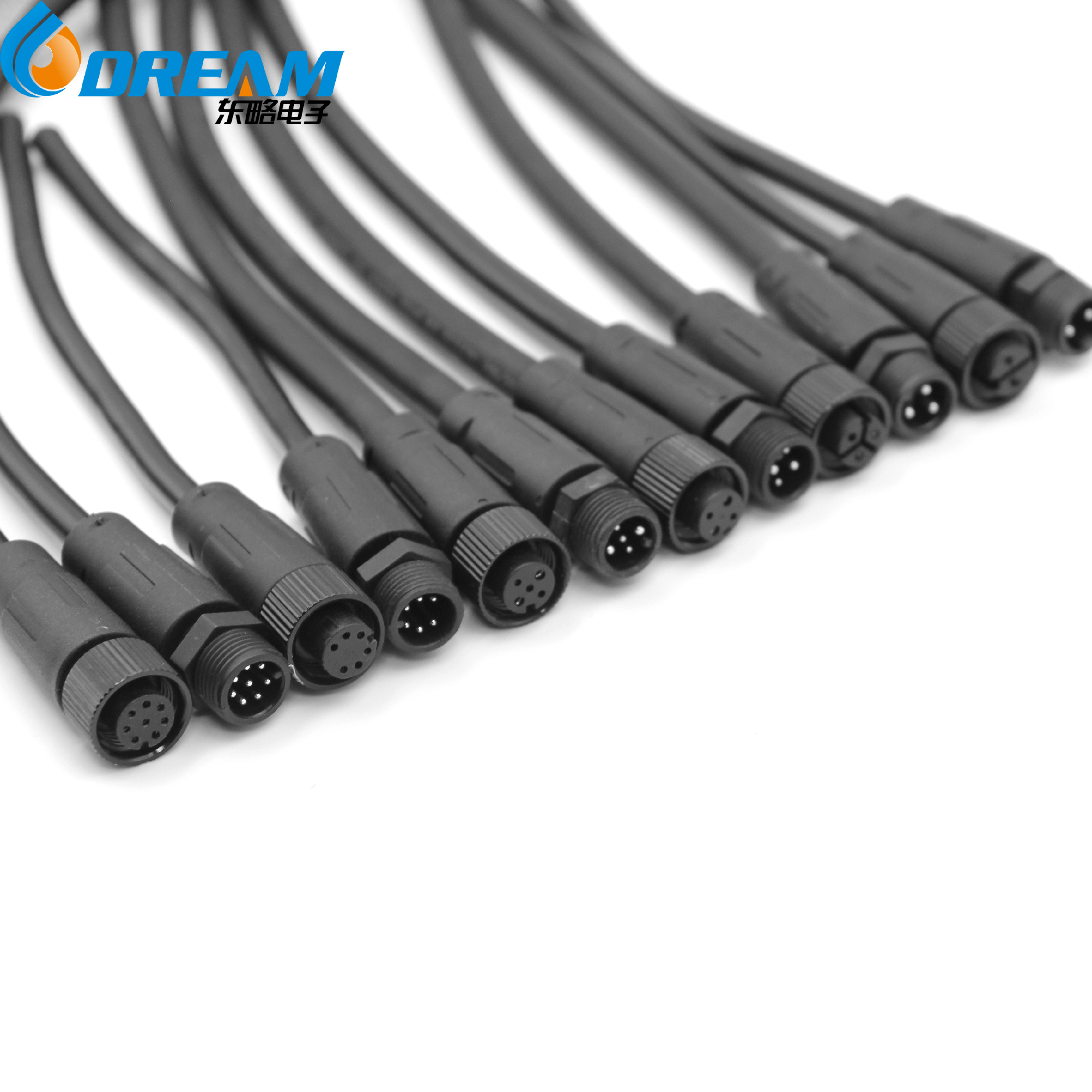

Factory M12 Treaded Screw Panel Mount Quick Lock 3 Pin Waterproof DC Plug with Dust Cover Cable IP68 Waterproof Power Connector
1. M12 metal nut type docking assembly, more exquisite and more durable;
2. Integrating current and signal transmission in one of the multi-functional comprehensive waterproof plug;
3. Metal nut locking makes a better tensile performance and better waterproof performance;
4. The male and female pins of gold-plated ensure the conducting performance's stability, safe and reliable;
5. IP68 Waterproof Power Connector Mainly used for upscale lighting accessories lines and other upscale products.
|
Pins Number
|
Rated Current
|
Rated Voltage
|
Contact Resistance
|
Contact Resistance
|
IP-Code
|
Cable Specifications
|
Cable Range
|
|
2
|
8A
|
110V AC
|
10mΩ
|
200MΩ
|
IP67
|
≤1.0mm2
|
0-7.5mm
|
|
3
|
8A
|
110V AC
|
10mΩ
|
200MΩ
|
IP67
|
≤1.0mm2
|
0-7.5mm
|
|
4
|
5A
|
80V AC
|
10mΩ
|
200MΩ
|
IP67
|
≤0.75mm2
|
0-7.5mm
|
|
5
|
5A
|
80V AC
|
10mΩ
|
200MΩ
|
IP67
|
≤0.5mm2
|
0-7.5mm
|
|
6
|
4A
|
60V AC
|
10mΩ
|
200MΩ
|
IP67
|
≤0.5mm2
|
0-7.5mm
|
