Roll to Roll CO2 Galvanometer Label Laser Die Cutting Machine for Label Finishing

Roll to Roll CO2 Galvanometer Label Laser Die Cutting Machine for Label Finishing

FOB Reference Price: Get Latest Price

≥1 Sets

US $999999

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Cutting Area:: W350mm*L Unlimtied

Cutting Thickness:: 0.02-0.5mm

Control Software:: Golden Laser Software

Place of Origin:: Hubei, China

Brand Name:: Golden Laser

Weight (KG):: 3500 KG

Applicable Industries:: Printing & Package, Apparel, Industrial, Automotive, Abrasive, Electronics, Gaskets, Flexible Circuitry, RFID, Beauty Industry, Medical Industry, etc

Products handled:: Roll Fed

Certification:: CE

Quick Details

Laser Type:: CO2

Cutting Speed:: 0-120m/min

Cooling Mode:: WATER COOLING

Cutting Area:: W350mm*L Unlimtied

Cutting Thickness:: 0.02-0.5mm

Control Software:: Golden Laser Software

Place of Origin:: Hubei, China

Brand Name:: Golden Laser

Weight (KG):: 3500 KG

Applicable Industries:: Printing & Package, Apparel, Industrial, Automotive, Abrasive, Electronics, Gaskets, Flexible Circuitry, RFID, Beauty Industry, Medical Industry, etc

Products handled:: Roll Fed

Certification:: CE

NOTE: Different configurations have different prices. The price on Alibaba is NOT real price, please contact us to get the latest quotation. Thank you.;-)

Product Description

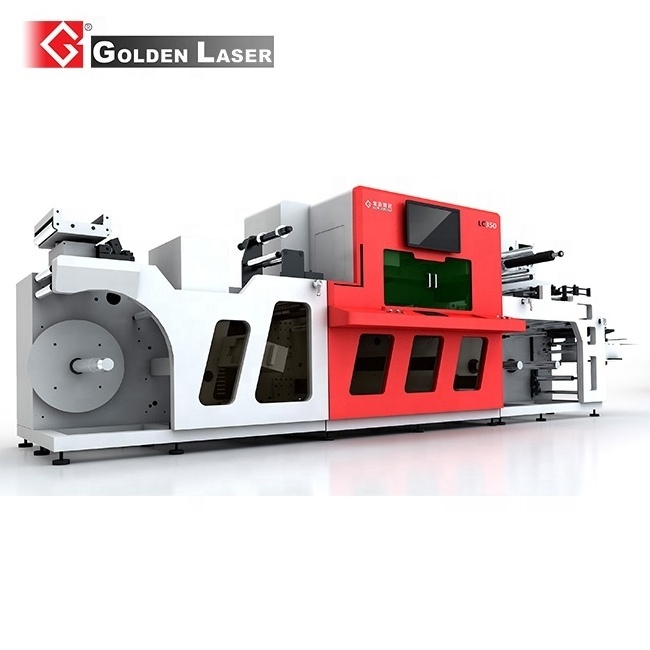

Roll to Roll Laser Die Cutting Machine

Golden Laser die cutting solutions have revolutionized the way that printers, converters, and printing application specialists run their business. The superiority of Golden Laser cutting systems are based on the sophisticated quality and depth control of software; tuned to handle the complexity of laser cutting behind the scenes and ultimately making an operator’s job minimal.

Now it’s time for you to consider using laser die cutting and giving your company an edge over the competition.

Specification

LC350 Technical Parameters
Max Cutting Width	350mm / 13.7”
Max Width of Feeding	370mm / 14.5”
Max Web Diameter	750mm / 29.5”
Max Web Speed	120m/min (Depending on laser power, material and cut pattern)
Accuracy	±0.1mm
Laser Type	CO2 RF laser
Laser Beam Positioning	Galvanometer
Laser Power	150W / 300W / 600W
Laser Power Output Range	5%-100%
Power Supply	380V 50Hz / 60Hz, Three phase
Dimensions	L3700 x W2000 x H 1820 (mm)

Features

__
* Superior laser cut quality thanks to the fully digital galvo system.
* The laser has an optional bar code reader for quick change over.
* No tooling required, simply upload the file to the Golden Laser Software and the LC350 laser will start working.
* No more ordering conventional tooling.
* Online support and remote diagnostics.

Why Golden Laser - Label Finishing Machine?
__
The Laser Die Cutting System by GoldenLaser allows manufacturers the freedom to add or remove components based on the complexity of their operations. Each of our laser die cutting systems are designed to add-on converting options, such as: Laminators, UV Coaters, Slitters, Sheeters, Rewinders, Part Extractors, etc. Additional benefits include:
* Increased Productivity
* Defect-free Cutting
* Tool-free Cutting
* Eliminate Layout Limitations

* Reduced Scrap Material Costs
* Reload Jobs in Minutes
* Consistent and Repeatable Cut-to-Print Registration
