Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Shouhan tact switch
-
Model Number:
-
TS66HTP SH-1102M IT-1102W
-
Item name:
-
momentary SMD micro tactile switch 6*6mm smd tact switch
-
Current Rating:
-
50mA
-
Voltage Rating:
-
12V DC
-
Operation Temperature:
-
-20℃ ~ +85℃
-
Operating force:
-
260±50gf
-
Contact Resistance:
-
50mΩ max
-
Insulation Resistance:
-
100mΩ min
-
Travel:
-
0.3±0.1mm
-
Mechanical Life:
-
100000 Cycles
-
Button color:
-
Black
Quick Details
-
Protection Level:
-
high level
-
Max. Current:
-
50mA
-
Max. Voltage:
-
12VDC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Shouhan tact switch
-
Model Number:
-
TS66HTP SH-1102M IT-1102W
-
Item name:
-
momentary SMD micro tactile switch 6*6mm smd tact switch
-
Current Rating:
-
50mA
-
Voltage Rating:
-
12V DC
-
Operation Temperature:
-
-20℃ ~ +85℃
-
Operating force:
-
260±50gf
-
Contact Resistance:
-
50mΩ max
-
Insulation Resistance:
-
100mΩ min
-
Travel:
-
0.3±0.1mm
-
Mechanical Life:
-
100000 Cycles
-
Button color:
-
Black

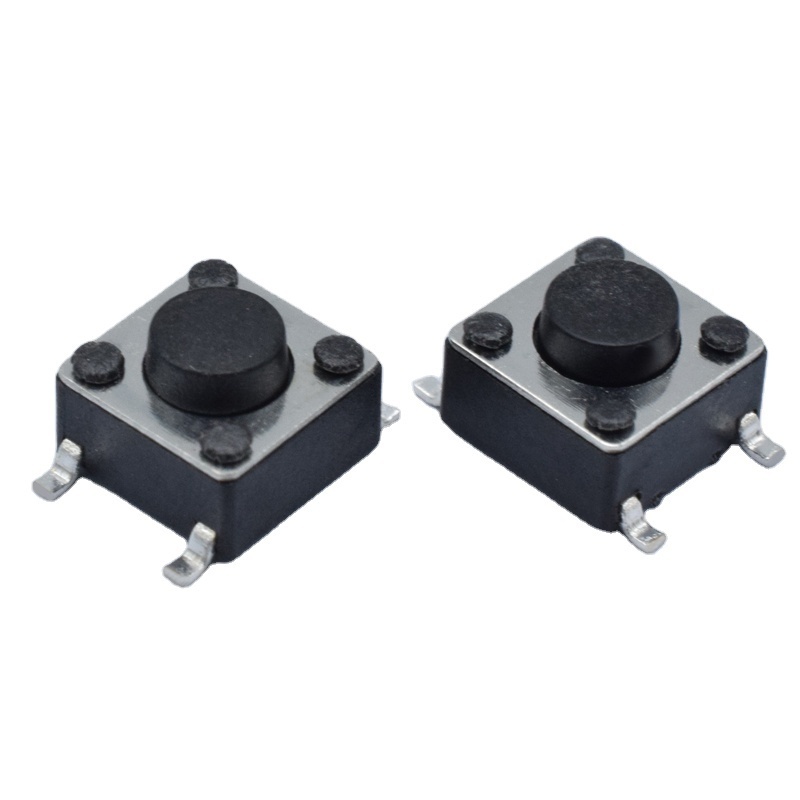

HOT SALE Tactile Switch 6*6*H SMD 4 Pin 8.0 mm foot spacing ON-OFF Momentary Switch Customize height SH-1102M
|
Product Name |
HOT SALE Tactile Switch 6*6*H SMD 4 Pin 8.0 mm foot spacing ON-OFF Momentary Switch Customize height |
|
Model |
6*6*H SMD tact switch |
|
Life |
100,000 cycles |
|
Insulation resistance |
100mΩ |
|
Temperature |
-20℃ to +85℃ |
|
Voltage |
12V DC |
|
Rated current |
0.05A |
