Quick Details
-
Positioning Accuracy (mm):
-
0.2 mm
-
Travel (X Axis)(mm):
-
1500 mm
-
Travel (Y Axis)(mm):
-
3000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Leedercnc
-
Voltage:
-
AC220V/380V-50HZ/60HZ
-
Dimension(L*W*H):
-
3100*2200*1900mm
-
Weight (KG):
-
1800
-
Product name:
-
Cnc Router Machine
-
Working area:
-
1500x3000x500mm
-
Spindle power:
-
3.0/4.5/6/x7KW
-
Inverter:
-
Fuling
-
Spindle type:
-
Water Cooling Spindle
-
Motor:
-
Servo Motor
-
Guide rail:
-
Taiwan Hiwin Square Guide Rail
-
Control system:
-
Nc-studio/Mach3/DSP Controller
-
Software:
-
Ucancam / ArtCam/TYPE3
-
Working Voltage:
-
AC220V/380V-50HZ/60HZ
Quick Details
-
Working Table Size(mm):
-
1500×3000
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
18000 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.2 mm
-
Travel (X Axis)(mm):
-
1500 mm
-
Travel (Y Axis)(mm):
-
3000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Leedercnc
-
Voltage:
-
AC220V/380V-50HZ/60HZ
-
Dimension(L*W*H):
-
3100*2200*1900mm
-
Weight (KG):
-
1800
-
Product name:
-
Cnc Router Machine
-
Working area:
-
1500x3000x500mm
-
Spindle power:
-
3.0/4.5/6/x7KW
-
Inverter:
-
Fuling
-
Spindle type:
-
Water Cooling Spindle
-
Motor:
-
Servo Motor
-
Guide rail:
-
Taiwan Hiwin Square Guide Rail
-
Control system:
-
Nc-studio/Mach3/DSP Controller
-
Software:
-
Ucancam / ArtCam/TYPE3
-
Working Voltage:
-
AC220V/380V-50HZ/60HZ
Products Description
Feature
# Adopt industrial heavy-duty structure design, ensure the strength and rigidity of the machine body.
# Split type structure, convenient for machine assemble and transportation.
# Large working area, enough for 4 axis or 5 axis working.
# Adopt Taiwan Hiwin/PMI high precision linear rail, moving smooth and high accuracy.
# High specifications, to ensure machine powerful performance
Application
# Woodworking: wooden door and furniture, windows, tables and chairs, cabinets and panels, 3D wave plate, MDF, computer desk, musical instruments,etc;
# Advertising: billboard, logo, sign, 3D characters cutting, acrylic cutting, LED/neon channel, literal-hole cut, lightbox
mold, stamp, mould, etc;
# Die industry: copper sculpture, aluminum engrave, metal molds, plastic sheeting, PVC, etc;
# Decoration: acrylic, density board, artificial stone, organic glass, soft metals like aluminum and copper.
# Advertising: billboard, logo, sign, 3D characters cutting, acrylic cutting, LED/neon channel, literal-hole cut, lightbox
mold, stamp, mould, etc;
# Die industry: copper sculpture, aluminum engrave, metal molds, plastic sheeting, PVC, etc;
# Decoration: acrylic, density board, artificial stone, organic glass, soft metals like aluminum and copper.
Working Sample

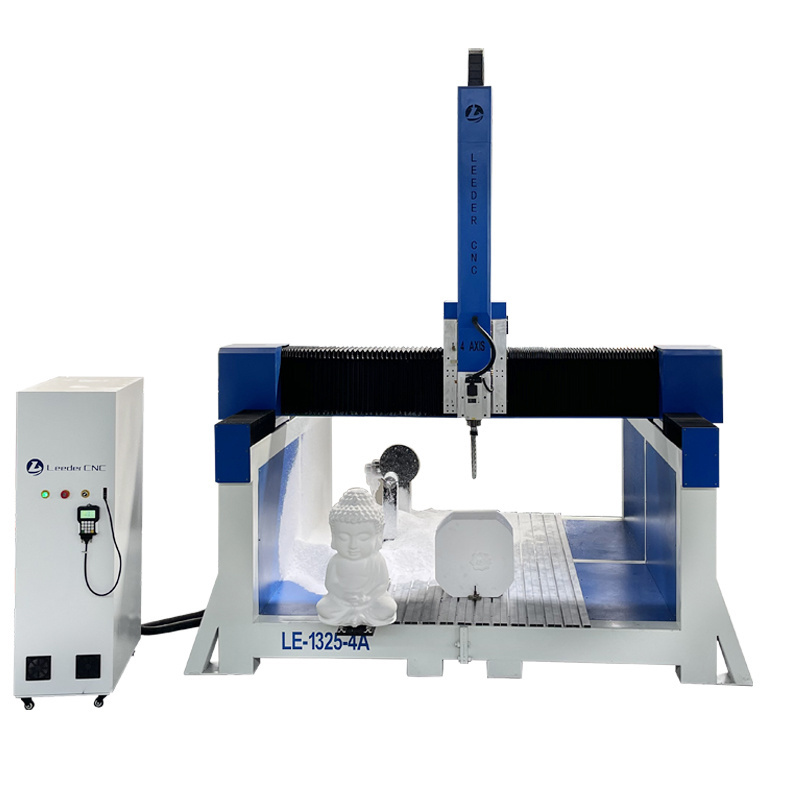

Details Images
Product Paramenters
|
ITEM
|
DESCRIPTION
|
|
Working area
|
1500x3000x500mm, can customize up to your demands.
|
|
Working table
|
T-slot aluminum / Vacuum
|
|
Spindle
|
4.5kw/ 6kw /9kw
|
|
Control system
|
NC Studio/ DSP/ MACH3/ LNC/ SYNTEC
|
|
Driving system
|
Servo motor and driver
|
|
Inverter
|
Fuling
|
|
Transmission system
|
XY-axis Rack gear, Z-axis ball screw
|
|
Guide rail
|
square Taiwan HIWIN
|
|
Tool setting
|
automatic
|
|
Lubrication
|
automatic
|
