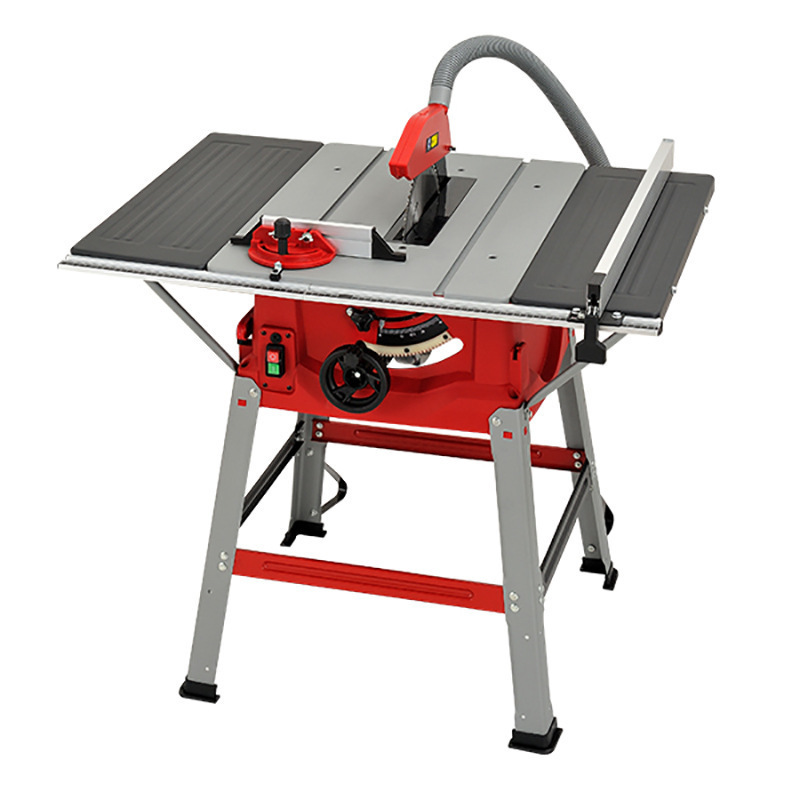

Wood Cutter Machine Saw Circular High Speed Sliding Table Saw Electric Motor Wood Saw Machine Mini Circular Saw with Table

Wood Cutter Machine Saw Circular High Speed Sliding Table Saw Electric Motor Wood Saw Machine Mini Circular Saw with Table

FOB Reference Price: Get Latest Price

≥1 Sets

US $129

≥5 Sets

US $119

≥10 Sets

US $109

≥30 Sets

US $89

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 220V/50HZ

Dimension(L*W*H):: 710*560*350mm

Application:: Factory, Forestry, Construction

Weight (KG):: 25 KG

Power (kW):: 1.8

Product name:: Wood Saw Wood Cut

Function:: Wood Cuting

Speed:: 5000r/min

Saw blade height:: 0-85mm

Saw blade size:: 255*25.4*2.8mm

Saw blade angle:: 0-45

Cutting depth:: 65-90mm

Quick Details

Place of Origin:: Henan, China

Brand Name:: IDEAL

Usage:: Woodworking / Metal cutting

Voltage:: 220V/50HZ

Dimension(L*W*H):: 710*560*350mm

Application:: Factory, Forestry, Construction

Weight (KG):: 25 KG

Power (kW):: 1.8

Product name:: Wood Saw Wood Cut

Function:: Wood Cuting

Speed:: 5000r/min

Saw blade height:: 0-85mm

Saw blade size:: 255*25.4*2.8mm

Saw blade angle:: 0-45

Cutting depth:: 65-90mm

Wood Cutter Machine Saw Circular High Speed Sliding Table Saw Electric Motor Wood Saw Machine Mini Circular Saw with Table

Powerful motor Can be used for high intensity work. Can be used with a vacuum cleaner for timely removal of wood chips. Two table extensions (can also be used as table width extension) for large cutting areas.

Products Description

Sliding table carriage and table standard. powerful 1800W induction motor. Long life TCT blade -315mm . Sturdy, powder -coated sheet steel design and galvanized table-top. Two Table length extension (could be used also as table width extension). Suction guard with suction hose. Height adjustment of saw blade continuously adjustable by a hand wheel. 2 handle and wheels for easy transport. Sturdy parallel guide/ripping fence.

Model	ID-WC180
Power	1800W-2400w
Voltage	220V/50HZ
Blade diameter	25525.42.8mm
Main table	650*487mm
Extension table	650*220mm
Total table	950*650mm
Speed	5000rpm
Cutting depth	90°-90mm 45°-65mm
Saw blade height	0-90mm
Saw blade angle	0-45°
Diameter of dust discharge port	35.5mm
Weight	24KG
Dimension	715635cm

Product Overview

Details Images

Large handwheel fast lift

Angle adjustment:

1. loosen the angle locking knob

2. move the adjusting handwheel so that the pointer is aligned with the angle to be cut

3. tighten the angle locking knob fine Adjustment:

1 press the big handwheel gently inward so that the big handwheel gears touch the black tooth row

2 then rotate the big handwheel for fine adjustment.

Electromagnetic switch design

Motor overload protection function: When the operation exceeds the amount of load during the cutting process, the machine will automatically power off to protect the motor from overheating or burning out.

Standard scale

Accurate cutting width positioning against the mountain, clear vernier scale to ensure accurate cutting

High strength support stand

Unique triangular anti-push down bracket design, anti-vibration support foot pad design to make the body more stable and more convenient to work.

Product packaging

Exporting package

1 unit was packed into an iron frame and then packed with 5 layers of corrugated carton. 4 strips reinforced the carton. the fix package guaranteed the machines were not damaged during transportation
