- Product Details
- {{item.text}}
Quick Details
-
Material:
-
silicone
-
Rated Voltage:
-
600V
-
Tensile Strength:
-
10.4Mpa
-
Shrinkable ratio:
-
1.7:1
-
Operating range:
-
-50℃-+200℃
-
Longitudinal shrinkage:
-
≤5%
-
Flammability:
-
VW-1
-
Standard color:
-
Black,Grey
-
Certification:
-
ROHS
-
Cutting tool:
-
Heat Gun,Oven
-
Sample:
-
Free
-
packing:
-
upon request
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JDDTECH
-
Model Number:
-
MGJS
-
Material:
-
silicone
-
Rated Voltage:
-
600V
-
Tensile Strength:
-
10.4Mpa
-
Shrinkable ratio:
-
1.7:1
-
Operating range:
-
-50℃-+200℃
-
Longitudinal shrinkage:
-
≤5%
-
Flammability:
-
VW-1
-
Standard color:
-
Black,Grey
-
Certification:
-
ROHS
-
Cutting tool:
-
Heat Gun,Oven
-
Sample:
-
Free
-
packing:
-
upon request
Product Description

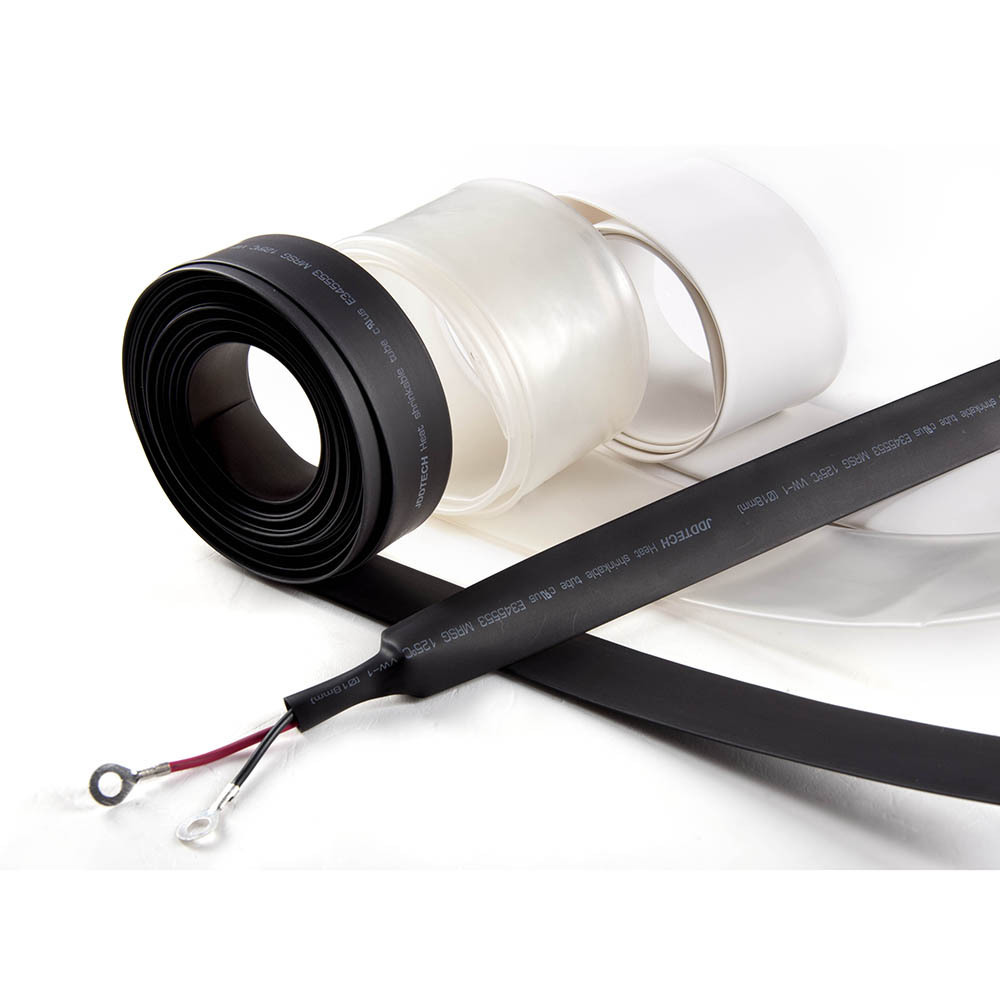

JDD-MGJS Silicone heat shrinkable tube consist of silicone rubber which provides good typical properties of silicone including high and low temperature resistance, chemical resistance , excellent weatheralility. It is perfectly used for cable insulation or bundling.
Application:
It is generally used in medical equipments, home appliances , aerospace, military, automobile manufacturing, electronic components, transformers, motors, cables insulation etc. where extreme physical strength and/or resistance to extremes of temperature are required.
Technical data:
Shrink ratio: 1.7:1
Working temperature: -50℃~+200℃
Longitudinal shrinkage: ≤ 5%
Color: Grey / black
Tool: Heat-gun, oven
Approval : RoHS
|
Part No. |
As supplied (mm) |
After recovery |
Packing (L) |
||
|
I.D. |
Wall thickness |
I.D. |
Wall thickness |
||
|
MGJS-00 1 |
1 |
0.80±0.15 |
≤0.6 |
1.1±0.15 |
200M |
|
MGJS-002 |
2 |
0.80±0.15 |
≤1.2 |
1.1±0.15 |
200M |
|
MGJS-003 |
3 |
0.80±0.15 |
≤1.8 |
1.1±0.15 |
200M |
|
MGJS-004 |
4 |
0.80±0.15 |
≤2.5 |
1.1±0.15 |
200M |
|
MGJS-005 |
5 |
0.80±0.15 |
≤3.0 |
1.1±0.15 |
100M |
|
MGJS-006 |
6 |
0.80±0.15 |
≤3.8 |
1.1±0.15 |
100M |
|
MGJS-007 |
7 |
0.80±0.15 |
≤4.0 |
1.1±0.15 |
100M |
|
MGJS-008 |
8 |
0.80±0.15 |
≤4.8 |
1.1±0.15 |
100M |
|
MGJS-009 |
9 |
0.80±0.15 |
≤5.0 |
1.1±0.15 |
100M |
|
MGJS-0 10 |
10 |
1.5±0.15 |
≤6.5 |
2.5±0.15 |
50M |
|
MGJS-012 |
12 |
1.5±0.15 |
≤7.0 |
2.5±0.15 |
50M |
|
MGJS-015 |
15 |
1.5±0.15 |
≤9.0 |
2.5±0.15 |
50M |
|
MGJS-020 |
20 |
1.5±0.15 |
≤13 |
2.5±0.15 |
25M |
|
MGJS-025 |
25 |
1.5±0.15 |
≤15 |
2.5±0.15 |
25M |
|
MGJS-030 |
30 |
1.5±0.15 |
≤18 |
2.5±0.15 |
25M |
|
MGJS-035 |
35 |
1.5±0.15 |
≤20 |
2.5±0.15 |
25M |
|
MGJS-040 |
40 |
1.5±0.15 |
≤25 |
2.5±0.15 |
25M |
Notes:
1. The part No. will be followed with BK, GR and so on to indicate the color of sleeving.
2. Special packing, sizes, and colors can be supplied upon request.
3. All numerical data are average or typical values, not including customized sizes.
