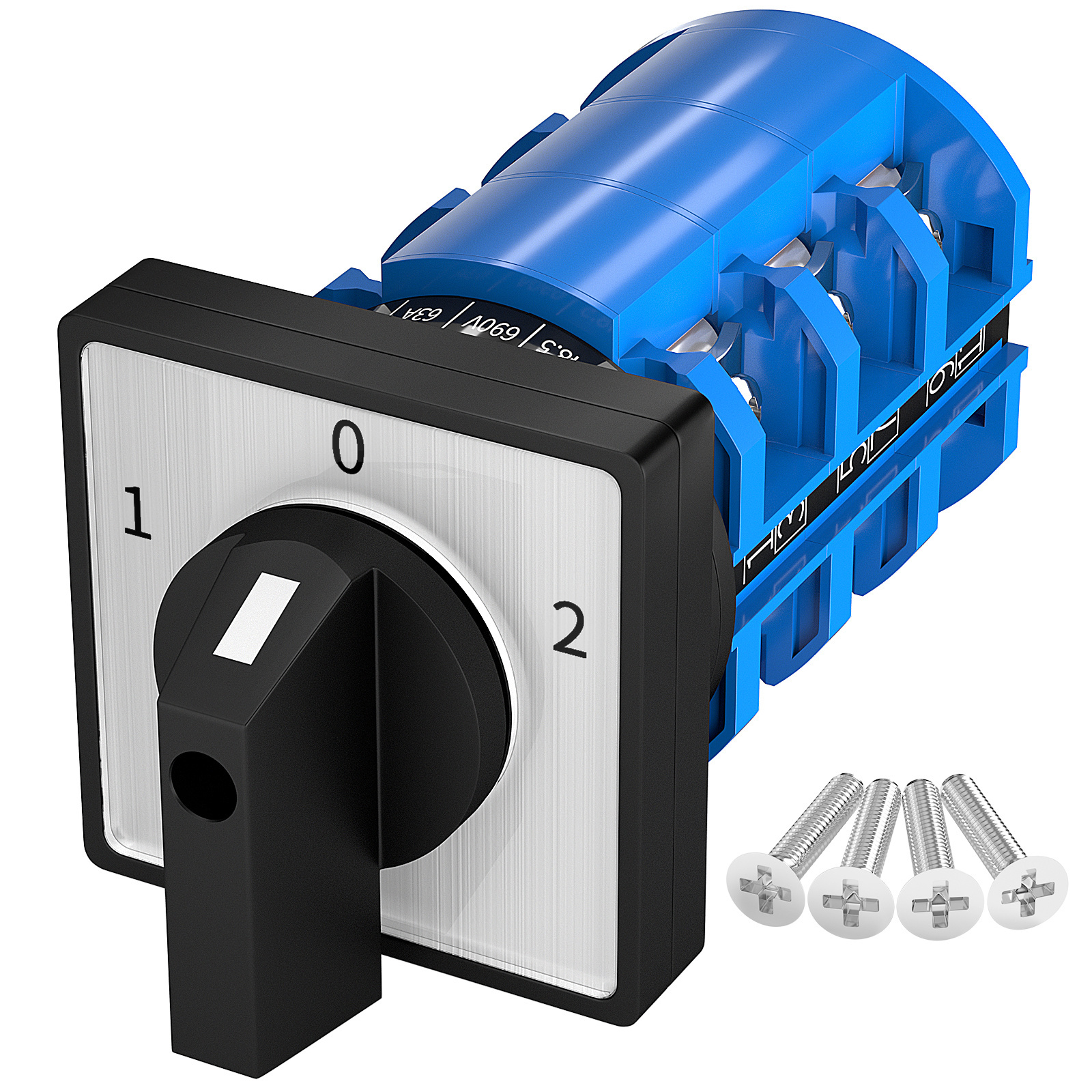

* Switch Type: Rotary switch 3 position 12 terminals, latching ON/OFF/ON (1-0-2) design.
* Specification: Ui: 690V, Ith: 63A, Ue: 440V AC.
* Overall Dimention: Panel Size: 65 x 65 MM, Length x Wide x Height: 65mm x 65mm x 132mm.
* Contact & Terminals: Highly conductive and high quality silver alloy contact and copper terminal.
* What is Included: 1 x Changeover Switch, 4 x Mounting Screws, 1 year warranty. Feel free to contact us if you have any questions with the items, we will respond you within 24 hours.
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Daiertek
-
Model Number:
-
LW26-63/3
-
Max. Current:
-
63A
-
Mechanical Life:
-
10000 Cycles
-
Product Type:
-
Rotary Switch
-
Position:
-
3 Position
-
Function:
-
ON-OFF-ON
-
Rating:
-
63A 690VAC
-
Contact Material:
-
Silver
-
Material:
-
Copper
-
Mounting Type:
-
Panel Mount
-
Panel Size:
-
65 x 65 MM
-
Type Of Shaft:
-
Rotary
-
Electrical Life:
-
100,000Cycles
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
440VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Daiertek
-
Model Number:
-
LW26-63/3
-
Max. Current:
-
63A
-
Mechanical Life:
-
10000 Cycles
-
Product Type:
-
Rotary Switch
-
Position:
-
3 Position
-
Function:
-
ON-OFF-ON
-
Rating:
-
63A 690VAC
-
Contact Material:
-
Silver
-
Material:
-
Copper
-
Mounting Type:
-
Panel Mount
-
Panel Size:
-
65 x 65 MM
-
Type Of Shaft:
-
Rotary
-
Electrical Life:
-
100,000Cycles
PRODUCT DESCRIPTION
|
ltem
|
Daiertek AC 660V 63A Rotary Cam Selector Switch ON/OFF/ON 3 Position Latching Universal Changeover Switch With 12 Terminals
|
|
|
||
|
Rating
|
Ui: 690V, Ith: 63A, Ue: 440V AC
|
|
|
||
|
Mounting Type
|
Panel Mount
|
|
|
||
|
Panel Size
|
65 x 65 MM
|
|
|
||
|
Contact Resistance
|
< 20mΩ
|
|
|
||
|
Insulation Resistance
|
500VDC 1000MΩ Minute
|
|
|
||
|
Dielectric Strength
|
1000VAC, 1 Minute
|
|
|
||
|
Operating Temperature
|
0℃~+100℃
|
|
|
||
PRODUCT DETAILS
LW26-63/3
