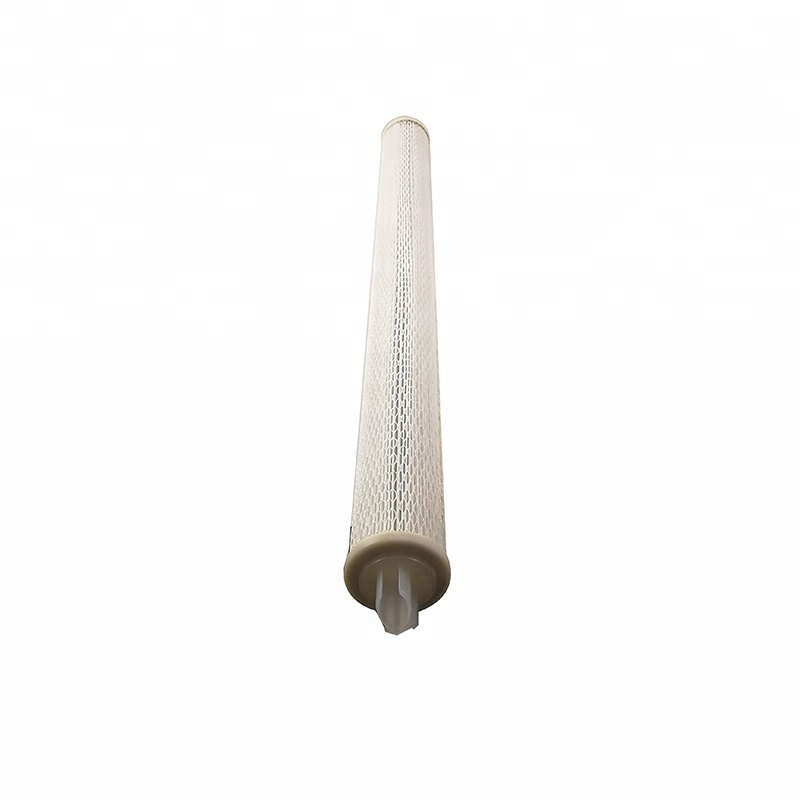

Replace PECO Glycol fine filter PS-336-CC-20- LB, pp membrane micron cartridge filter

Replace PECO Glycol fine filter PS-336-CC-20- LB, pp membrane micron cartridge filter

FOB Reference Price: Get Latest Price

≥10 Pieces

US $19

≥500 Pieces

US $16

≥8000 Pieces

US $10

≥100000 Pieces

US $5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimension(L*W*H):: OD3'' L36''

Weight:: 0.3 kg

Material:: pp

Removal ratings:: 0.5μm --120 μm

Color:: white

Maximum operating temperature:: 60℃

Maximum differential pressure:: 3.4Bar,60℃

Sealing ring:: EPR ,NBR

Custom design:: yes

Inner frame:: carbon steel

End cap:: 226/fins

Stype:: layer

Quick Details

Core Components:: pp filter

Place of Origin:: Henan, China

Brand Name:: HUAHANG

Dimension(L*W*H):: OD3'' L36''

Weight:: 0.3 kg

Material:: pp

Removal ratings:: 0.5μm --120 μm

Color:: white

Maximum operating temperature:: 60℃

Maximum differential pressure:: 3.4Bar,60℃

Sealing ring:: EPR ,NBR

Custom design:: yes

Inner frame:: carbon steel

End cap:: 226/fins

Stype:: layer

Product Description

Outside Diameter 3'' Length"10" 20" 30" 40" 50" 60" 70"

Weight(20") :0.7kg Removal Rating : 1~100μm

Filter Media: PP pleated filber glass melt blown pp End Cap: reinforced PP

Seal Material: Silicon EPDM NBR Viton Core: PP

Maximum Operating Pressure 3.4 Bar 80°C 1.03Bar 65°C 3.4Bar 120°C

Maximum operating reverse pressure 2.0Bar 25°C

suggested maximum flow rate: 20" 660L/M 40" 1300L/M 60" 1900L/M

Maximum Operating Temperature 3.4bar 80°C(pp pleated) 1.0bar 65°C (melt blown pleated) 3.4bar 120°C(fiberglass pleated)

Performance features

1.The entire PP structure, effectively avoid dissolved matter.

2.With widely chemical compatibility, it is suitable for most acid, alkali and solvent filter requirements.

3.Multi-layer filter structure, high pollutant holding capacity, long durability.

4.The high accuracy PP membrane makes sure filter effectiveness.

Usage

Glycol fine filter, for further maintenance of the low-temperature gas separation

Top Cap

Bottom Cap

More model PECO item No.for you choiced as below:

00-022314 3010 PS-1401-IC-30ELB
00-022318 3011 PS209AC02LB
00-022319 3012 PS-210-AC-70-LB
00-022342 3142 GSKT PS-219-AC-20-LB
00-022363 318C10 PS220A3C02LB
00-022378 31FG536 PS220AC02FB
00-022380 3286 PS-220-AC-05E
00-022402 3330 PS-220-AC-05-EP
00-022414 3352 PS220X3C00LB
00-022416 3369 PS220X3C02LB
00-022420 3382 PS-229-AC-05-EB
00-022421 3466 PS-229-AC-20-EE
00-022423 3468 PS230AC02LB
00-022425 3475 GSKT PS230AC10LB
00-022426 3542 PS-230-AC-10-LB
00-022439 3558 PS-230-AC-20-LB
00-022440 3560 PS-230-AC-30-LB
00-022441 3565 PS-230-AW-01-LB
00-022442 3578 PS-230-E5C-20-LB
00-022445 3611 PS230FC10LB
00-022448 3612 PS-230-FC-10-LB
00-022449 3613 PS230FC10LB,
00-023040 3614 PS-230-S1C-00-FB
00-027002 3616 PS230-S1C05EB
00-027116 3625 PS-230-S1C-10-EB
00-027157 3626 PS-230-S2C-05-LB
00-027288 3627 PS239AC10LB
00-027440 3628 PS-240-AC-05-LB
00-027669 3629 PS240AC10LB
00-027673 3630 PS240R7C05EV
00-027687 3631 PS240-SIC-20EB
00-027973 3640 PS-240-XC-10-LE
00-027974 3641 PS-336-S1C-02-EB
00-027975 3643 PS336S1C10LB
00-027976 3644 PS-5519-5
00-027978 3645 PS-559-10
00-027983 3646 PS644MIC20LB
00-027990 3663 PS-FG-336-10
00-027992 3664 PS-FG-336-5
