Quick Details
-
CaO Content (%):
-
-
-
CrO Content (%):
-
-
-
SiC Content (%):
-
-
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
KERUI
-
Size:
-
Size Customized
Quick Details
-
SiO2 Content (%):
-
-
-
Al2O3 Content (%):
-
-
-
MgO Content (%):
-
-
-
CaO Content (%):
-
-
-
CrO Content (%):
-
-
-
SiC Content (%):
-
-
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
KERUI
-
Size:
-
Size Customized

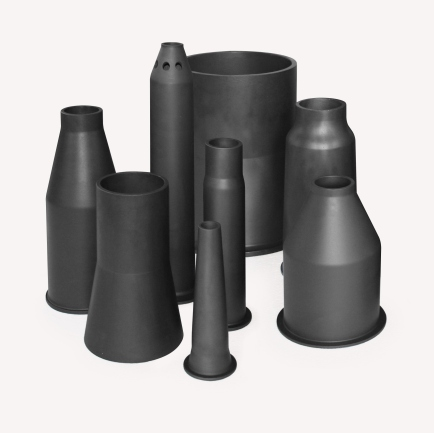

RBSIC/SiSiC Silicon Carbide Products
RBSIC / SiSiC silicon carbide products are made from high-purity, fine-grained silicon carbide materials. We offer a wide range of silicon carbide products, including shelves, batts, supports, beams, and tubes, which can be customized to meet the specific needs of our customers.
|
Item
|
|
Index
|
|
|
Max Temperature of Application, °C
|
|
1380
|
|
|
Bulk Density, kg/m³
|
>
|
3.02
|
|
|
Open Porosity, %
|
<
|
0.1
|
|
|
Bonding Strength, Mpa
|
|
250Mpa (20°C)
|
|
|
|
|
280Mpa (1200°C)
|
|
|
Modulus of Elastlctiy, GPa
|
|
330GPa (20°C)
|
|
|
|
|
300GPa (1200°C)
|
|
|
Thermal Conductivity, W/m.k
|
|
45 (1200°C)
|
|
|
Coefficient of Thermal Expanslon, K *10
|
|
4.5
|
|
|
Moh' s Hardness
|
|
9.15
|
|
|
Vickers Hardness HV, GPa
|
|
20
|
|
|
Acid Alkaline-proof
|
|
Excellent
|
|
Technical Date：
|
Item
|
RSIC
|
|
Contents
|
SiC≥99%
|
|
Bulk Density, g.cm-³
|
2.65-2.75
|
|
Apparent Porosity, %
|
< 15
|
|
Modulus of Ruture at 20°C, Mpa
|
90-100
|
|
Modulus of Rupture at 1200°C, Mpa
|
100-110
|
|
Hardness at 20°C, Kg/mm²
|
1800-2000
|
|
Fracture Toughness at 20°C, Mpa*M½
|
1.8-2.0
|
|
Thermal Conductivity at 1200°C, W/m.k
|
35-36
|
|
Thermal Expansion at 20-1200°C, 1x10 */°C
|
4.6
|
|
Thermal Shock Resistance at 1200°C
|
Very good
|
|
Max.working Temperature
|
1650°C
|
Minimal Thermal Expansion
Strong Chemical Resistance
High Temperature Stability
Uniform Heat Distribution
RBSIC / SiSiC silicon carbide products
Silicon carbide SiC plates Features:
1.
Excellent Thermal Shock Characteristics
2.
Corrosion Resistance
3.
As Cast Tight Dimensional Tolerances
4.
High Creep Resistance
5.
Superior Wear Resistance
6.
High strength, extreme hardness,wear resistance, high temperature tolerance, corrosion resistance, oxidation resistance,thermal shock resistance, high thermal conductivity, low coefficient of thermal expansion, creep resistance under high temperature and so on.
SiC refractory plate Specification：
1.
high mechanical strength
2.
High temperature
3.
High thermal conductivity.
4.
98% purity
Silicon carbide SiC plates Benefits:
1.
Superior Oxidation Resistance
2.
Improved Performance
3.
Lowered Cost Burden
4.
Longer Life Between Replacement/Rebuilds
5.
Allows Lower Weight
6.
Very High Thermal Conductivity
Application：
1.
Application in non-ferrous metal smelting industry
Silicon carbide is used as a high-temperature indirect heating material with high strength, good thermal conductivity, and impact resistance, such as a solid-fill distillation furnace. Distillation furnace trays, aluminum electrolytic cells, copper melting furnace linings, arc plates for zinc powder furnaces, thermocouple protection tubes, etc.
2.
Application in steel industry
Utilize the corrosion resistance, thermal shock resistance and wear resistance of silicon carbide. It has good thermal conductivity and can be used for lining large blast furnaces to extend its service life.
3.
Application in metallurgical mineral processing industry
The hardness of silicon carbide is second only to diamond, and it has strong wear resistance. It is an ideal material for wear-resistant pipes, impellers, pump chambers, cyclones, and hopper linings. The most wear-resistant property is cast iron, and the service life of rubber is 5 -20 times, it is also one of the ideal materials for aviation runways.
4.
Applications in construction ceramics and grinding wheel industry
Take advantage of its thermal conductivity. Thermal radiation, high thermal intensity, manufacturing thin plate kiln furniture can not only reduce the capacity of the kiln furniture, but also improve the filling capacity of the kiln and product quality, shorten the production cycle, and is an ideal indirect material for ceramic glaze baking and sintering.
5.
Applications in energy saving
Utilizing good thermal conductivity and thermal stability as a heat exchanger, fuel consumption can be reduced by 20%, fuel can be saved by 35%, and productivity can be increased by 20-30%. In particular, the wear resistance of the discharge pipelines used in mine dressing plants is 6-7 times that of ordinary wear-resistant materials.
RBSIC / SiSiC silicon carbide products are made from high-purity, fine-grained silicon carbide materials. We offer a wide range of silicon carbide products, including shelves, batts, supports, beams, and tubes, which can be customized to meet the specific needs of our customers.
Zhengzhou Kerui Industrial Development Co., Ltd.
Zhengzhou Kerui Industrial Development Co., Ltd. is a branch of Zhengzhou Kerui (Group) Refractory Co., Ltd.. We provide all types of refractory products, including refractory bricks and materials, insulation bricks and materials, kiln shelves and new materials, etc. Kerui Refractory is located in the largest refractory industry zone: Chaohua Town, Xinmi City, Henan Province, China.
Founded in 2004, Kerui Refractory is an international high-tech enterprise integrating R&D and innovation, manufacturing,
solutions and service of high-performance refractory products. Kerui places great importance on R&D. In the past decades, we have obtained one invention patent certificate and more than 20 utility model patent certificates. Kerui insists on technological innovation to provide customers with better products.
Founded in 2004, Kerui Refractory is an international high-tech enterprise integrating R&D and innovation, manufacturing,
solutions and service of high-performance refractory products. Kerui places great importance on R&D. In the past decades, we have obtained one invention patent certificate and more than 20 utility model patent certificates. Kerui insists on technological innovation to provide customers with better products.
Professional R&D Team
Kerui own 50000m² factory ，R&D、production、sales、delivery as one,fully equipped,own patents,support customization.
Professional Sales Team
Kerui has its own sales and service team, proficient in foreign languages, instant communication with customers and can solve customer problems at first time.
Professional Solutions
Kerui has EPC capability, can undertake customer projects, has professional technical experts, according to customer needs to develop the most perfect plan.
Professional After-sale Team
Kerui has its own professional after-sales team, once the customer has any technical problems, it can respond and solve within 1 hour.
Cooperate Partner
Kerui have more than 20 years of technology city store, has supplied Nanshan Copper, Shenhuo Group, Weiqiao aluminum power and other domestic 500 enterprises, quality assurance, honor first.
Kerui Group
Founded in 2004 with a registered capital of 81.8 million Yuan, Zhengzhou Kerui Refractory Material Co. , Ltd. is located in the refractory industry base of Chaohua town, Xinmi Province, After 20 year’s hard work and tenacious struggle , we walked out of a“Product oriented, service first” healthy and rapid development of the road, has developed into a Refractory r & D, production, sales, Product Technology Solutions, Project EPC general contracting services in one of the modern integrated enterprise group.
Testing
- High-temperature reheating/load softening creep test furnace;
- Compressive/flexural strength testing bench for refractory materials;
- Composition testing and inspection platform for refractory materials;
- Laboratory for physical/chemical properties of refractory materials.
- High-temperature reheating/load softening creep test furnace;
- Compressive/flexural strength testing bench for refractory materials;
- Composition testing and inspection platform for refractory materials;
- Laboratory for physical/chemical properties of refractory materials.
Service
- Customized comprehensive solution service;
- Drawing design and materials combination solution;
- Professional construction team;
- Professional after-sales team support and lifetime guarantee;
- Customized comprehensive solution service;
- Drawing design and materials combination solution;
- Professional construction team;
- Professional after-sales team support and lifetime guarantee;
