Factory Price Merv 8 11 F6 F7 AC 20x20x1 Air Conditioner Air Filter with Cardboard Frame High Quality

FOB Reference Price: Get Latest Price

≥1 Pieces

US $2.16

≥100 Pieces

US $1.98

Free Inquiry

Customized Request

Quick Details

Application:: Prefilters for Commercial and Industrial AHU or New Air System

Application:: Prefilters for Commercial and Industrial AHU or New Air System

Product Description

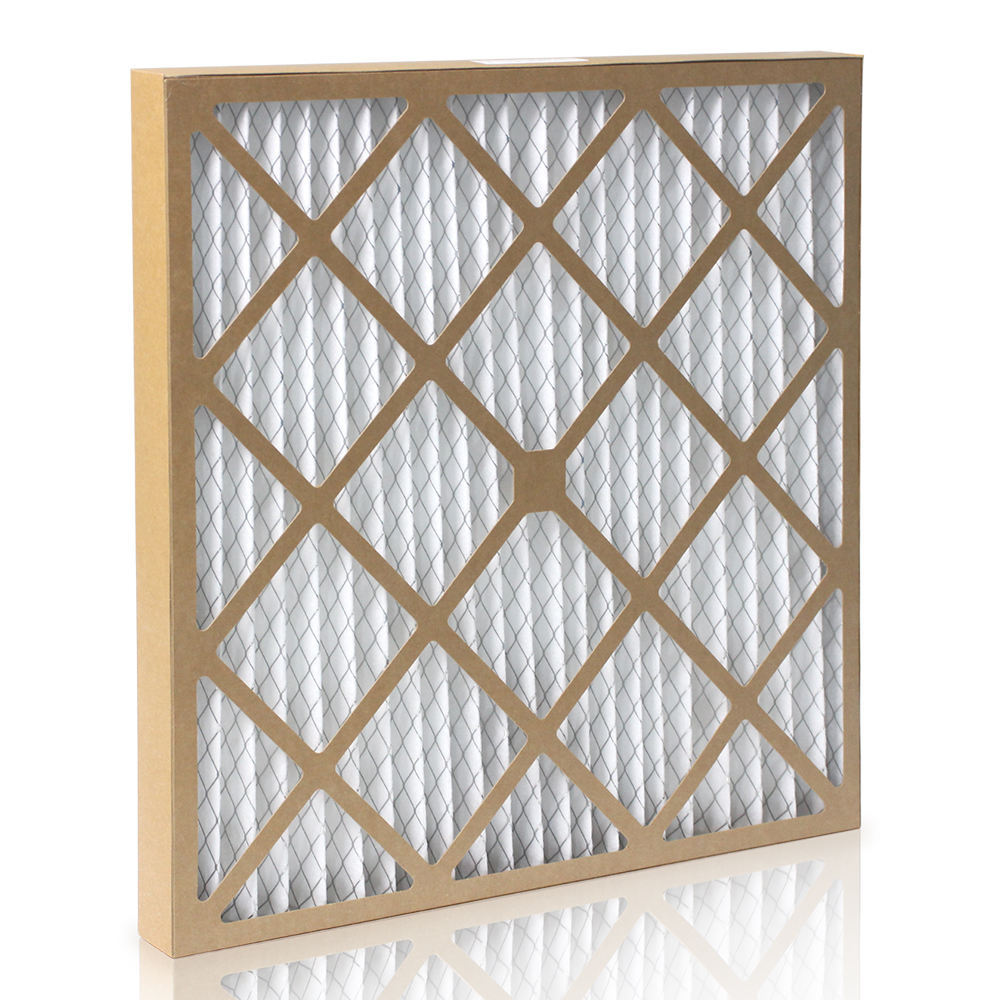

Frame : Rigid water resistant cardboard.

Filter marterial: Flame retardant synthetic fibers, filter material air surface covered with metal mesh support, sturdy construction.

Efficiency: (EN779:2002filter class)G4,(ASHRAE52.2:2007filter class)MERV8

The recommended final pressure drop is 250 Pa

Temperature ： The maximum temperature is seventy degrees when used continuously

Nominal Size	Actual Size	Efficiency	Nominal Air Volume	Initial resistance under different air volumes				Recommended Finish Resistance
(Inches)	(mm)	ML-C	(M3/h)	(Pa)			(Pa)
W×H×D				70%	100%	120%	250
12 × 24 × 2	290 × 595 × 46	G2	1700	45	70	100
20 × 24 × 2	490 × 595 × 46	G2	2800	45	70	100
24 × 24 × 2	595 × 595 × 46	G2	3400	45	70	100
12 × 24 × 2	290 × 595 × 46	G3	1700	65	95	135
20 × 24 × 2	490 × 595 × 46	G3	2800	65	95	135
24 × 24 × 2	595 × 595 × 46	G3	3400	65	95	135
12 × 24 × 2	290 × 595 × 46	G4	1700	85	130	175
20 × 24 × 2	490 × 595 × 46	G4	2800	85	130	175
24 × 24 × 2	595 × 595 × 46	G4	3400	85	130	175
