Quick Details
Quick Details
-
Place of Origin:
-
Shandong, China
-
COLOR:
-
Customized Option
Application

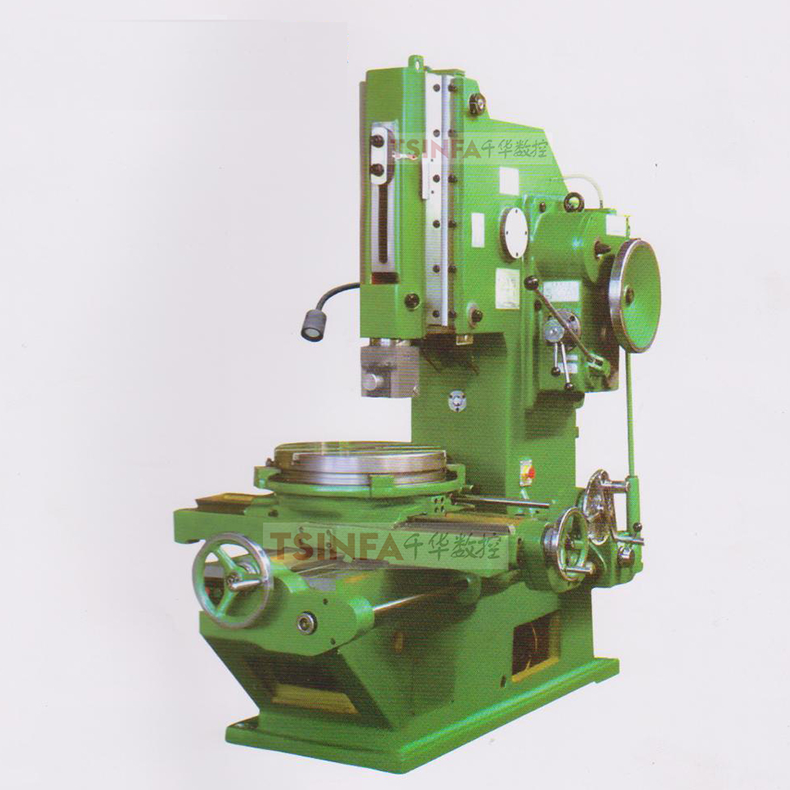

This machine tool is used for cutting plane, forming surface and keyway, and can insert working objects such as dies with inclination of 10 degrees. It is suitable for single or small batch production enterprises.
Main Feature
The table of the machine tool is provided with three different directions of feed (longitudinal, horizontal and rotary), therefore work object go through once clamping, Several surfaces in the machine tool machining .
Hydraulic transmission mechanism with sliding pillow reciprocating motion and hydraulic feed device for working table.
The sliding pillow has the same speed in every stroke, and the movement speed of the ram and the working table can be adjusted continuously.
Hydraulic control table have ram commutation oil for oil reversing mechanism, In addition to hydraulic and manual feed outer, Even there single motor drive vertical, horizontal and rotary fast moving.
Use hydraulic feed the slotting machine, Is when the work is over turning back instantaneous feed, Therefore be better than mechanical slotting machine used drum wheel feed.
Specification
| Model | Units | TB520 | TB530 |
| Max.slotting length | mm | 200 | 320 |
| Max.dimensions of wodplece (L*H) | mm | 600*220 | 600*320 |
| Max.weight of workpiece | kg | 500 | 500 |
| Max.cutting force | N | 7500 | 7500 |
| No.of strokes per minutem | r.p.m | 32.50.80.125 | 20.32.50.80 |
| Vertical ajustment of ram | mm | 230 | 315 |
| Inclination of ram | ° | 0-8 | 0-8 |
| Distance between tool holdingsurface and column front | mm | 485 | 600 |
| Max.tool shank size (W*H) | mm | 25*40 | 25*40 |
| Table diameter | mm | 500 | 630 |
| Distance between table surface and low end of ram | mm | 320 | 490 |
| Max.longitudinal travel of table | mm | 480/500 | 480/630 |
| Max.cross travel of table | mm | 480/500 | 480/560 |
| Max.Rotary angle of table | ° | ±360° | ±360° |
| Range of table longitudinal and cross power feeds | mm | 0.08-1.21 | 0.08-1.21 |
| Range of table power feeds | 0.052-0.783 | 0.052-0.783 | |
| Power of rapid drive motor | kw | 3 | 4 |
| Rotating speed of main drive motor | r.p.m | 1430 | 960 |
| Overall dimensions (L*W*H) | mm | 1916*1305*1995 | 2180*1505*2285 |
| Weight(approx) | kg | 2200 | 3500 |
