Quick Details
-
Reading Distance:
-
5-10CM
-
Input voltage:
-
DC12V
-
Output format:
-
Wiegand 26 standard format
-
Waterproof:
-
Ip65
-
Operating Humidity:
-
10% to 90% relative humidity non-condensing
-
Material:
-
ABS+PC with texture
-
Beeper:
-
Yes
-
Dimension:
-
86*85*18mm
Quick Details
-
Place of Origin:
-
Guangdong, China
-
card reader with pin keyboard:
-
Black
-
Reading Mode:
-
125KHZ EM Card
-
Reading Distance:
-
5-10CM
-
Input voltage:
-
DC12V
-
Output format:
-
Wiegand 26 standard format
-
Waterproof:
-
Ip65
-
Operating Humidity:
-
10% to 90% relative humidity non-condensing
-
Material:
-
ABS+PC with texture
-
Beeper:
-
Yes
-
Dimension:
-
86*85*18mm

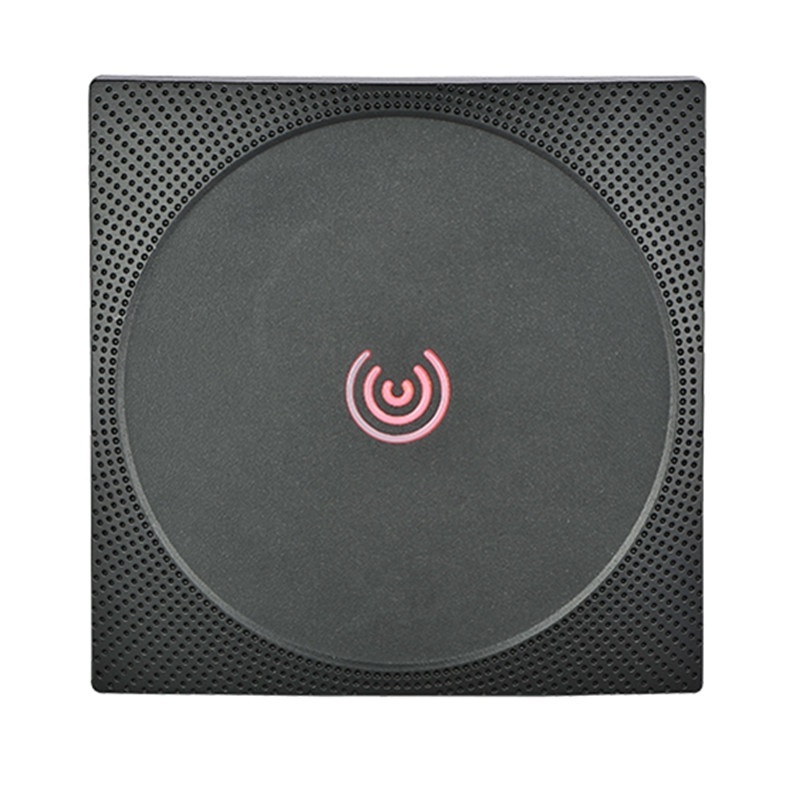

Kr600 125khz Rfid Card Reader Wiegand interface Smart Card Reader Ip65 Waterproof Card Access Control Reader
The KR Series is the main accessories line of external wiegand readers for all our access control devices. With an elegant and robust design, they are easy to connect and install. The LED lights indicate allowed or denied access.
1.Product Specifications
Specifications:
|
Model |
KR601EM |
|
Read Range |
KR601EM: Up to 10CM |
|
Reading Time (Card) |
≤300ms |
|
Power / Current |
DC 6-14V / Max.70mA |
|
Input Port |
2ea (External LED Control, External Buzzer Control) |
|
Output Format |
26bit/34bit Wiegand (default) |
|
LED Indicator |
2 Color LED Indicators(Red and Green) |
|
Beeper |
Yes |
|
Operating Temperature |
-20° to +65°C |
|
Operating Humidity |
10% to 90% relative humidity non-condensing |
|
Color |
Black |
|
Material |
ABS+PC with texture |
|
Dimension(W x H x T)mm |
8.6*8.6*1.6cm |
|
Weight |
50g |
|
Index of Protection |
IP65 |
Features:
.125KHz Proximity
.Read Range: Up to 10CM(125KHz)
.26/34bit Wiegand (default)
.Easy to install on Metal Door Frame or Mullion
.External LED Control
.External Buzzer Control
.Indoor / Outdoor Operation
.Solid Epoxy Potted
.Waterproof IP65
.Reverse Polarity Protection
2.Picture Show
