EPC GEN2 Car Parking Passive UHF RFID windshield label / tag

EPC GEN2 Car Parking Passive UHF RFID windshield label / tag

FOB Reference Price: Get Latest Price

≥3000 Pieces

US $0.09

≥30000 Pieces

US $0.05

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Chip:: Alien H3, H9

Feature:: long range , cutting line, tamper proof

Frequency:: 860-960mhz, ISO18000-6C,EPC GEN2 CLASS 1

Material:: PET , waterproof

Specialty:: read and write

Application:: parking , car windshield tracking

Read & Write endurance:: 100,000 times

Data stortage:: 10 years

Quick Details

Place of Origin:: Guangxi, China

Brand Name:: XGSun

Product name:: EPC GEN2 Car Parking Passive UHF RFID windshield label / tag

Chip:: Alien H3, H9

Feature:: long range , cutting line, tamper proof

Frequency:: 860-960mhz, ISO18000-6C,EPC GEN2 CLASS 1

Material:: PET , waterproof

Specialty:: read and write

Application:: parking , car windshield tracking

Read & Write endurance:: 100,000 times

Data stortage:: 10 years

Products Description

PVC Stickers High Temperature Sensor Windshield Glass Rfid Tag

RFID custom windshield tags offer a more accurate and secure way to allow access into various locations like a gated community,
company/corporate secured parking, or even a car wash. The inlay utilizes passive technology and is encapsulated between thin
layers of polypropylene adding human readable printing to one side and a windshield-compatible adhesive to the other.

Features:
1. Specialized inlays read well through windshield glass.
2. Read ranges of 30+ feet
3. Customized printing
4. Destructible option prevents unauthorized vehicles from using tags transferred from authorized vehicles.

Material	Paper, PVC, PET, PP
Dimension	10138mm, 10542mm, 10050mm, 96.523.2mm, 7225 mm, 8654mm
Size	3015, 3535, 3719mm, 3825, 4025, 5050, 5618, 7323, 8050, 8654, 100*15, etc, or customized
Optional craft	One side or two side customised printing
Feature	Waterproof, printable, long range up to 6m
Application	Widely used for vehicle, car access management in parking lot, electronic toll collection in high way, etc，installed inside car windshiled
Frequency	860-960mhz
Protocol	ISO18000-6c , EPC GEN2 CLASS 1
Chip	Alien H3, H9
Read Distance	1m- 6m
User memory	512 bits
Reading Speed	< 0.05 seconds Valid Using lifetime > 10 years Valid Using times >10,000 times
Temperature	-30 ~ 75 degrees

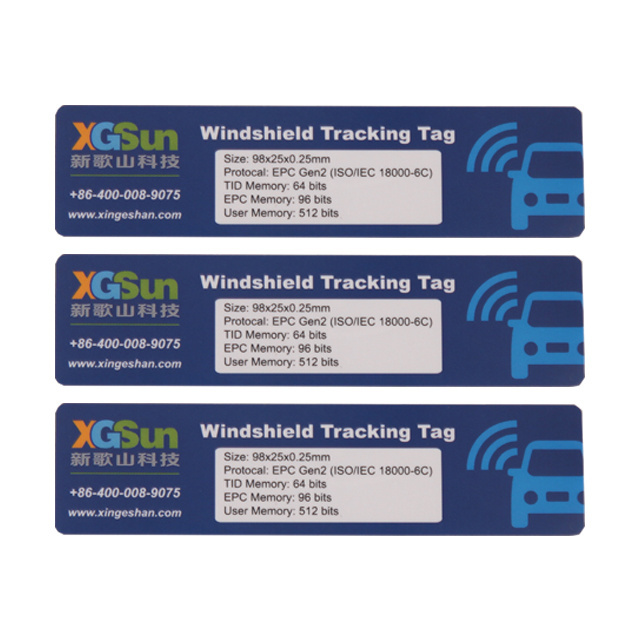

Product shows

Features are as follows: High temperature resistance Low temperature resistance Long storage time Peel failure Anti-transfer Long distance reading Full color printing Logo design

Antenna design

R&D Capability owns over 250 RFID & NFC antenna designs for meeting various requirements on specifications. can also design
antenna according to clients' own requirements.
