Quick Details
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
HAUAN
-
Voltage:
-
380V or as required
-
Dimension(L*W*H):
-
6000*1500*2000mm
-
Weight:
-
3500 kg
-
Feeding width:
-
1000-1250mm
-
Product name:
-
steel roof sheet roll forming machine
-
Usage:
-
Steel Construction
-
Raw material:
-
PPGI PPGL GI GL
-
Cutting blade material:
-
Cr 12 High Grade Steel
-
Control system:
-
PLC(imported Brand)
-
Decoiler:
-
5T Manual Decoiler
-
Thickness:
-
0.3-0.8mm Thickness
-
Operate style:
-
Hydraulic Station Automatic Manual
-
Suitable to process:
-
Aluminum Zinc Coil
-
Advantage:
-
Easy Installation
Quick Details
-
Type:
-
roof sheet roll forming machine
-
Tile Type:
-
Steel/PPGI/PPGL/GI/GL
-
Production Capacity:
-
20M/MIN
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
HAUAN
-
Voltage:
-
380V or as required
-
Dimension(L*W*H):
-
6000*1500*2000mm
-
Weight:
-
3500 kg
-
Feeding width:
-
1000-1250mm
-
Product name:
-
steel roof sheet roll forming machine
-
Usage:
-
Steel Construction
-
Raw material:
-
PPGI PPGL GI GL
-
Cutting blade material:
-
Cr 12 High Grade Steel
-
Control system:
-
PLC(imported Brand)
-
Decoiler:
-
5T Manual Decoiler
-
Thickness:
-
0.3-0.8mm Thickness
-
Operate style:
-
Hydraulic Station Automatic Manual
-
Suitable to process:
-
Aluminum Zinc Coil
-
Advantage:
-
Easy Installation
Products Description

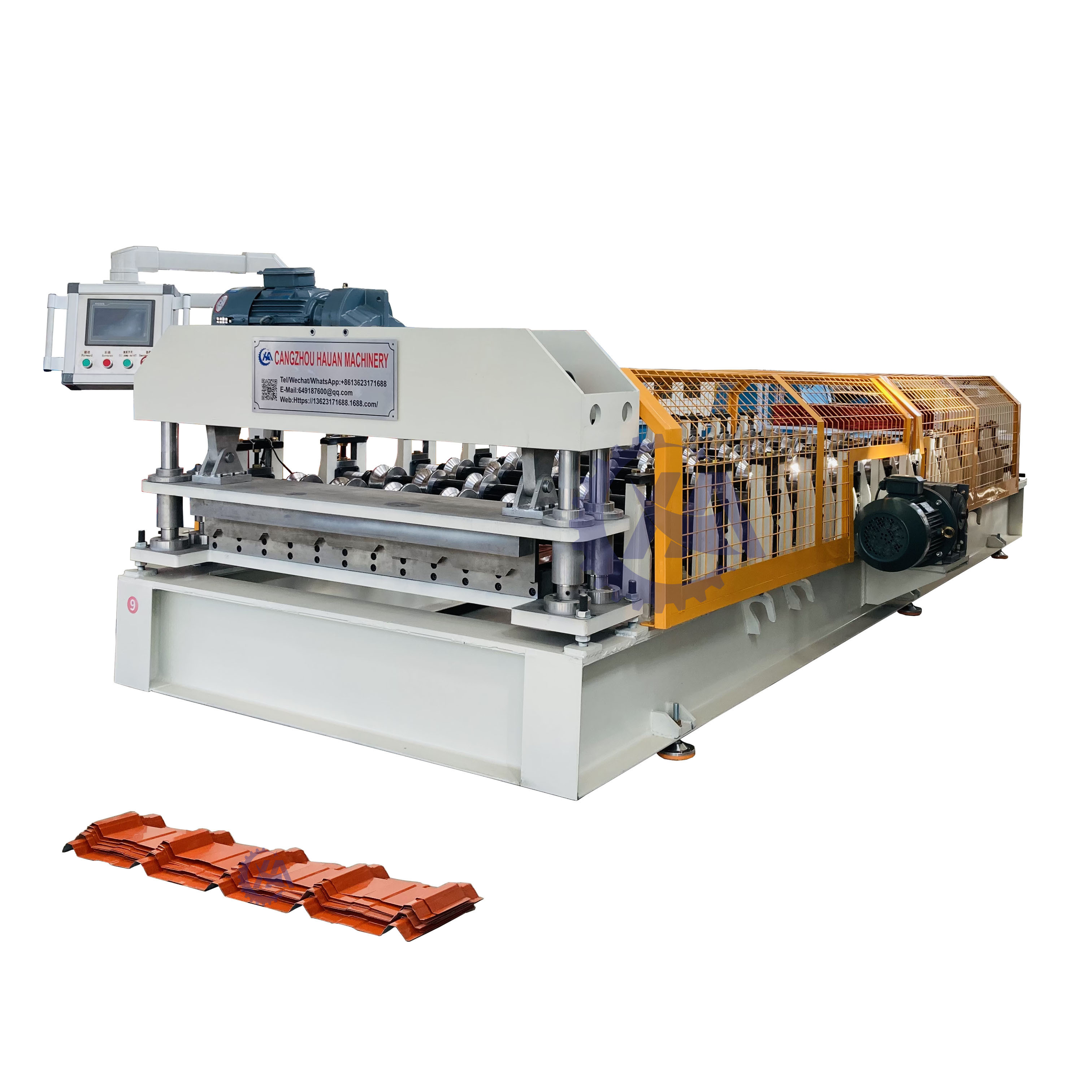

Single Layer Ibr Tr5 Trapezoid Roof Sheet Roll Forming Machine Metal Tile Making Machinery
|
1
|
Suitable to process
|
PPGL/PPGI/GL/GI
|
|
2
|
Effective width
|
customize
|
|
3
|
Feeding width
|
customize
|
|
4
|
Rollers
|
11rows
|
|
5
|
Thickness of steel
|
0.3-0.8mm
|
|
6
|
Motor power
|
5.5kw
|
|
7
|
Working speed
|
15-20m/minm
|
|
8
|
Main frame
|
350H steel
|
|
9
|
Voltage
|
As customer's requirement
|
|
10
|
Control system
|
PLC(delta brand)
|
Product details
Single Layer Ibr Tr5 Trapezoid Roof Sheet Roll Forming Machine Metal Tile Making Machinery
Feeding platform
Hydraulic cutting
PLC control system
Roll former
Process flow
Uncoiler → Molding core → Hydraulic System → Automatic Control system → Step Formed Mechanism → Automatic Shearing Mechanism →Products Receiving Tables
Application
This
Single Layer Ibr Tr5 Trapezoid Roof Sheet Roll Forming Machine Metal Tile Making Machinery
is mainly used to produce various types of metal tile required for factory, stadiums, bus stations, exihibitiom pavilions and other urban buildings. This product has strong durability, is not easy to be damaged, and the speed of rolling the steel plate is fast, which greatly saves time and labor costs. The finished steel plate after rolling is smooth without burrs and not easily deformed.
Different design of roof sheet:
Designed according to customer drawings, unfolded width and size determined by customer.Our machines can be
customized
according to customer needs.
Glazed Tile Type Roll Forming Machine Sheet
IBR Type Roll Forming Machine Sheet
Corrugated Type Roll Forming Machine Sheet
