Quick Details
-
product name:
-
Automatic All-in-one CNC Channel Letter Bending Machine
-
Application:
-
bending aluminum strip for advertising charactor industry
-
bending material:
-
Aluminum,stainless steel,and many other metal
-
cnc or not:
-
cnc
-
driving motor:
-
Delta servo
-
bending width:
-
10-150mm
-
meterial thickness:
-
0.3-1.2mm
-
Weight:
-
350kgs
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Routerstar
-
Weight (KG):
-
500
-
product name:
-
Automatic All-in-one CNC Channel Letter Bending Machine
-
Application:
-
bending aluminum strip for advertising charactor industry
-
bending material:
-
Aluminum,stainless steel,and many other metal
-
cnc or not:
-
cnc
-
driving motor:
-
Delta servo
-
bending width:
-
10-150mm
-
meterial thickness:
-
0.3-1.2mm
-
Weight:
-
350kgs
Automatic All-in-one CNC Channel Letter Bending Machine

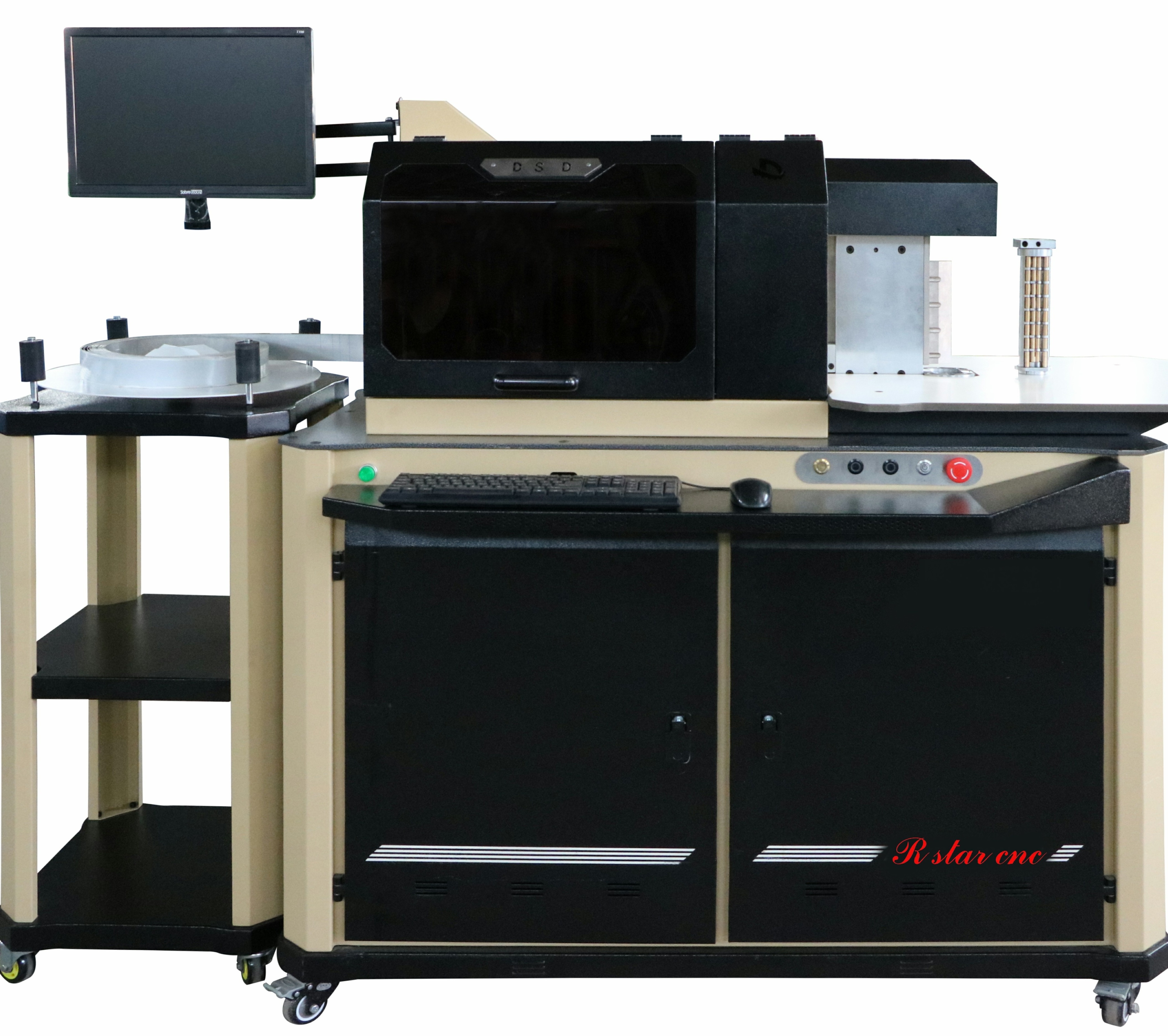

1.Picture:
2. Advantages:
1. Independent double slotting system, the real realization of different types of materials freely processing.
2. Automatic adjustment of cutting depth for both planer and milling cutter slotting, easy to operate
3. The planer is made with hard alloy finished , cutting stable and smooth , blade grain with a number of tips can be used separately,maintenance-free,and free grinding,low cost. Automatic adjust for plane blade,free adjust for slotting depth.
4. Precision milling cutter can swing all around,Identify angle automatically, processing variety of aluminum profile.
5. Roller screw and double rail positioning for transmission ,more powerful, more stable cutting.One-step switch system for double-pole alternate bending for metal coil,and patent extrusion bending system for aluminum profile,switch freely, no need adjust again when change materials.
6. High power servo control system , high precision, fast speed, high torque, improve working efficiency.
7. With length closed-loop control system, length precision software control, error ≤ 0.1mm.
8. Independent material rack, to ensure the stability of equipment feeding.
9. Full chrome plating for machine,Wear-resistant and corrosion-resistant
10. Software can switch between two slotting system freely, simple interface, easy to learn and operate.
3.detailed parts
two kinds of cutter for bending
servo motor
3.Parameter:
|
|
10-150mm |
|
applicable materials |
Stainless steel, galvanized sheet, iron, aluminum, copper and other Metal coil; edge aluminum , aluminum profile or other special-shaped profile |
|
file format |
dxf , ai , plt |
|
Minimum Bending Radius
|
R=3 MM |
|
Material Thickness
|
0.3-1.2mm |
|
Peak Power
|
2000W |
|
Length Accuracy |
0.1mm/meter |
|
Feeding Torque |
>45Nm |
|
Planer Slotted Torque Peak |
>100Nm |
|
Arc Bending Torque Peak |
>100Nm |
|
Dimensions
|
1900*900*1600 |
|
Surface Treatment of Work-piece |
full chrome plating |
|
N.Weight
|
500kg |
|
Power
|
AC220V 50/60HZ |
|
Working Pressure
|
0.3-0.6mpa |
4.samples:
5. Video:
https://www.youtube.com/watch?v=yOyiyR1V15A&t=14s
