Automatic blowing machine adopts our most advanced blowing technologies. This machine is a fully automatic,high intelligent,stable
and reliable blowing machine,with simple structure,and low energy consumption. It is very popular and well used in food
,beverages,cosmetics industry.
- Product Details
- {{item.text}}
Quick Details
-
Filling Accuracy:
-
±2mm
-
Voltage:
-
380V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SKY
-
Dimension(L*W*H):
-
2700X2000X2200MM
-
Weight:
-
4200 KG
-
Product name:
-
oil filling machine
-
Capacity:
-
2500BPH-3000BPH
-
Filling material:
-
Liquid OIL
-
Function:
-
FILLING
-
Product:
-
Edible Oil Filling Line
-
Keywords:
-
oil filling and packing machine
-
Bottle volume:
-
1-5L
-
Bottle type:
-
PET Plastic Bottle Glass Bottle
-
Control:
-
PLC+ Touch Screen
-
Local Service Location:
-
United States, Malaysia, Nigeria, Germany
Quick Details
-
Machinery Capacity:
-
4000BPH, 8000BPH, 12000BPH, 6000BPH, 2000BPH
-
Packaging Material:
-
Plastic, Glass
-
Filling Material:
-
Oil
-
Filling Accuracy:
-
±2mm
-
Voltage:
-
380V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SKY
-
Dimension(L*W*H):
-
2700X2000X2200MM
-
Weight:
-
4200 KG
-
Product name:
-
oil filling machine
-
Capacity:
-
2500BPH-3000BPH
-
Filling material:
-
Liquid OIL
-
Function:
-
FILLING
-
Product:
-
Edible Oil Filling Line
-
Keywords:
-
oil filling and packing machine
-
Bottle volume:
-
1-5L
-
Bottle type:
-
PET Plastic Bottle Glass Bottle
-
Control:
-
PLC+ Touch Screen
-
Local Service Location:
-
United States, Malaysia, Nigeria, Germany

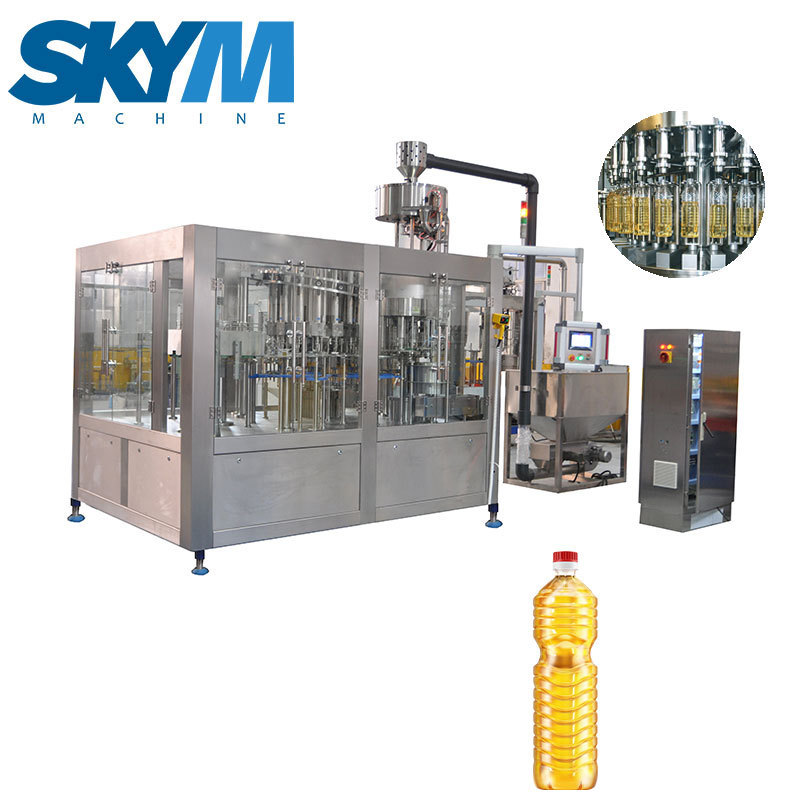

Fully High Speed automatic Edible Cooking Filling Machine Sunflower Olive Oil Filling Capping Machine
1)This machine has compact structure, flawless control system, and is convenient To operate with high grade automatism 2)All the parts contacting the media are made of high quality stainless steel, Able to bear corrosion and easily rinsed 3)Adopts high precision and high speed ration filling valve so that the oil level is exact with loss, ensuring high quality filling level
4)The capping head has constant twisting movement, which ensures capping Quality, without damaging caps
5)Adopts high efficiency cap tidying system, with flawless equipment for feeding caps and protecting
6)Needs only to change the pinwheel, bottle entering screw and arched board when changing bottle models, with simple and convenient operation
7)There is flawless equipment for overload protecting, which can protect effectively machine and operator safety
oil bottle filler Part
1 - Filling System: The filling valve is competent for high speeding filling without liquid drawing.
2 - The filling precision is high.
3 - Mechanical valve, volumetric valve, flowmeter valve and weighing valve.4-More efficient and energy-saving, bringing more economic benefits.
2 - The filling precision is high.
3 - Mechanical valve, volumetric valve, flowmeter valve and weighing valve.4-More efficient and energy-saving, bringing more economic benefits.
oil bottle filler Part
1 - Filling System: Mechanical valve, volumetric valve, flowmeter valve and weighing valve.
2 - All materials in contact with product are of 316L stainless steel and the seals are made of food grade materials.
3 - The filling valve is competent for high speeding filling without liquid drawing.
2 - All materials in contact with product are of 316L stainless steel and the seals are made of food grade materials.
3 - The filling valve is competent for high speeding filling without liquid drawing.
oil bottle Capper Part
put caps on oil bottle .
1- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
2- All 304/316 stainless steel construction
3- No bottle no capping
4- Automatic stop when lack of bottle
2- All 304/316 stainless steel construction
3- No bottle no capping
4- Automatic stop when lack of bottle
Product Paramenters
|
Filling Machine
|
Model
|
Capacity(BPH)
|
Bottle Size
|
Power
|
|
Gravity Type
|
GYF-12-5F
|
3000
|
Round & Square PET bottle,
0.3-2.5L bottle, 30mm bottle neck
|
1.5
|
|
|
GYF-16-5F
|
5000
|
|
2.2
|
|
|
GYF-24-8F
|
7500
|
|
3
|
|
|
GYF-32-8F
|
10000
|
|
3
|
|
|
GYF-12-5F
|
1000
|
Round & Square PET bottle,
3-6L bottle
|
1.5
|
|
|
GYF-20-5F
|
1500
|
|
2.2
|
|
|
GYF-32-6F
|
2500
|
|
3
|
|
Weight Type
|
GYF-12-5C
|
3500
|
Round & Square PET bottle,
0.3-2.5L bottle, 30mm bottle neck
|
1.5
|
|
|
GYF-16-5C
|
5500
|
|
2.2
|
|
|
GYF-24-8C
|
8000
|
|
3
|
|
|
GYF-32-8C
|
11000
|
|
3
|
|
|
GYF-12-5C
|
1200
|
Round & Square PET bottle,
3-6L bottle
|
1.5
|
|
|
GYF-20-5C
|
1800
|
|
2.2
|
|
|
GYF-32-6C
|
2800
|
|
3
|
|
Plunger Type
|
GYF-12-5Z
|
4100
|
Round & Square PET bottle,
0.3-1L bottle
|
1.5
|
|
|
GYF-16-5Z
|
5500
|
|
2.2
|
|
|
GYF-24-8Z
|
8250
|
|
3
|
|
|
GYF-32-8Z
|
11000
|
|
3
|
Real Picture Of Customer Factory
Customer Plant Layout
