Quick Details
-
Brand Name:
-
CF
-
Model Number:
-
CF-ETP-48V/300A
-
Output Frequency:
-
45Hz~66Hz
-
Output Current:
-
300A
-
Product Name:
-
High frequency switching power supply system
-
Code:
-
CF-ETP-48V/300A
-
INPUT VOLTAGE:
-
260-550 Vac
-
Input frequency range:
-
45-66 Hz
-
Input power factor:
-
>0.99
-
efficiency:
-
>92%
-
System rated capacity:
-
600A
-
rectifier:
-
R4850G6
-
Battery distribution:
-
2X(100A-400A)
-
Voltage control accuracy:
-
±0.1V
Quick Details
-
Input Voltage:
-
260-550 Vac
-
Output Voltage:
-
42-58 Vdc
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
CF
-
Model Number:
-
CF-ETP-48V/300A
-
Output Frequency:
-
45Hz~66Hz
-
Output Current:
-
300A
-
Product Name:
-
High frequency switching power supply system
-
Code:
-
CF-ETP-48V/300A
-
INPUT VOLTAGE:
-
260-550 Vac
-
Input frequency range:
-
45-66 Hz
-
Input power factor:
-
>0.99
-
efficiency:
-
>92%
-
System rated capacity:
-
600A
-
rectifier:
-
R4850G6
-
Battery distribution:
-
2X(100A-400A)
-
Voltage control accuracy:
-
±0.1V
Product Description
System configuration
1. Rectifier:
R4850G6
(intelligent air-cooled, 48V/50A)
2. Communication input:
Three phase five wire system: 380V, 50/60HZ
Single phase three wire system: 220V, 50/60Hz
3. Battery distribution:
2X (100A-400A)
4. DC output:
Load distribution:10~500A
Fuses, DC circuit breakers
System composition:
Rectification module, Monitoring unit, AC distribution unit, DC distribution unit, Battery pack switch, Related auxiliary units.

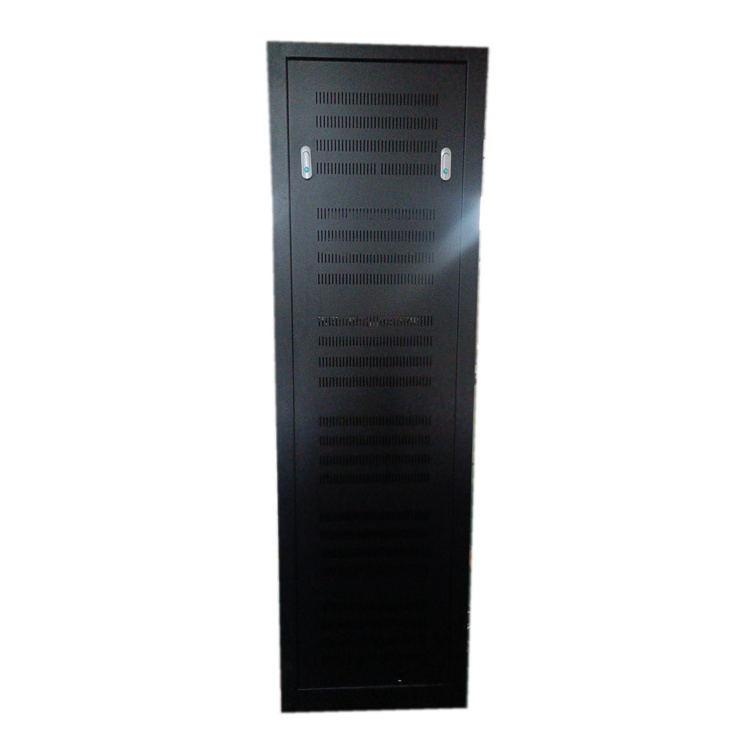

Detail drawing display
Function Description:
1. Voltage control accuracy ± 0.1V.
2. Equalization and Floatation Conversion: Manual or periodic equalization can be set as needed, and equalization and floatation conversion can be performed manually or automatically.
3. Automatic control of fast charging: It can automatically determine whether fast charging is needed based on the discharge capacity or discharge time of the battery, and automatically switch to float charging after fast charging is completed.
4. Battery current limiting: The current limiting point can be set arbitrarily according to the needs of the battery to protect it.
5. Temperature compensation: The center temperature/compensation value and other parameters can be set arbitrarily according to the battery to protect it.
6. Battery testing: Periodic online testing of battery quality. The rectifier voltage actively tracks the battery voltage.
7. Output short-circuit and overload protection, and automatically generate sound and light alarms in case of faults.
8. Other functions: The system has automatic protection functions for overvoltage, overcurrent, undervoltage, and short circuit. The rectifier module has automatic protection functions for over temperature, and all states have automatic recovery functions.
Intelligent high-frequency switch power supply：
1.Combined type switch power supply 2.Integrated switch power supply 3.Embedded switch power supply system
Switch power supply module:
The module we are equipped with is the product of Eaton Schwertek, a subsidiary of Eaton Group, which has reached the
international top technical indicators and reliability indicators
international top technical indicators and reliability indicators
Rectifier module:
1.APR48-3G(-48V/5-37.5A) (High cost performance)
2.APR48-ES(-48V/41.6A)(High efficiency-95%)
3.NPR48(-48V/62.5A)(Medium power module)
4.Cr48(-48V/120A)(High power module)
Monitoring module:
1.SM40,SM45(Small scale system monitoring module)
2.Sc100(Medium scale system monitoring module)
3.Sc200(Large scale system monitoring module)
