1.In addition to the standard bucket, we also provide more auxiliary tools for you to choose from, including Hydraulic Breaker,Toothless Bucket from 50cm to 120cm, Auger. . . . . .
2.Color and style can be customize
d.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shandong,China
-
Dimension(Long * Breadth * High):
-
2430*1080*2045
-
Machine Weight:
-
2860 kg
-
Bucket capacity:
-
0.72
-
PRODUCT:
-

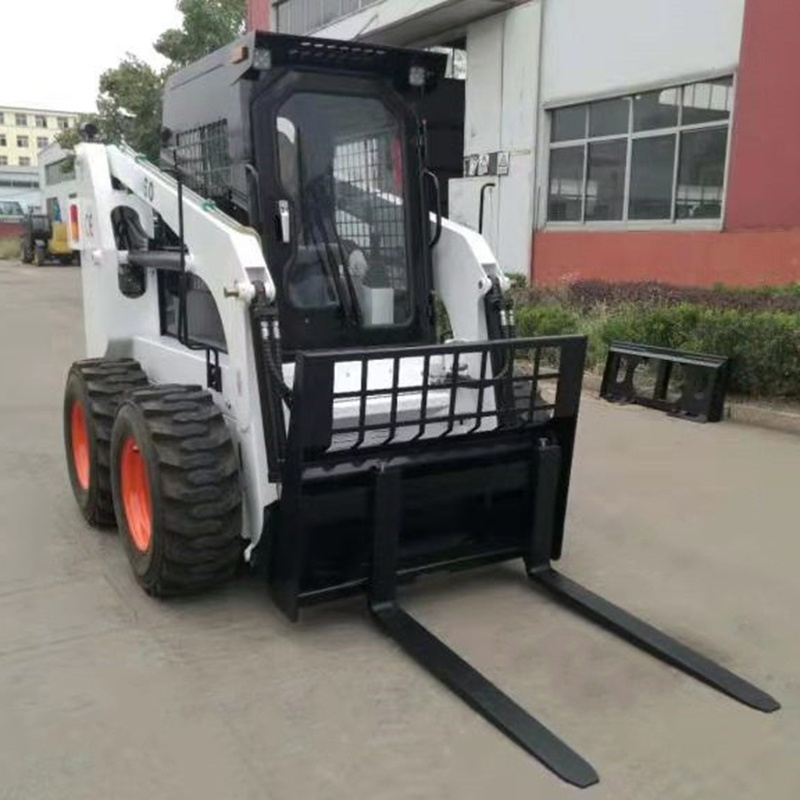

HY700 WHEEL SKID STEER LOADER
-
Brand:
-
Shanding mini skid steer loader
-
RATED SPEED:
-
2500R/MIN
-
LOAD CAPACITY:
-
700KG
-
FUEL TANK CAPACITY:
-
90L
-
HYDRAULIC OIL TANK CAPACITY:
-
65L
-
RATED POWER:
-
45KW (60HP)
Quick Details
-
Engine Brand:
-
Calibration
-
Power:
-
15.7 kw
-
Brand Name:
-
Shanding mini skid steer wheeled loader
-
Place of Origin:
-
Shandong,China
-
Dimension(Long * Breadth * High):
-
2430*1080*2045
-
Machine Weight:
-
2860 kg
-
Bucket capacity:
-
0.72
-
PRODUCT:
-
HY700 WHEEL SKID STEER LOADER
-
Brand:
-
Shanding mini skid steer loader
-
RATED SPEED:
-
2500R/MIN
-
LOAD CAPACITY:
-
700KG
-
FUEL TANK CAPACITY:
-
90L
-
HYDRAULIC OIL TANK CAPACITY:
-
65L
-
RATED POWER:
-
45KW (60HP)
Manufacturer Professional Design Mini Diesel Track Skid Steer Loader With Bucket Mini Kompaktlader
|
PRODUCT
|
HY700 WHEEL SKID STEER LOADER
|
|
LOAD CAPACITY
|
700KG
|
|
WEIGHT
|
2860KG
|
|
ENGINE
|
DIESEL ENGINE
|
|
RATED SPEED
|
2500R/MIN
|
|
TYPE OF ENGINE
|
FOUR-CYLINDER, WATER-COOLED
|
|
RATED POWER
|
45KW (60HP)
|
|
FUEL CONSUMPTION RATE ON STANDARD
|
<=240G/KW.H
|
|
FUEL CONSUMPTION RATE ON MAX TORQUE
|
<=238G/KW.H
|
|
NOISE
|
<=117DB (A)
|
|
GENERATOR POWER
|
500W
|
|
VOLTAGE
|
12V
|
|
STORAGE BATTERY
|
105AH
|
|
SPEED
|
0- 10KM/H
|
|
DRIVE MODE
|
HYDROSTATIC FOUR-WHEEL DRIVE
|
|
TIRE
|
TIRE10-16.5
|
|
HYDRAULIC PUMP FLOW FOR RUNNING
|
110L/MIN
|
|
HYDRAULIC PUMP FLOW FOR WORKING
|
65L/MIN
|
|
SYSTEM PRESSURE
|
15MPA
|
|
FUEL TANK CAPACITY
|
90L
|
|
HYDRAULIC OIL TANK CAPACITY
|
65L
|
|
MOTOR
|
BIG TORQUE HYDRAULIC MOTOR
|
|
PISTON DOUBLE PUMP
|
SAUER HYDRAULIC PUMP
|
|
ITEM
|
DATA
|
|
MAX WORKING HEIGHT (A)
|
3490MM
|
|
MAX PIN HEIGHT (B)
|
3028MM
|
|
MAX HEIGHT (C)
|
2814MM
|
|
MAX DUMPING HEIGHT (D)
|
2266MM
|
|
MAX DUMPING DISTANCE (F)
|
437 MM
|
|
WHEELBESE (G)
|
1044MM
|
|
TOTAL HEIGHT (H)
|
1979MM
|
|
GROUND CLEARANCE (J)
|
196MM
|
|
OVERALL LENGTH WITHOUT BUCKET (K)
|
2621MM
|
|
TOTAL LENGHT (L)
|
3400MM
|
|
BUCKET WIDTH (M)
|
1720MM
|
|
TOTAL WIDTH (W)
|
1 665MM
|
|
TREAD WIDTH TO CENTER LINE (P)
|
1425MM
|
|
TIRE'S THICKNESS (N)
|
240MM
|
|
DEPARTURE ANGLE
|
19DEGREE
|
|
BUCKET DUMPER ANGLE
|
41DEGREE
|
|
RETRACTING ANGLE
|
18DEGREE
|
|
TURNING RADIUS (R)
|
2056MM
|
Recommend Products
Products Description
Options:
Shipping & Payment
For Transportation, We Have Three Methods:
Sea, Air, And Land, And Support Multiple Payment And Multiple Transportation Methods.You Can Receive This Mini Excavator You Like At The Port, And Of Course You Can Also Receive The Mini Excavator At Your Doorstep.(The Cost Is Higher, Not Recommended), We Guarantee That We Will Not Charge Any Intermediate Fees And Extra Fees That Exceed The.Shipping Cost, We Just Want You To Get This Favorite Mini Excavator Faster And More Preferentially!
Exhibition
FAQ
1.Can the factory support mass production? Can I purchase a customized sample first?
A:Dear friends,shanding company can support mass production. It can mass produce 200+ mini skid steel loader in one month, and can support customization (one piece is fine), but it cannot provide free prototypes. Please forgive me, my friend!
2.Can it be transported to my door? I want to get my favorite mini skid steel loader soon?
A:Of course, my friend, but if your family is located very close to the port, we suggest that you can go directly to the port to
transport your goods, so you can save a lot of money! If the distance is long, you can find an inland transportation company by yourself, and we can communicate with him; we can also find an agency for you, but the toll will be very high (not recommended) During transportation, we will not charge any intermediate fees and additional service fees other than freight. We just want you to get your favorite mini skid steel loader earlier.
3. How can I guarantee after-sales after I buy it?
A:Dear friends, our machine has a one-year/1000H work warranty period. During this time, if there is any problem with the machine itself, we will repair it for you free of charge, but if it is man-made damage, we will Not responsible for the maintenance of the machine, please forgive me, my friend.
A:Dear friends,shanding company can support mass production. It can mass produce 200+ mini skid steel loader in one month, and can support customization (one piece is fine), but it cannot provide free prototypes. Please forgive me, my friend!
2.Can it be transported to my door? I want to get my favorite mini skid steel loader soon?
A:Of course, my friend, but if your family is located very close to the port, we suggest that you can go directly to the port to
transport your goods, so you can save a lot of money! If the distance is long, you can find an inland transportation company by yourself, and we can communicate with him; we can also find an agency for you, but the toll will be very high (not recommended) During transportation, we will not charge any intermediate fees and additional service fees other than freight. We just want you to get your favorite mini skid steel loader earlier.
3. How can I guarantee after-sales after I buy it?
A:Dear friends, our machine has a one-year/1000H work warranty period. During this time, if there is any problem with the machine itself, we will repair it for you free of charge, but if it is man-made damage, we will Not responsible for the maintenance of the machine, please forgive me, my friend.
