Normally Closed Microswitch Yamatake Honeywell Micro Switch

Normally Closed Microswitch Yamatake Honeywell Micro Switch

FOB Reference Price: Get Latest Price

≥100 Pieces

US $0.2

≥500 Pieces

US $0.16

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: KW4-Z5F, KW4-Z5F

Max. Current:: 10A

Operating Temperature:: -25℃~+85℃

Protection Level:: IP40

Circuit:: SPDT

Color:: Black,Green

Actuator Form:: Roller roller

Rating:: 5A-10A 125/250VAC

Dielectric strength:: 1000VAC 1 Minute

Insulation Resistance:: 100MΩ(500VDC)

Contact Resistance:: 50MΩ

Electrical Life:: 10,000 Cycles

Mechanical Life:: 100,000 Cycles

Quick Details

Max. Voltage:: 250V

Place of Origin:: Zhejiang, China

Brand Name:: Daier

Model Number:: KW4-Z5F, KW4-Z5F

Max. Current:: 10A

Operating Temperature:: -25℃~+85℃

Protection Level:: IP40

Circuit:: SPDT

Color:: Black,Green

Actuator Form:: Roller roller

Rating:: 5A-10A 125/250VAC

Dielectric strength:: 1000VAC 1 Minute

Insulation Resistance:: 100MΩ(500VDC)

Contact Resistance:: 50MΩ

Electrical Life:: 10,000 Cycles

Mechanical Life:: 100,000 Cycles

Products Description

Rating	5A-10A 125/250VAC
Contact Resistance	≦50MΩ
Insulation Resistance	≧100MΩ(500VDC)
Dielectric strength	1000VAC 1 Minute
Operating Temperature	-25℃~+85℃
Ambient Humidity Used	<85%RH
Electrical Life	≧10,000 Cycles
Mechanical Life	≧100,000 Cycles

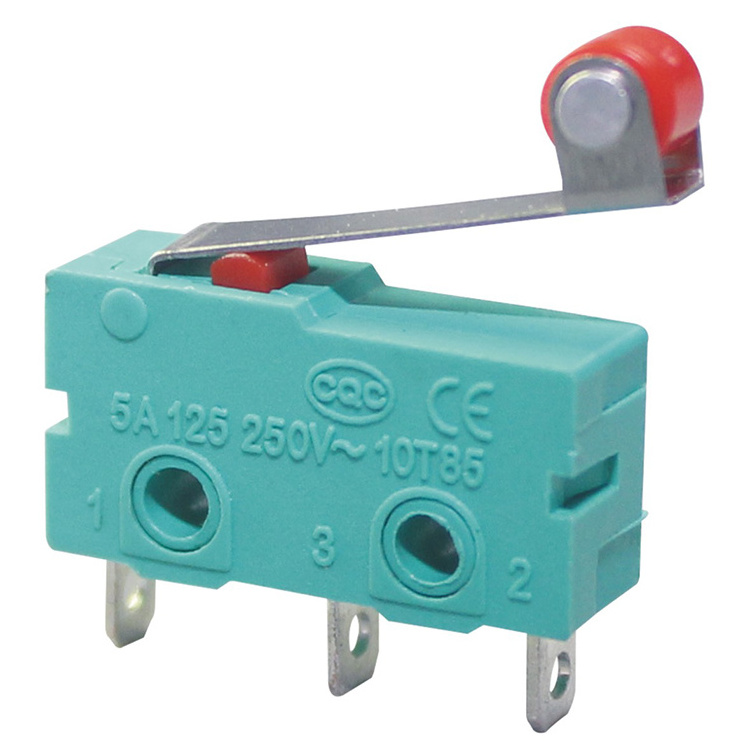

KW4 type micro switch is a safe and reliable small switch. Compact structure, with a small contact gap, fast action, high
sensitivity and small movement stroke characteristics. Long life and high reliability. Terminals are fully equipped with various
types of booms. Widely used in various household appliances, electronic equipment, automation equipment, communications equipment,
automotive electronics, instrumentation and other fields.
