Quick Details
-
Model Number:
-
902-two layers
-
Product name:
-
hydraulic rubber hose for mining
-
Size:
-
1/4"~2"
-
Certification:
-
ISO9001
-
Length:
-
20M,50M,100M
-
Material:
-
Synthetic Rubber
-
Temperature range:
-
-40°C~+100°C
-
OEM:
-
yes
-
Colour:
-
black
-
specification:
-
NBR
-
REINFORCEMENT:
-
two layers of braided hydraulic hose
Quick Details
-
Processing Service:
-
Moulding
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
INTERFLEX
-
Model Number:
-
902-two layers
-
Product name:
-
hydraulic rubber hose for mining
-
Size:
-
1/4"~2"
-
Certification:
-
ISO9001
-
Length:
-
20M,50M,100M
-
Material:
-
Synthetic Rubber
-
Temperature range:
-
-40°C~+100°C
-
OEM:
-
yes
-
Colour:
-
black
-
specification:
-
NBR
-
REINFORCEMENT:
-
two layers of braided hydraulic hose

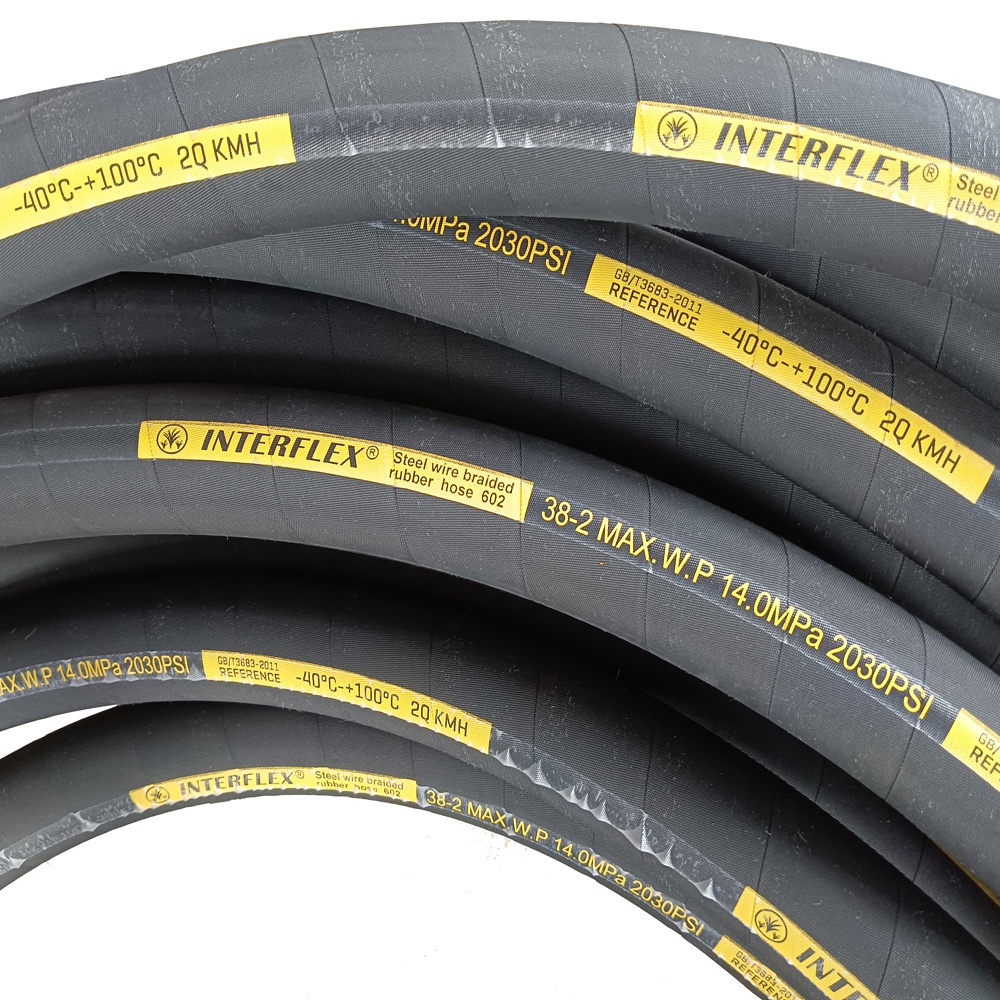

Steel wire braided hydraulic hose for mining:602
Applications: Suitable for water and petroleum-based hydraulic fluids
Constructions:This hose consists of oil resistant synthetic rubber for inner tube,braided high tensile steel wire for reinforcement,and weather resistant synthetic rubber for cloth or wrapped cover.
Temperature range:-40°C~+100°C
Product Parameter
|
HOSE SIZE
|
|
|
|
R.O.D
|
O.D
|
MAX W.P.
|
MIN B.P.
|
MIN B.R.
|
LENGTH
|
|||
|
TYPE
|
Dash
|
mm
|
inch
|
mm
|
mm
|
mpa
|
mpa
|
mm
|
m
|
|||
|
602-0602
|
-4
|
6.5±0.5
|
1/4”
|
13.4±0.5
|
16.2±0.8
|
60.0
|
140.0
|
100
|
100/50
|
|||
|
602-0802
|
-5
|
8.0±0.5
|
5/16”
|
15.4±0.5
|
18.0±0.8
|
48.0
|
120.0
|
115
|
100/50
|
|||
|
602-1002
|
-6
|
9.7±0.5
|
3/8”
|
17.4±0.5
|
20.3±0.8
|
40.0
|
100.0
|
130
|
100/50
|
|||
|
602-1302
|
-8
|
13.0±0.5
|
1/2”
|
21.2±0.5
|
24.0±0.8
|
36.0
|
90.0
|
180
|
100/50
|
|||
|
602-1602
|
-10
|
16.0±0.5
|
5/8”
|
24.2±0.5
|
27.0±0.8
|
32.0
|
80.0
|
205
|
100/50
|
|||
|
602-1902
|
-12
|
19.0±0.5
|
3/4”
|
27.2±0.5
|
30.3±0.8
|
25.0
|
62.5
|
240
|
100/50
|
|||
|
602-2202
|
-14
|
22.0±0.5
|
7/8”
|
30.2±0.5
|
33.2±0.8
|
22.0
|
55.0
|
280
|
100/50
|
|||
|
602-2502
|
-16
|
25.7±0.5
|
1”
|
33.0±.0.5
|
36.2±1.2
|
21.0
|
52.5
|
300
|
100/50
|
|||
|
602-3202
|
-20
|
32.0±0.7
|
1-1/4
|
40.7±0.5
|
43.5±1.2
|
17.0
|
42.5
|
420
|
40/20
|
|||
|
602-3802
|
-24
|
38.5±0.7
|
1-1/2”
|
47.8±0.5
|
50.6±1.5
|
14.0
|
30.0
|
500
|
40/20
|
|||
