Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
5C SENSOR
-
Usage:
-
Level Sensor
-
Theory:
-
Current Sensor
-
Output:
-
Switching Transducer
-
Switching type:
-
NO
-
Material:
-
PP
Quick Details
-
Mounting Type:
-
magnetic liquid level switch
-
Description:
-
magnetic liquid level switch
-
Model Number:
-
5CFS-YZ-2
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
5C SENSOR
-
Usage:
-
Level Sensor
-
Theory:
-
Current Sensor
-
Output:
-
Switching Transducer
-
Switching type:
-
NO
-
Material:
-
PP
|

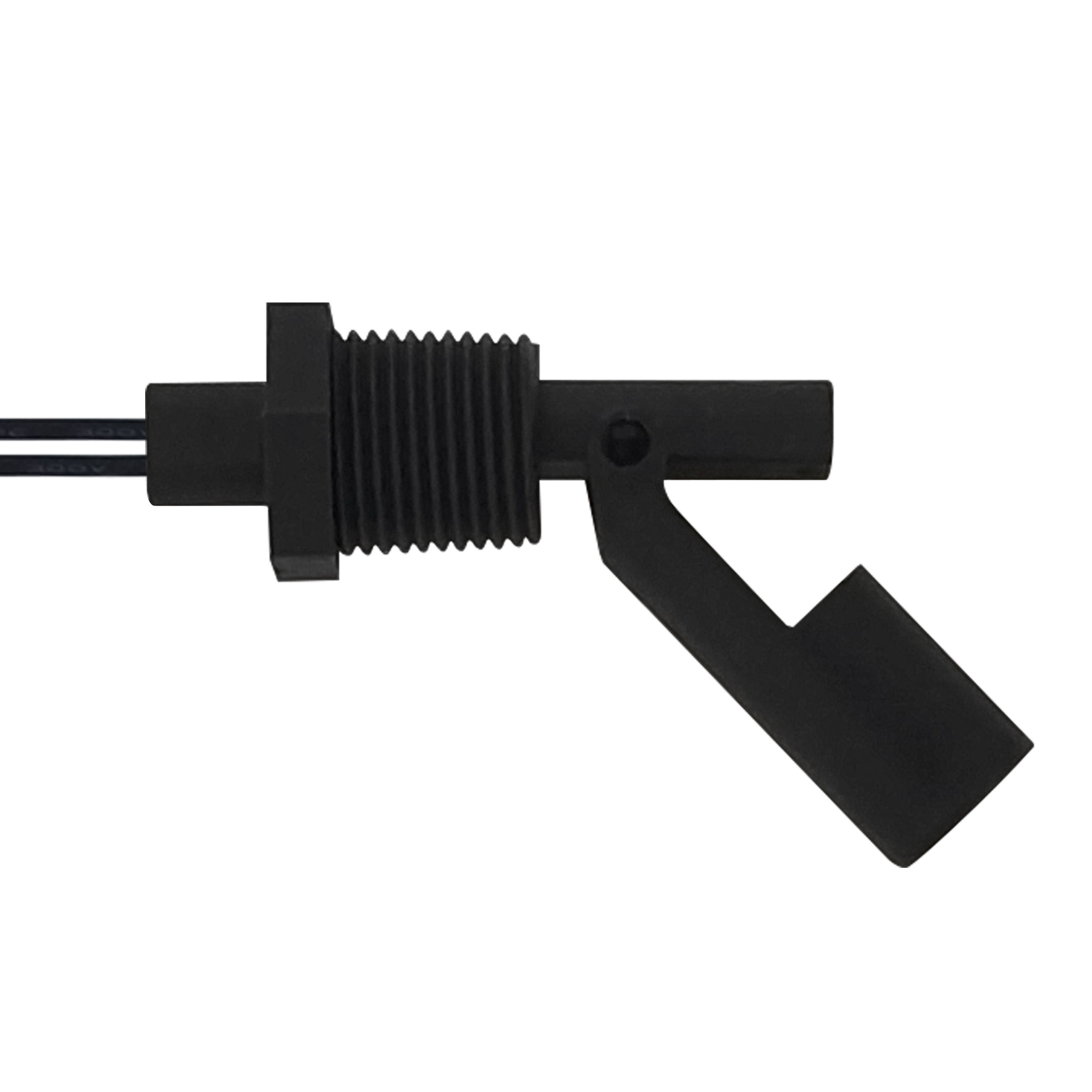

5C SENSOR magnetic liquid level switch 5CFS-YZ-2
|
||||
| Model NO. | 5CFS-YZ-1 | Wire Gauge | 3266 22AWG | |
| Installation | Side | Wire length | 300mm | |
| Material | PP | Switching Voltage | 110VDC Max. | |
| Switching Type | NO(Normally Open) | Switching Current | 0.5A | |
| Working temperature | -20~80° | Contact rating | 10W | |
|
|
|||
|
1.Float level switch is widely used in tank level auto control system, startup and shutdown the water pump or electric valve on the basis of liquid level. 2.Vertical installation switch can be mounted on the top or bottom of liquid tank; side installation switch can be mounted on the wall of liquid tank. 3.Switching type definition:NO: Normally open,mounted switch on the top of tank, switching ON when float rising . NC: Normally close,mounted switch on the top of tank, switching OFF when float rising. |
||||
|
Mounting&Switching instruction
|
||||
