Quick Details
-
Model Number:
-
A20-T25-B2-C
-
Brand Name:
-
Tonhe
-
Name:
-
Electric actuator valve
-
Working voltage:
-
AC110-230V
-
Wiring diagram:
-
CR202 normally closed or normally open
-
Actuator:
-
A20 gray housing
-
Open/close time:
-
≤5S
-
Power consumption:
-
≤4W
-
Working current:
-
≤500mA
-
Service life:
-
70000 times
-
cable length:
-
0.5 meter
-
Sealing material:
-
PTFE and FKM
-
Certification:
-
CE, ROHS
Quick Details
-
Port Size:
-
1 inch
-
Warranty:
-
1 year
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
A20-T25-B2-C
-
Brand Name:
-
Tonhe
-
Name:
-
Electric actuator valve
-
Working voltage:
-
AC110-230V
-
Wiring diagram:
-
CR202 normally closed or normally open
-
Actuator:
-
A20 gray housing
-
Open/close time:
-
≤5S
-
Power consumption:
-
≤4W
-
Working current:
-
≤500mA
-
Service life:
-
70000 times
-
cable length:
-
0.5 meter
-
Sealing material:
-
PTFE and FKM
-
Certification:
-
CE, ROHS

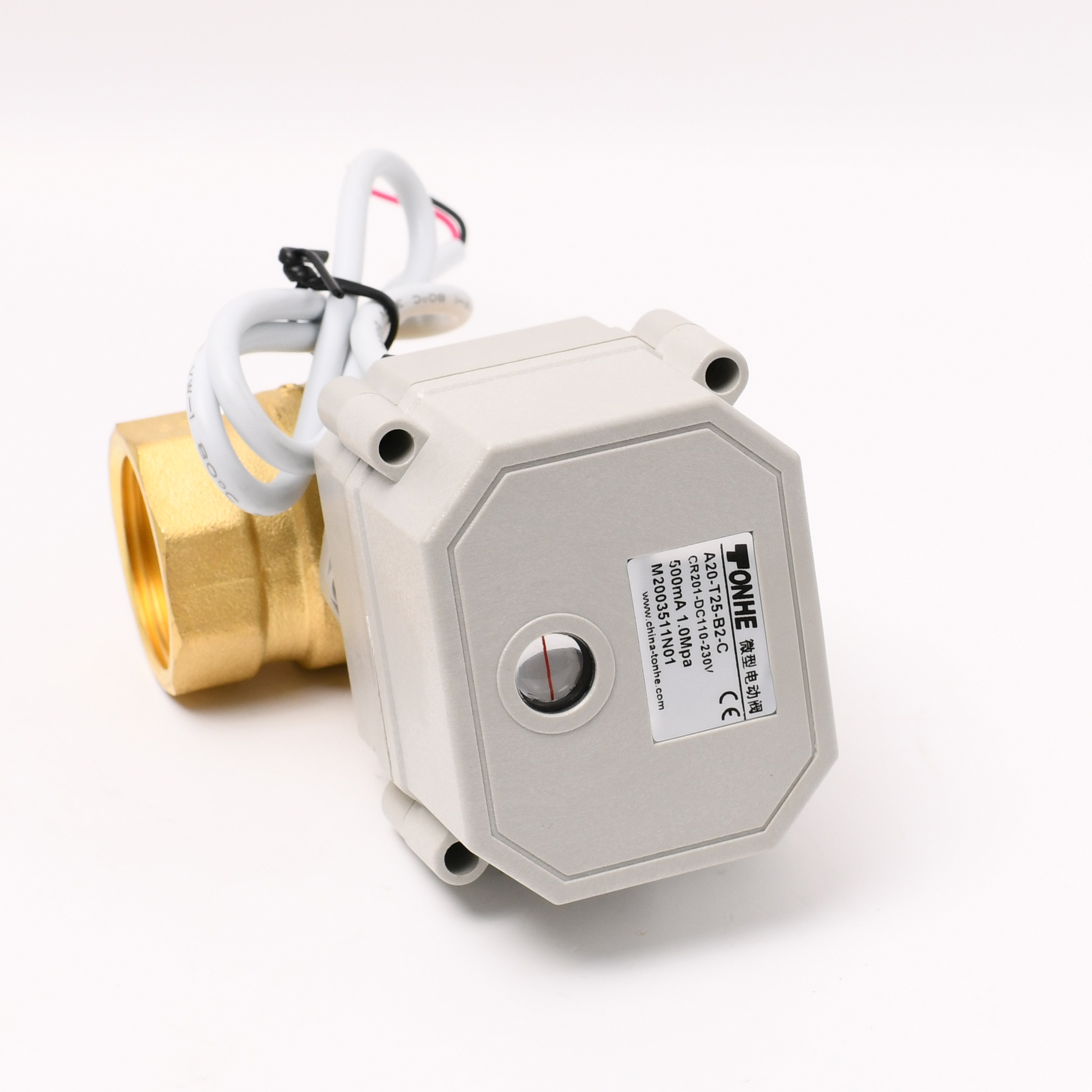

12V 24V 220V stainless steel 2 way 3 way mini brass motorized ball valve DN25 Solenoid Valve
Pls confirm the two details when you order them.
| No. | Item | Need to be confirmed |
| 1 | Valve thread | BSP or NPT female thread |
| 2 | capacitor return | normally open or normally closed |
CR202 wiring diagram AC110-230V
When SW is CLOSED, the valve OPEN, the actuator automatically power off after in place. ·
When SW is OPEN, the valve CLOSED, the actuator automatically power off after in place.
Suitable Working Voltage: AC110-230V
Exceeding the working voltage is forbidden
