Quick Details
-
Brand:
-
MT
-
Application:
-
Customized
-
Color:
-
Customized Color
-
Manufacturer:
-
Chinese
-
item:
-
MT-1005
-
Certificates:
-
CE,CCC,Rohs,REACH,FCC
-
Brand Name:
-
MT or OEM brand
-
MOQ:
-
1pcs
-
Warranty:
-
3 Months
-
Angle:
-
180 degree
-
Golden Plated:
-
3um
-
connector pin:
-
8P8C
Quick Details
-
Model Number:
-
MT-1005
-
Type:
-
Backshell
-
Place of Origin:
-
Zhejiang, China
-
Brand:
-
MT
-
Application:
-
Customized
-
Color:
-
Customized Color
-
Manufacturer:
-
Chinese
-
item:
-
MT-1005
-
Certificates:
-
CE,CCC,Rohs,REACH,FCC
-
Brand Name:
-
MT or OEM brand
-
MOQ:
-
1pcs
-
Warranty:
-
3 Months
-
Angle:
-
180 degree
-
Golden Plated:
-
3um
-
connector pin:
-
8P8C

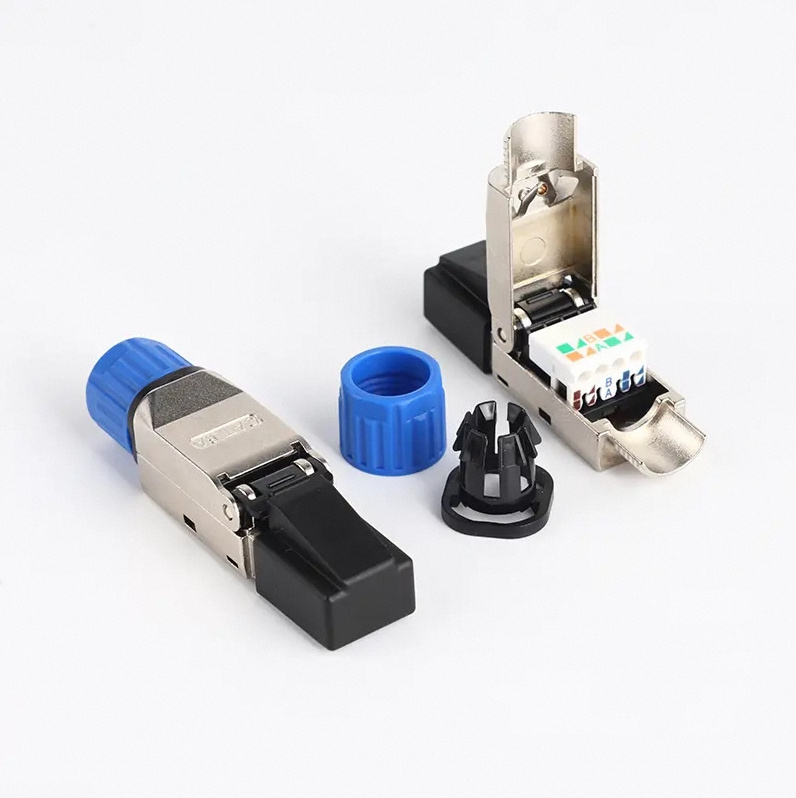

Product Description
Specifications:
Meet TIA/EIA-568-A and TIA/EIA-568-B Category 5E requirements.
Meet TIA/EIA TSB-40
Meet ISO/IEC Generic Cabling Standard 11801
Meet CENELEC Generic Cabling Standard EN50173
Electrical:
According to UL 1863
Current rating: 1.5 Amp Max.
Voltage rating: 150 Volts
Contact resistance: 20 m-ohm
Insulation Resistance: 500M-ohm
Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min
Materials:
Housing: PC
IDC: PC , Accept 22-26 AWG Solid Wire.
PCB: FR4 1.6mm(0.04") thickness, 2 layers
Contact: PC ,
0.45mm(0.018") Diameter Phosphor bronze with Gold plating on contact area.
Meet TIA/EIA-568-A and TIA/EIA-568-B Category 5E requirements.
Meet TIA/EIA TSB-40
Meet ISO/IEC Generic Cabling Standard 11801
Meet CENELEC Generic Cabling Standard EN50173
Electrical:
According to UL 1863
Current rating: 1.5 Amp Max.
Voltage rating: 150 Volts
Contact resistance: 20 m-ohm
Insulation Resistance: 500M-ohm
Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min
Materials:
Housing: PC
IDC: PC , Accept 22-26 AWG Solid Wire.
PCB: FR4 1.6mm(0.04") thickness, 2 layers
Contact: PC ,
0.45mm(0.018") Diameter Phosphor bronze with Gold plating on contact area.
Specification
|
item
|
value
|
|
Model Number
|
MT-1005
|
|
Type
|
Backshell
|
|
Place of Origin
|
China
|
|
|
Zhejiang
|
|
Brand
|
MT
|
|
Application
|
Customized
|
|
Color
|
Customized Color
|
|
Manufacturer
|
Chinese
|
|
item
|
MT-1005
|
|
Certificates
|
CE,CCC,Rohs,REACH,FCC
|
|
Brand Name
|
MT or OEM brand
|
|
Type
|
TOOLLESS PLUG
|
|
MOQ
|
1pcs
|
|
Warranty
|
3 Months
|
|
Angle
|
180 degree
|
|
Golden Plated
|
3um
|
|
connector pin
|
8P8C
|
