Quick Details
-
Brand Name:
-
Dyroy
-
Use:
-
FTTX
-
Warranty Time:
-
2 years
-
Product name:
-
Fiber Optic Adapter
-
Application:
-
FTTH FTTB FTTX Solution
-
Color:
-
Green
-
Connector:
-
SC APC SC UPC
-
Fiber Type:
-
Single Mode
-
Material:
-
Plastic
-
Package:
-
Standard Package
-
Insertion Loss:
-
0.3 DB
Quick Details
-
Type:
-
Fiber opitc adapter
-
Model Number:
-
DY-FOA-01
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Dyroy
-
Use:
-
FTTX
-
Warranty Time:
-
2 years
-
Product name:
-
Fiber Optic Adapter
-
Application:
-
FTTH FTTB FTTX Solution
-
Color:
-
Green
-
Connector:
-
SC APC SC UPC
-
Fiber Type:
-
Single Mode
-
Material:
-
Plastic
-
Package:
-
Standard Package
-
Insertion Loss:
-
0.3 DB
Product Description

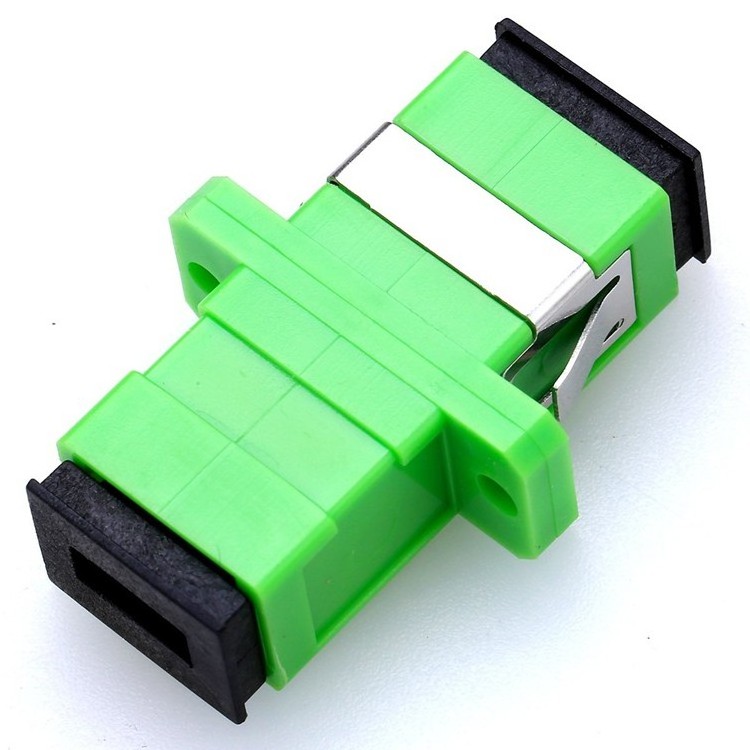

Our Dyroy supplies simplex and duplex SC fiber optic adapter with dust caps,SC optical adapter is of flange type, single mode adapters are with zirconia sleeve . implements connection of SC fiber optic connectors in the fiber optic lines.It only produce a little loss for implementing optical path smooth. SC optical adapter makes two end face precision docking, which can make light energy from transmitter optical fiber coupled to receiver optical fiber efficiently and will reduce impact to a minimum because of intervention optical link of system.
We can provide SM,MM,OM4 SC Adapter ,also Simplex ,duplex adapters . .
Specification
|
Type
|
|
Single mode
|
Multimode
|
||
|
Insertion Loss
|
|
<0.2dB
|
<0.2dB
|
||
|
Plug and unplug force(g/f)
|
|
200-600G
|
|
||
|
Durability
|
|
1000 times
|
|
||
|
Operating Temperature
|
|
-25~85°C
|
|
||
|
Operating Temperature
|
|
-40~110°C
|
|
||
|
Humidity
|
|
95%RH(Non-Packaging)
|
|
||
