Quick Details
-
Application:
-
Building, building construction for inside concrete wall support
-
Design Style:
-
Mondern
-
Type:
-
Scaffolding Props
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Shuangma
-
Model Number:
-
steel prop for construction
-
material:
-
Q235 steel pipe raw material
-
surface treatment:
-
powder coated,painted,galvanized
-
color:
-
silver,dark red,yellow,navy blue,green
-
tube thickness:
-
1.8/2.0/2.2/2.5/3.0mm or as your request
-
adjustable length:
-
1800-5510
-
Working life:
-
4-6 years normally
-
inner tube diameter:
-
48*2.5*3000mm
-
outer tube diameter:
-
48mm,or 56/58/60mm
-
base plate size:
-
120*120*5mm or as your request
Quick Details
-
Warranty:
-
3 years
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects
-
Application:
-
Building, building construction for inside concrete wall support
-
Design Style:
-
Mondern
-
Type:
-
Scaffolding Props
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Shuangma
-
Model Number:
-
steel prop for construction
-
material:
-
Q235 steel pipe raw material
-
surface treatment:
-
powder coated,painted,galvanized
-
color:
-
silver,dark red,yellow,navy blue,green
-
tube thickness:
-
1.8/2.0/2.2/2.5/3.0mm or as your request
-
adjustable length:
-
1800-5510
-
Working life:
-
4-6 years normally
-
inner tube diameter:
-
48*2.5*3000mm
-
outer tube diameter:
-
48mm,or 56/58/60mm
-
base plate size:
-
120*120*5mm or as your request

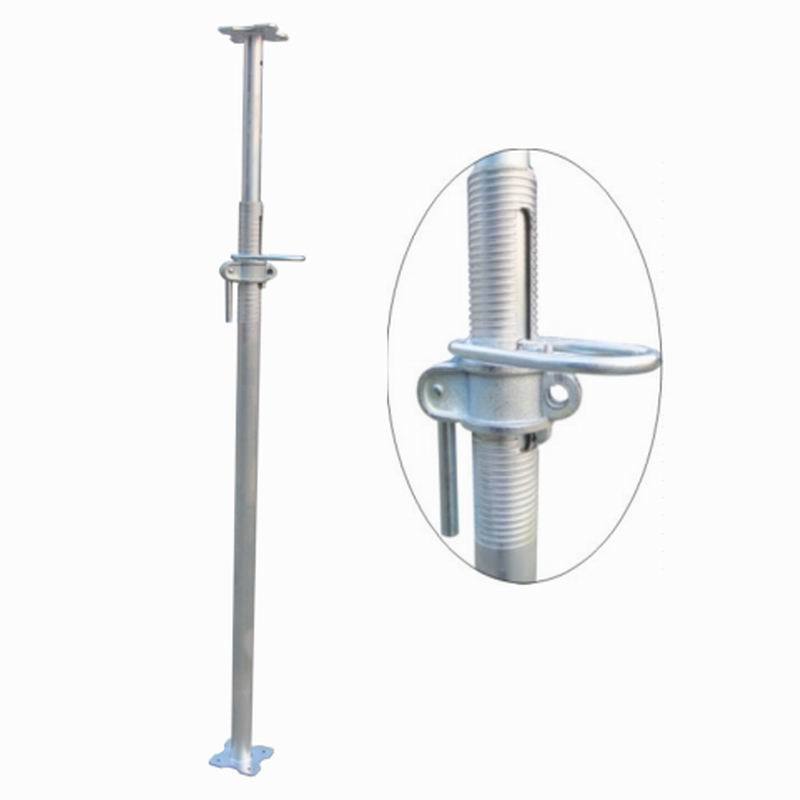

Product Description
|
Code
|
Adjustment (Metric)
|
Specification
|
Weight(kg)
|
|
HDPR.30.DO
|
1800-3000mm
|
Outer pipe OD76x2.5mm, Inner pipe OD63.5x3.25mm, End plate152x152x8mm, Open thread.
|
20.36
|
|
HDPR.35.DO
|
2030-3500mm
|
|
22.71
|
|
HDPR.39.DO
|
2640-3960mm
|
|
24.80
|
|
HDPR.48.DO
|
3250-4880mm
|
|
29.11
|
|
HDPR.55.DO
|
3250-5510mm
|
|
32.15
|
Manufacturing Technique
Material and Cutting Workshop
All materials, include CHS/RHS/SHS tubes, plate, PFC , angle steel, etc, will be inspected when entering into warehouse.
Automatic Cutting Machine
The maching can cuts tubes, PFC, angle steel in bundle, and cut the materials into the set length automatically.
Automatic Hole-Punching Machine
This machine is specially designed for hole-punching. It is controlled by computer and can be automtic feed and punching.
Steel Plank Production Line
The production line is specially fabricated steel planks in 240mm wide. It automatically do plank forming, punching and cutting process.
Automatic Welding Machine
This machine is specially designed for ring lock scafold vertical welding. It can weld 6 rossettes at the same time with high efficiency and high welding quality. Also ledger welding machine can do round welding for other scaffold items, such as steel props.
Powder Coating Production Line
The production line do good coating job for scaffold items. Before coating, we do sandblasting firstly to clean the steel surface so that the powder can be well electrostatic adherence.
