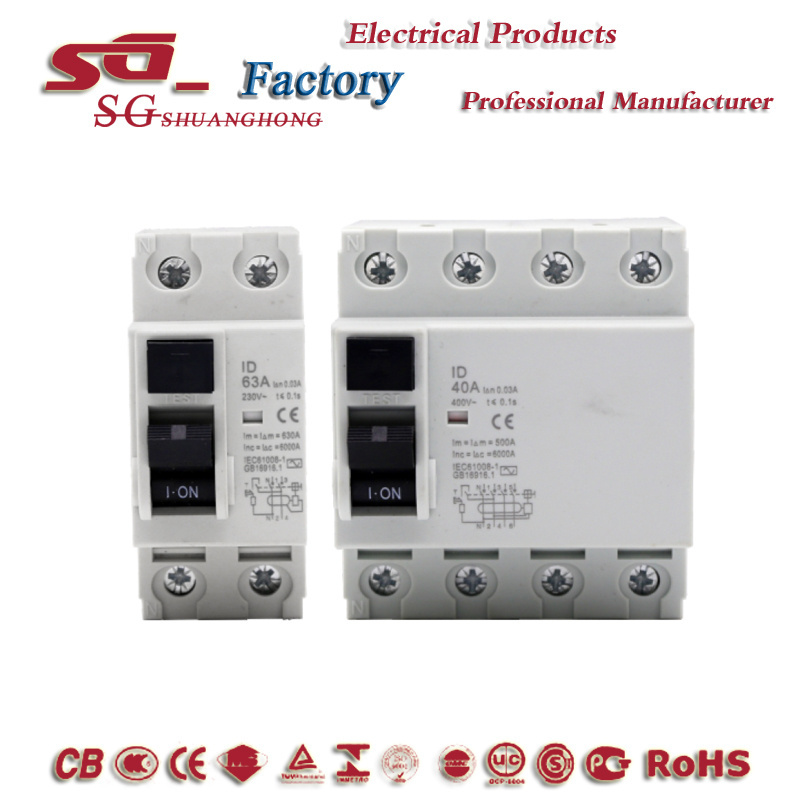

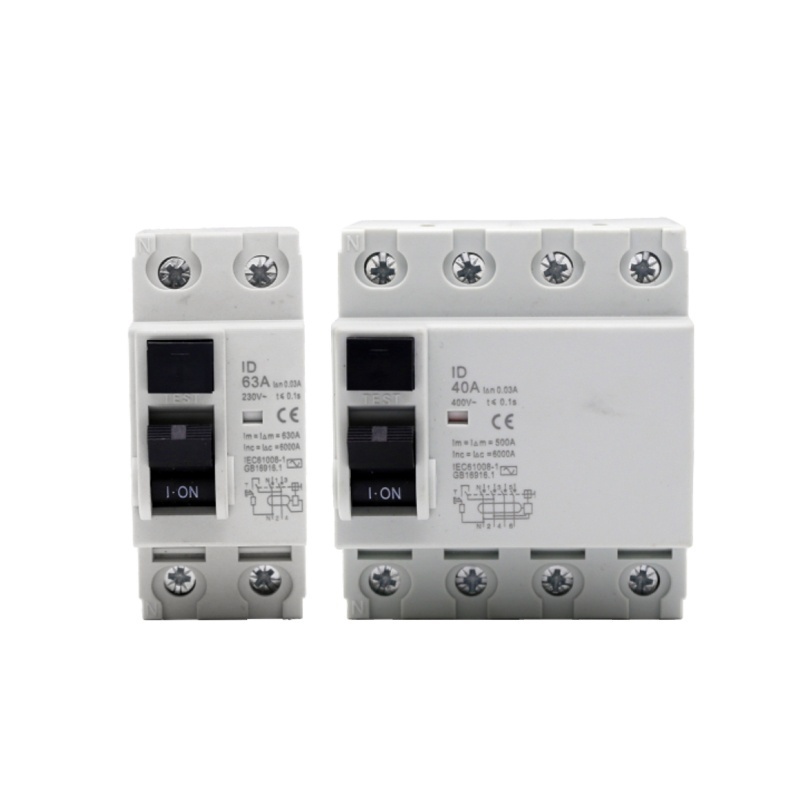

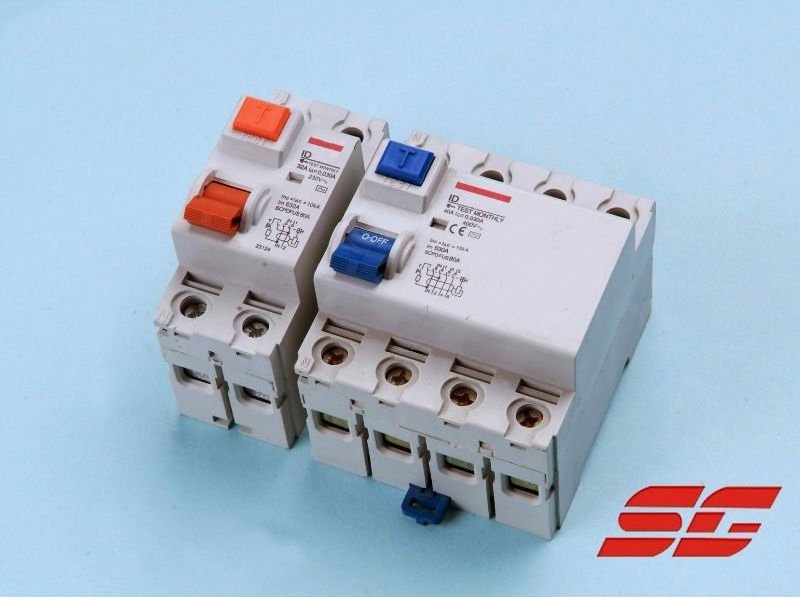

16-63amp 230/415V 6KA rcb ID Residual Current Circuit Breaker rcb accessories

16-63amp 230/415V 6KA rcb ID Residual Current Circuit Breaker rcb accessories

FOB Reference Price: Get Latest Price

≥200 Pieces

US $5

≥2000 Pieces

US $4

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: China

Brand Name:: OEM

Model Number:: ID

color:: meet your demand

Poles Number:: 1P+N 3P+N

Rated Current:: 16,20,25,40,50,63A

Rated residual operating Current:: 30,100,300,500MA

rated voltage:: 230/240V 400/415V

short circuit capacity:: 6000A

protection degree:: lp20

Product name:: ID RCCB

Quick Details

Breaking Capacity:: 6

Rated Voltage:: 220/400

BCD Curve:: C

Place of Origin:: China

Brand Name:: OEM

Model Number:: ID

color:: meet your demand

Poles Number:: 1P+N 3P+N

Rated Current:: 16,20,25,40,50,63A

Rated residual operating Current:: 30,100,300,500MA

rated voltage:: 230/240V 400/415V

short circuit capacity:: 6000A

protection degree:: lp20

Product name:: ID RCCB

SGID SERIRS

Residual Current Circuit Breaker Residual Current Circuit Breaker Residual Current Circuit Breaker Residual Current Circuit Breaker Residual Current Circuit Breaker Residual Current Circuit Breaker Residual Current Circuit Breaker

Residual Current Circuit Breaker provide the function of isolation switching and earth leakage protection of electrical circuits.And also provide the indirect protection of the operator's body against the dangerous effects of electric current and provide the protection of the fire caused by the electrical circuit fault.

Standard ↓

GB16916
IEC61008

Product's advantage ↓

1.Our products have the guarantee period of 36 calendar months,that is a high quality and reliability;
2.our products have an excellent ratio between price and quality ,you can possess them by competitive price and high quality;
3.The fast and flexible production form aim at the customer require;
4.The deliveries exactly in accordance with customer orders
5.The fast transportation.
6.Adopt electromagnetic style release , can play a leak electricity and electric shock protecting role while breaking in zero Line.

Normal operation and mounting requirement :

·Circumstance temperature -5°C ~ +40°C, average temperature not exceeding 35°C.
·Altitude above sea level less than 2000 m.
·Humidity not exceeding 50% at 40°C and not exceeding 90% at 25°C.
·Installation class II or III.
·Pollution class II.
·Installation method DIN Rail mounting type.
·The external magnetism shall not be more than 5 times of terrestrial one.
·Product shall be installed vertically at the place where there shall be no severe impact and vibration. The product is switched on when the handle is at upper position.

Construction features :

1.Measuring component and buckling component of products is located between enter line end and entrance line end ;
2.Movement characteristic of products can not be changed with outside mechanical tool ;
3.The operating organization has the free function to take off and buckle;
4.Operate part can not be taken down from the shell outer of products , the shell can not influence the operating organization to work , the accessory group which replace the feelers pressure

Uumber of Poles	1P+N,3P+N
Rated Current (A)	16,20,25,40,50,63
Rated Residual Operating Current(In)(mA)	30,100,300,500
Rated Voltage(V)	AC 230/240
Rated Voltage(V)	AC400/415
Residual Operating Current Scope	0.5In~1In
Rated Current Off-time	less than or equal to 0.3S
Short circuit capacity (Icu)	6000A
Endurance	4000
Protection Degree	lp20
