Quick Details
-
Brand Name:
-
JOCONN
-
Dimension(L*W*H):
-
3300*1250*1350
-
Weight:
-
220 KG
-
Marketing Type:
-
New Product 2022
-
Name:
-
mini single row corn maize combine harvester
-
Function:
-
corn harvesting corn stalk crushing
-
Engine:
-
Gasoline /diesel/tractor
-
Used for:
-
Corn bulb harvester and corn Stalk crusher
-
Advantage:
-
Easier Operation
-
Package:
-
Standard Wood Crate
-
corn bulb height:
-
above 60cm
-
harvesting row:
-
Single Row
-
After-sales Service Provided:
-
Free spare parts
Quick Details
-
Number of Rows:
-
1
-
Working Width(mm):
-
500 mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
JOCONN
-
Dimension(L*W*H):
-
3300*1250*1350
-
Weight:
-
220 KG
-
Marketing Type:
-
New Product 2022
-
Name:
-
mini single row corn maize combine harvester
-
Function:
-
corn harvesting corn stalk crushing
-
Engine:
-
Gasoline /diesel/tractor
-
Used for:
-
Corn bulb harvester and corn Stalk crusher
-
Advantage:
-
Easier Operation
-
Package:
-
Standard Wood Crate
-
corn bulb height:
-
above 60cm
-
harvesting row:
-
Single Row
-
After-sales Service Provided:
-
Free spare parts

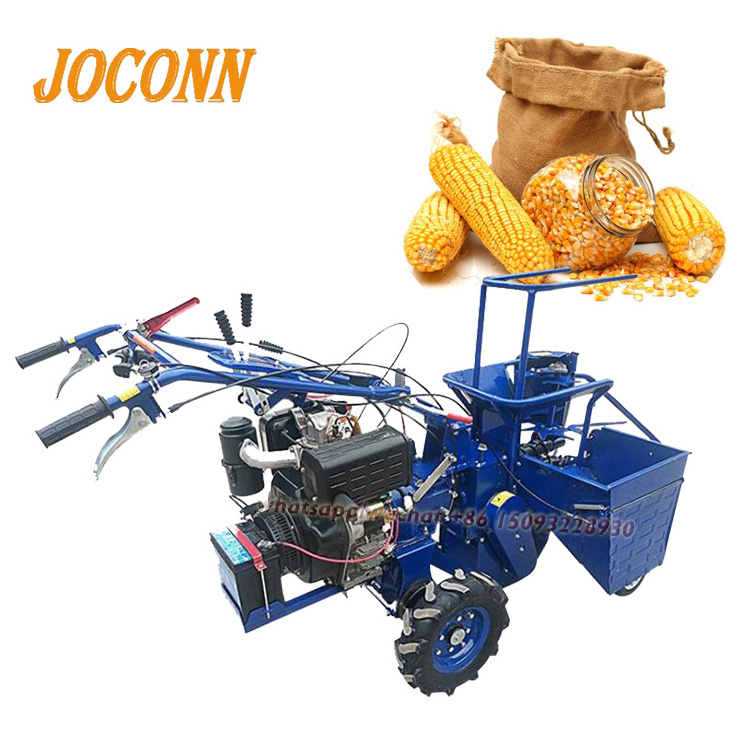

Factory price Mini Maize Harvester Corn Combine Harvester Walking Tractor mini sweet maize picker for sale
| Single Row Dry and wet Mini Corn Harvester Machine | |
| 1 | The self-propelled minicorn harvester is composed of a driving device, a harvesting device, and a harvesting conductive wheel. The harvesting device is arranged at the front end of the driving device, and a harvesting conductive wheel is arranged between the harvesting device and the driving device. |
| 2 | This single-row small corn harvester is equipped with a reversing gearbox and a large wheel at the front end. The harvester is more flexible when changing directions, which greatly reduces the working radius of the harvester and improves the harvesting efficiency. |
| 3 | the single-row mini corn harvester can harvest one to two acres of corn per hour. During harvesting, the corn stalk can be directly crushed , the corn skin is cleaned, and the corn rod height can be harvested above 60 cm. The corn bucket can be automatically unloaded when full, the height of the stubble can be adjusted, the tension clutch works safely, and the turning radius is small for easy operation. |
|
Model |
177gasoline engine |
186diesel engine
|
188 diesel engine |
190gasoline engine |
Corn harvester front reaper for walking tractor |
|
Driven Power |
7.5hp |
8.5hp |
9hp |
11.5hp |
8-20hp walking tractor |
|
Starting method |
By hand |
Electric |
Electric |
By hand |
|
|
Packing Size |
155*66*91 cm |
155*65*100 cm |
155*65*100 cm |
155*66*100 cm |
93*65*83 cm |
|
Weight |
220kg |
265kg |
265kg |
265kg |
125kg |
| 1 | This Mini single row corn harvester is compact and adaptable, and is widely used in small plots such as hills and mountains. |
| 2 | complete functions, picking corn bulbs , packing straw, crushing stalk and returning to the field. |
| 3 | perfect performance for harvesting the wet and dry corn bulbs . |
| 4 | Flexible operation, cutting height can be adjusted, turning radius is small. |
| 5 | This small corn harvester is a multifunctional harvester. After removing the front harvester, you can install micro-tillers, rotary cutters, hay cutters, spraying pumps, and pumps. |
| 6 | The gear chain transmission mechanism is stable, reliable and easy to maintain. |
walking tracktor type corn harvester
gasonline engine type corn harvester
also can be customized with sitting
detail parts showing
plant showing
If you are interested or have any questions , please feel free to contact me by namecard below , or scan the QR code for quick talk on wechat .we are on service 24hrs .
