- Product Details
- {{item.text}}
Quick Details
-
Ink Type:
-
UV Ink
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
NEWIN
-
Voltage:
-
220V
-
Dimensions(L*W*H):
-
1570mm*1400mm*650mm
-
Weight:
-
140 KG
-
Marketing Type:
-
New Product 2022
-
Model:
-
NW-UV6090E
-
Print head:
-
3pcs XP600/G5I for choose
-
Printing Board:
-
Hoson
-
Max. printing size:
-
24"*35"(60cm*90cm)
-
max printing height:
-
120mm
-
Materials to print:
-
Rotary,Metal,Plastic,Glass, Wood,Ceramics,Acrylic,Leather,etc
-
Nozzle number:
-
1440
-
Servo Motor Brand:
-
Leadshine motor
-
Printing Speed:
-
3pcs XP600: 6pass+360x1080+BiDirection+Eclosion60%: 7'35"
-
Secondary Ink Tank:
-
Heating Functional
Quick Details
-
Print Dimension:
-
600mm*900mm
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Ink Type:
-
UV Ink
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
NEWIN
-
Voltage:
-
220V
-
Dimensions(L*W*H):
-
1570mm*1400mm*650mm
-
Weight:
-
140 KG
-
Marketing Type:
-
New Product 2022
-
Model:
-
NW-UV6090E
-
Print head:
-
3pcs XP600/G5I for choose
-
Printing Board:
-
Hoson
-
Max. printing size:
-
24"*35"(60cm*90cm)
-
max printing height:
-
120mm
-
Materials to print:
-
Rotary,Metal,Plastic,Glass, Wood,Ceramics,Acrylic,Leather,etc
-
Nozzle number:
-
1440
-
Servo Motor Brand:
-
Leadshine motor
-
Printing Speed:
-
3pcs XP600: 6pass+360x1080+BiDirection+Eclosion60%: 7'35"
-
Secondary Ink Tank:
-
Heating Functional

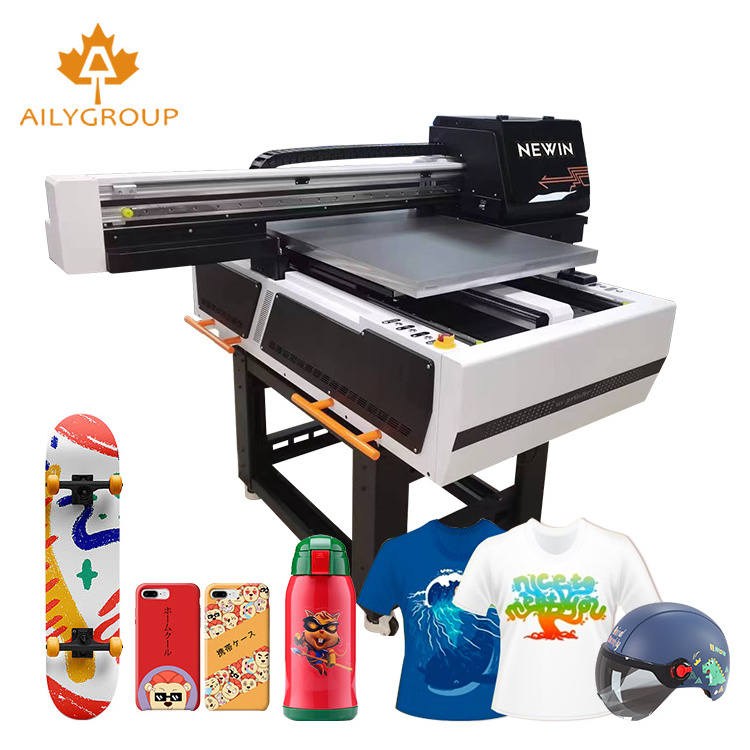

6090 Uv Printer Flat Bed Printing Machine With 3pcs Xp600/G5i Printheads
With the capability to print onto rigid substrates of any surface, it offers the ability to produce a diverserange of prints for both indoor and outdoor advertisement, decoration, DY promotion products and giftsAnd the size is 60*90cm, fit for different size workshop
.
|
Model No.
|
NW-UV 6090E
|
Max Print Size
|
24"*35'' (60cmx90cm)
|
||
|
Max Print Height
|
200mm
|
Power Consumption
|
700W
|
||
|
Printer Head
|
With 3/4pcs Ricoh G5i print heads (3pcs Epson Xp600/1600-U1/13200-U1 Optional)
|
|
|
||
|
Printing Board
|
Hoson
|
|
|
||
|
Printing Speed
|
3pcs G5i:
6pass+720*900+Bi Direction+Eclosion20%: 6'22'' 8pass+720*1200+Bi Direction+Eclosion20%:7'44'' |
|
|
||
|
Ink Supply System
|
500ml/Bottle, Secondary Ink Tank Automatic continuous
ink supply, Negative Pressure, Alarming when less of ink |
|
|
||
|
Ink Colors
|
CMYK+W+V (Optional)
|
|
|
||
|
File Format
|
PDF,JPG,TIFF,EPS,AI,etc
|
|
|
||
|
Software
|
Ripprint / Photo Print
|
|
|
||
|
Working Environment
|
40-60Degrees
|
|
|
||
|
Machine Size&Net Weight
|
1570mm*1400mm*650mm; 140kg
|
|
|
||
FAQ
Q1:What materials can uv printer print on ?
A:printers are multi-functional printers: Aily uv printer an print on Bottles and any materials such as phone case, leather, wood, plastic, acrylic, pen, golf ball, metal, ceramic, glass, textile and fabrics etc...
Q2:Can LED UV printer print embossing effect?
A:Yes, it can print embossing effect, for further information or samples pics, please contact our representative salesman.
Q3:Does it must be sprayed a pre-coating?
A:some material need pre-coating , such as metal, glass, etc.
Q4:How can we start to use the printer?
A:We will send the manual and teaching video with the package of the printer.Before use the machine, please read the manual and watch the teaching video and operate strictly as the instructions. We will also offer excellent service by providing free technical support online.
Q5:What about the warranty?
A:Our factory provide one year warranty: any parts (except print head, ink pump and ink cartridges) questions on normal use, will provide new ones within one year(not include shipping cost). Beyond one year, only charge at cost.
Q6:what’s the printing cost?
A:Usually,1 square meters need cost about $1. Printing cost is very low.
Q7:how can I adjust the print height?
A:Aily UV printer installs infrared sensor so the printer can detect the height of printing objects automatically.
Q8:where can I buy the spare parts and inks?
A:Our factory also provide spare parts and inks, you can buy from our factory directly or other suppliers in your local market.
Customization of personality is ok, welcome to contact us now!
