Quick Details
-
Model Number:
-
DA200Series
-
Frequency:
-
47Hz-63Hz
-
Product Name:
-

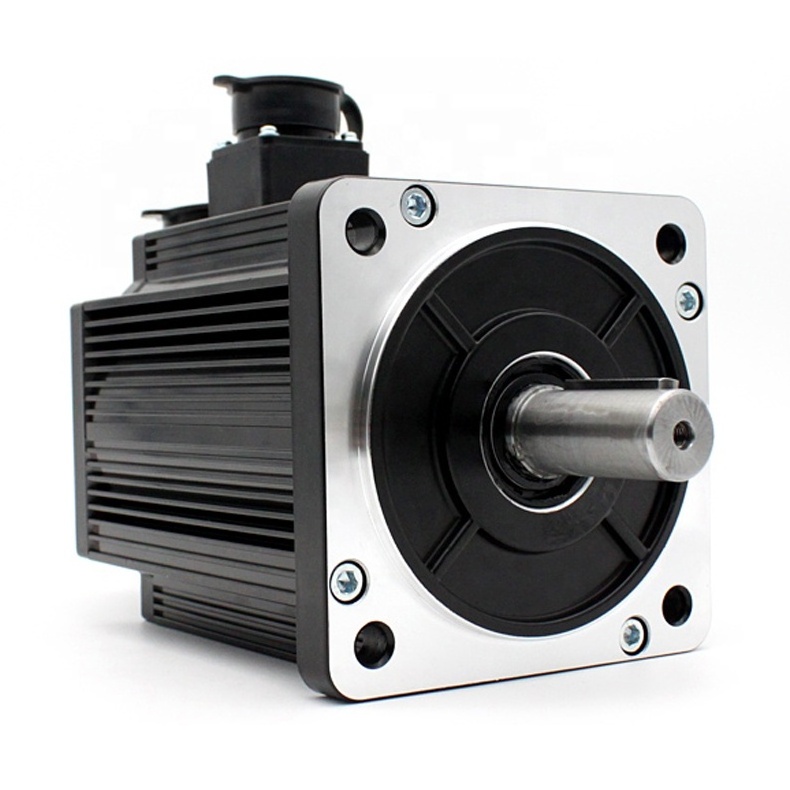

0.1kw~55kw Middle Inertia Servo Motor With CANopen
-
Communication:
-
EtherCAT,CANopen,Modbus,Motionnet,PROFIBUS-DP
-
Encoder Type:
-
2500-wire standard,Multi-ring absolute value,17-bit
-
Protect Function:
-
Over Load,Over Current,Over Voltage,Over Heat,Encoder Fault
-
Insulation Class:
-
Class F(155 ℃)
-
Application:
-
CNC,Packing Machine,Printer,Textile,Plastic Machine
-
Protection Degree:
-
IP65
-
Environment:
-
Temperature:-20℃~50℃(no ice);Humidity:Below 90%(no condensation)
-
Voltage(220V system):
-
1P/3P AC 220V( -15%)~240(+10%) 47Hz~63Hz
-
Voltage(400V system):
-
3P AC 380V( -15%)~440(+10%) 47Hz~63Hz
Quick Details
-
AC Voltage:
-
1P/3P AC 220V( -15%)~240(+10%) 47Hz~63Hz
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
uMOT
-
Model Number:
-
DA200Series
-
Frequency:
-
47Hz-63Hz
-
Product Name:
-
0.1kw~55kw Middle Inertia Servo Motor With CANopen
-
Communication:
-
EtherCAT,CANopen,Modbus,Motionnet,PROFIBUS-DP
-
Encoder Type:
-
2500-wire standard,Multi-ring absolute value,17-bit
-
Protect Function:
-
Over Load,Over Current,Over Voltage,Over Heat,Encoder Fault
-
Insulation Class:
-
Class F(155 ℃)
-
Application:
-
CNC,Packing Machine,Printer,Textile,Plastic Machine
-
Protection Degree:
-
IP65
-
Environment:
-
Temperature:-20℃~50℃(no ice);Humidity:Below 90%(no condensation)
-
Voltage(220V system):
-
1P/3P AC 220V( -15%)~240(+10%) 47Hz~63Hz
-
Voltage(400V system):
-
3P AC 380V( -15%)~440(+10%) 47Hz~63Hz
|
Model
|
SV-DA200
|
|
Frequency
|
47Hz-63Hz
|
|
Output power
|
2kW etc.
|
|
Servo Driver
|
Pulse/EtherCAT/CANopen Servo Driver etc.
|
|
Motor Encoder
|
2500-wiring Encoder Servo Motor
|
|
Power Cable
|
5 Meters etc.
|
|
Encoder Cable
|
5 Meters etc.
|
|
Rated Voltage
|
single phase 220 VAC
|
|
Rated Speed
|
2000rpm etc.
|
|
Maximum speed
|
3000rpm etc.
|
|
Rated torque
|
9.55N.m etc.
|
|
Peak torque
|
28.6N.m etc.
|
|
Rated current
|
9.5A etc.
|
|
Peak current
|
28.5A etc.
|
|
Rotor inertia
|
12.2/14.1kg.cm*cm
|
|
Motor insulation
|
class F(155 Celsius)
|
|
Protection class
|
IP65
|
|
Operation temperature
|
-20 Celsius-+40 Celsius
|
|
Protect Feature
|
Waterproof
|
|
Humidity
|
below 90%RH
|
|
Servo Motor Weight
|
8.4/10.1kg etc.
|
|
Driver Weight
|
3.35kg etc.
|
|
Cooling mode
|
Natural cooling or forced air cooling
|
|
Use environment
|
As far as possible to avoid dust, oil mist and corrosive gases
|
|
Motor Brake
|
depends on your requirment
|
|
Customized
|
Yes(0.1kW-61kW customized)
|
