Quick Details
-
Filling Accuracy:
-
100
-
Voltage:
-
220
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TODAYMACHINE
-
Weight:
-
222 KG
-
After Warranty Service:
-
Online support
-
Marketing Type:
-
New Product 2020
Quick Details
-
Machinery Capacity:
-
4000BPH
-
Packaging Material:
-
Plastic, Glass
-
Filling Material:
-
Water, Oil, Juice
-
Filling Accuracy:
-
100
-
Voltage:
-
220
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TODAYMACHINE
-
Weight:
-
222 KG
-
After Warranty Service:
-
Online support
-
Marketing Type:
-
New Product 2020

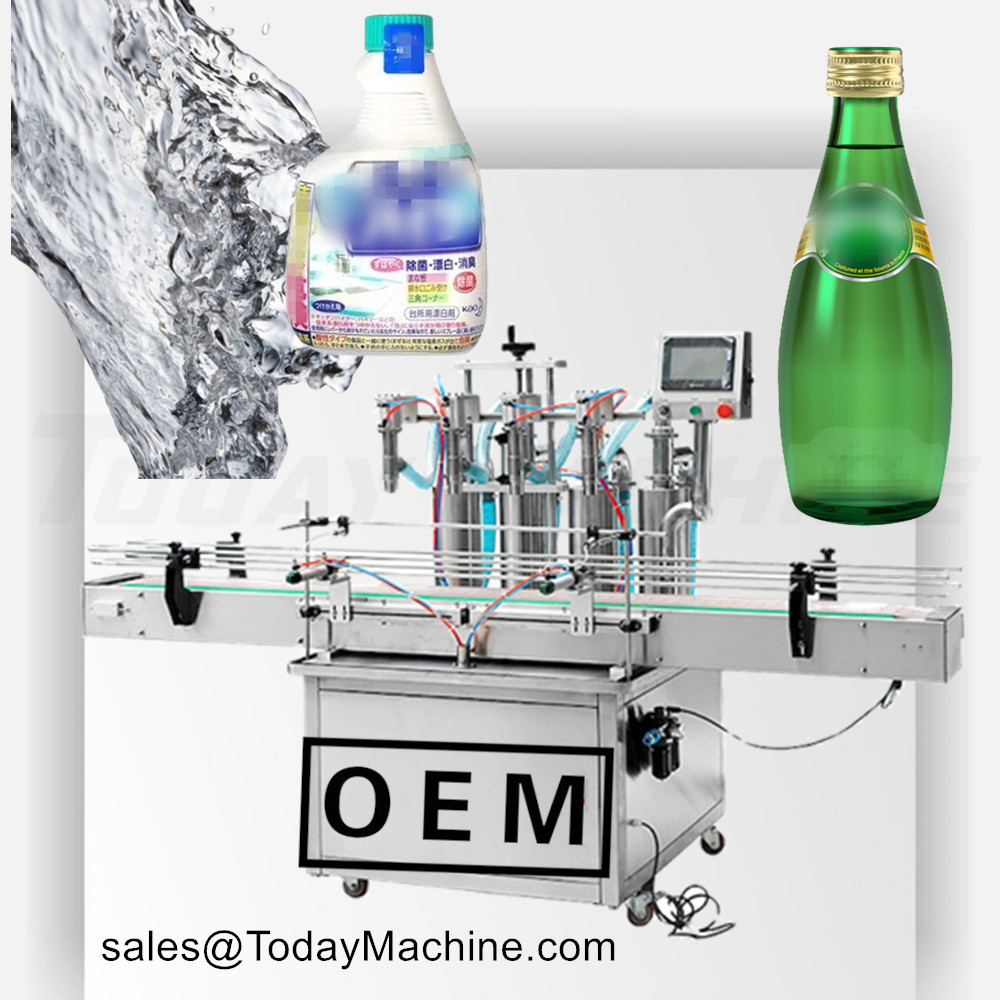

Automatic Liquid Filling Production Line
For Honey, Hand Sanitizer, shower gel, detergent liquid, shampoo, beer, etc.
Product: Liquid, gel, paste, oil, cream …
Container: plastic/glass bottle of round/square/special/hexagon…
Measure pump is piston measure pump, then the piston through across in the pump up-side and down-side movement to-and-fro.
After bottles in right position, the filling head will move up and down at the same time and enter into the bottle for filling
Hold the bottles complete filling for next procedures
|
Model
|
LFL-2H
|
LFL-4H
|
LFL-6H
|
LFL-8L
|
LFL-12H
|
|
Filler head
|
2 head
|
4 head
|
6 head
|
8 head
|
12 head
|
|
Speed
|
5-20
b/min |
10-20
b/min |
10-30
b/min |
15-40
b/min |
30-80
b/min |
|
Range
|
10-100ml
30-300ml 50-500ml 100-1000ml 300-2500ml 1000-5000ml |
10-100ml
30-300ml 50-500ml 100-1000ml 300-2500ml 1000-5000ml |
10-100ml
30-300ml 50-500ml 100-1000ml 300-2500ml 1000-5000ml |
10-100ml
30-300ml 50-500ml 100-1000ml 300-2500ml 1000-5000ml |
10-100ml
30-300ml 50-500ml 100-1000ml 300-2500ml 1000-5000ml |
|
Error
|
Within 0.5g
(when 500ml) |
Within 0.5g
(when 500ml) |
Within 0.5g
(when 500ml) |
Within 0.5g
(when 500ml) |
Within 0.5g
(when 500ml) |
|
Voltage
|
220v/380v
50-60hz |
220v/380v
50-60hz |
220v/380v
50-60hz |
220v/380v
50-60hz |
220v/380v
50-60hz |
|
Air pressure
|
0.5-0.6Mpa
|
0.5-0.6Mpa
|
0.6-1Mpa
|
0.6-1Mpa
|
0.6-1Mpa
|
|
Weight
|
300kg
|
350kg
|
350kg
|
400kg
|
450kg
|
|
Dimention
|
2000x900x1800
mm |
2500x900x2200
mm |
2500x900x2200
mm |
2500x900x2200
mm |
2500x900x2200
mm |
Bottle Weigher Line with belt conveyor
4.
After bottles in right position, the filling head will move up and down at the same time and enter into the bottle for filling
Hold the bottles complete filling for next procedures
|
Model
|
Weigher
|
Circle
|
Range
|
Error
|
Speed
(B/M) |
Power
|
Weight
(kg) |
Dimension
(mm) |
|
DCSL-1H
|
1
|
1 bottle
|
10-100g
50-500g 100-1000g 200-2000g 500-5000g |
±2g
|
10-30
|
220V
2kw |
250
|
2000x900x1890
|
|
DCSL-2H
|
2
|
1 bottle
2 bottle |
10-100g
50-500g 100-1000g 200-2000g |
±2g
|
10-40
|
220V
2.5kw |
300
|
2000x900x1890
|
|
DCSL-4H
|
4
|
1 bottle
2 bottle 4 bottle |
10-100g
50-500g 100-1000g |
±2g
|
10-40
|
220V
3.3kw |
350
|
2000x900x1890
|
|
DCSL-10H
|
10
|
1 bottle
|
10-100g
50-500g 100-1000g |
±2g
|
20-60
|
220V
3.3kw |
400
|
2000x900x1890
|
Bottle Powder Filling Line By Auger With Belt Conveyor
Filling Powder automatically for bottle/can/jar/containers from glass, plastic, tin, aluminum …
Powder from any possible chemical/food/medicine, such as coffee powder, flour, spice, detergent powder, makeup powder …
Touch screen in Multiple Language
Smart tracking one by one, from bottle can jar, any round/square containers possible
Auger container volume options: 8L, 25L, 50L.
|
Model
|
Auger
|
Range
|
Speed
(B/M) |
Accuracy
|
Power
|
Weight
(kg) |
Dimension
(mm) |
|
AFL-1H
|
1
|
1-10g/5-25g
10-100g/25-150g 50-300g 100-500g 200-1000g 500-2000g |
10-30
|
±0.5%
|
220V
3kw |
200
|
2000x900x1850
|
|
AFL-2H
|
2
|
1-10g/5-25g
10-100g/25-150g 50-300g 100-500g 200-1000g 500-2000g |
10-40
|
±0.5%
|
220V
3.6kw |
250
|
2000x900x1850
|
|
AFL-4H
|
4
|
1-10g/5-25g
10-100g/25-150g 50-300g 100-500g 200-1000g 500-2000g |
20-50
|
±0.5%
|
220V
4kw |
300
|
2000x900x1850
|
