Quick Details
-
Function:
-
NIGHT VISION, Loop recording
-
Working Temperature Range:
-
-20 - 70 ℃
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Forescene
-
Model Number:
-
YJ4702
-
Video resolution:
-
1080*720
-
Lens:
-
Single Lens
-
View Angle:
-
90 -170 Customization
-
TV System:
-
PAL NTSC Optional
-
Power supply:
-
DC 12V-24V
-
minimum illumination:
-
0.001LUX/F2.0(IR ON)
-
white balance:
-
auto
-
working temperature:
-
-20℃--+75℃
-
storage temperature:
-
-40℃--+85℃
-
LED:
-
12 pcs 850 IR,scattering 85°
Quick Details
-
Car Fitment:
-
Cadillac, ZHENGTIAN, Universal, HAIMA (ZHENGZHOU), Yamaha Sportboat, GAC NE, wantong, Jacobsen, Abarth, Neta, MAHINDRA RENAULT, xingwang
-
Angle:
-
120°
-
Resolution:
-
720P
-
Function:
-
NIGHT VISION, Loop recording
-
Working Temperature Range:
-
-20 - 70 ℃
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Forescene
-
Model Number:
-
YJ4702
-
Video resolution:
-
1080*720
-
Lens:
-
Single Lens
-
View Angle:
-
90 -170 Customization
-
TV System:
-
PAL NTSC Optional
-
Power supply:
-
DC 12V-24V
-
minimum illumination:
-
0.001LUX/F2.0(IR ON)
-
white balance:
-
auto
-
working temperature:
-
-20℃--+75℃
-
storage temperature:
-
-40℃--+85℃
-
LED:
-
12 pcs 850 IR,scattering 85°

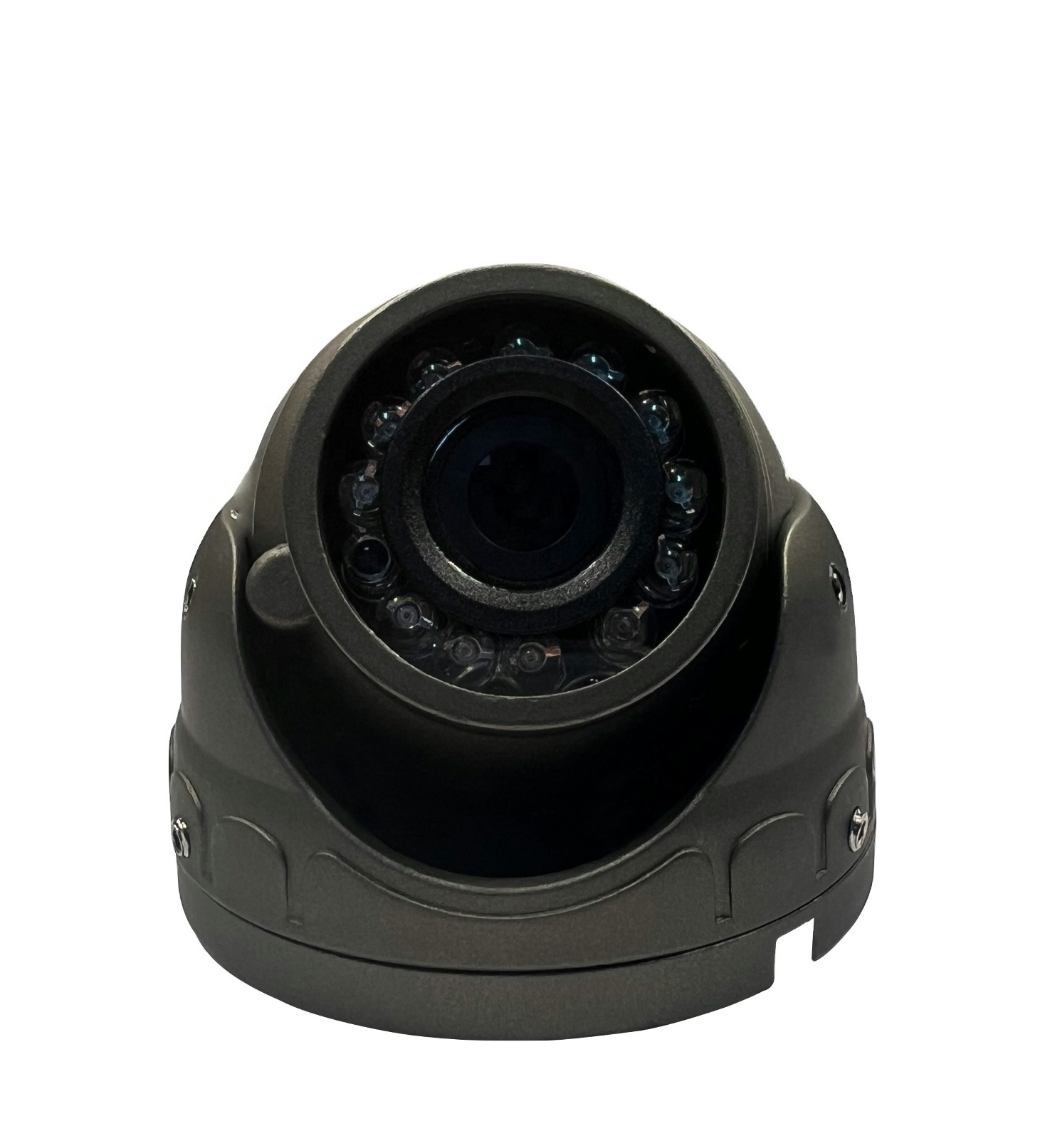

Product Description
Product specifications
| item | part | specification |
| camera | cover material | Aluminum alloy military green, bottom diameter 70mm, height 65mm |
| waterproof | over IP67 | |
| weight | 220g | |
| box size | 10*10*9cm | |
| audio | with audio | |
| Power consumption | DC12V <150mA | |
| PCB board | sensor/DSP | 1/4" |
| resolution | AHD 720P(1280*720) | |
| signal system | PAL/NTSC | |
| minimum illumination | 0.001LUX/F2.0(IR ON) | |
| backlight compensation | auto | |
| electronic shutter | 1/50(1/60)~1/100,000sec | |
| white balance | auto | |
| signal to noise rate | >48DB | |
| gamma correction | >0.45 | |
| synchronization method | inner synchronization | |
| gain control | auto | |
| working voltage | DC12V | |
| working temperature | -20℃--+75℃ | |
| storage temperature | -40℃--+85℃ | |
| Lens | Focal length | 2.8mm |
| cover | 4G glass | |
| aperture | F2.0 | |
| pixel | 1M | |
| light board | LED | 12 pcs 850 IR,scattering 85° |
| material | FR4 | |
| consumption | 190ma(12V) | |
| night vision distance | 8m |
