- Product Details
- {{item.text}}
Quick Details
-
Max. Loading Capacity:
-
60L
-
Weight (KG):
-
12 KG
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WORNER LAB or OEM
-
Voltage:
-
110V/60Hz
-
Dimension(L*W*H):
-
215x310x720mm/250x350x720mm
-
Power (kW):
-
0.5 kW
-
Applicable Industries:
-
LAB
-
After-sales Service Provided:
-
Overseas third-party support available
-
Emulsifying machine USE:
-
laboratory
-
Emulsifying machine No:
-
(WN)AE500S-H 90G/60L
-
Emulsifying machine rated voltage:
-
AC220V
-
Emulsifying machine rated frequency:
-
50/60Hz
-
Warranty period:
-
1 year
-
Manufacturer:
-
Worner Lab
-
Emulsifying machine design:
-
customized
-
Emulsifying machine:
-
Cosmetics Lab Homogenizer Equipment
Quick Details
-
Barrel Volume (L):
-
60
-
Max. Loading Volume (L):
-
60 L
-
Range of Spindle Speed(r.p.m):
-
1000 - 14000 r.p.m
-
Max. Loading Capacity:
-
60L
-
Weight (KG):
-
12 KG
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WORNER LAB or OEM
-
Voltage:
-
110V/60Hz
-
Dimension(L*W*H):
-
215x310x720mm/250x350x720mm
-
Power (kW):
-
0.5 kW
-
Applicable Industries:
-
LAB
-
After-sales Service Provided:
-
Overseas third-party support available
-
Emulsifying machine USE:
-
laboratory
-
Emulsifying machine No:
-
(WN)AE500S-H 90G/60L
-
Emulsifying machine rated voltage:
-
AC220V
-
Emulsifying machine rated frequency:
-
50/60Hz
-
Warranty period:
-
1 year
-
Manufacturer:
-
Worner Lab
-
Emulsifying machine design:
-
customized
-
Emulsifying machine:
-
Cosmetics Lab Homogenizer Equipment
Product Display
|

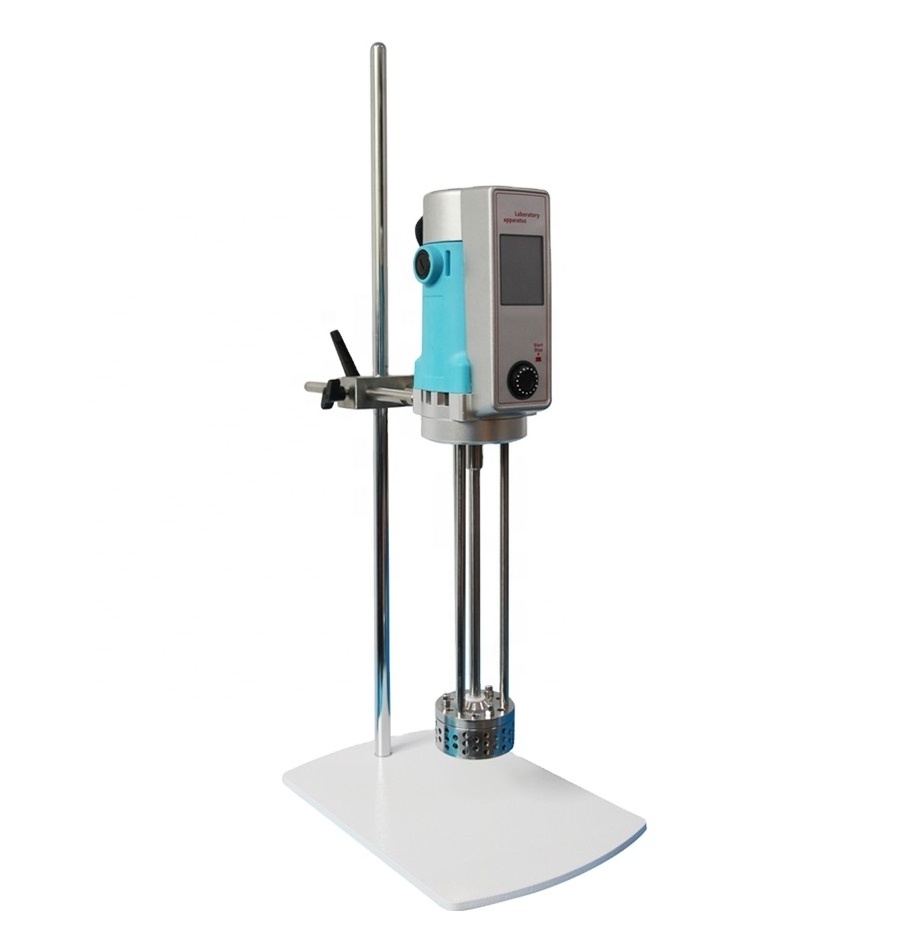

Laboratory shear emulsifying machine adopts structure compact series-excited type miniature high speed motor drive for the Low to medium and High viscosity liquid mixing, crushing particle materials in liquid medium shear emulsification. 1.High Speed
2.Variable Rating Speed Control provide high effect
|
Product Specification
| Emulsifying Machine Data Sheet | ||
| Model | (WN)AE500S-H (70G/40L) | (WN)AE500S-H 90G/60L |
| Rated voltage | AC110V/220V | |
| Rated frequency | 50/60Hz | |
| Standard configuration of stator | 5mm/20mm/50mm | |
| Working head material | SS304 | |
| Working head diameter | 70mm | 90mm |
| Throughput(H2O) | 500~40000ml | 800~60000ml |
| Motor rating input | 850W | 1400W |
| Motor rating output | 500W | 800W |
| Nominal torque | 35N.cm | 70N.cm |
| Speed range | 1000~14000 rpm | 1000~13000 rpm |
| Speed display | Digital speed display | |
| Viscosity max | 8000mPa.s | |
| Permissible ambient temperature | ≤40°C | |
| Permissible relative humidity | ≤80% | |
| Dimensions(mm) | 215x310x720 | 215x310x720 |
| Weight | 9.2kg | 10kg |
