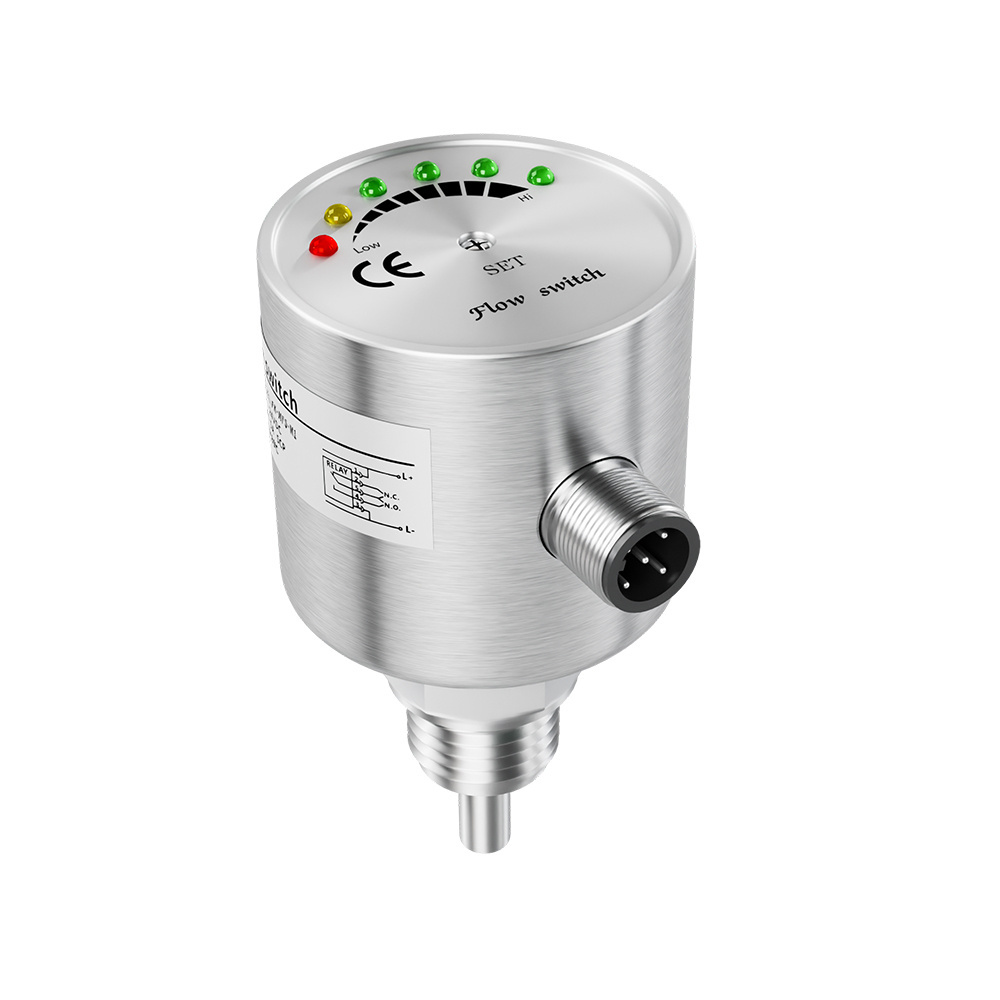

Quick Details
-
Brand Name:
-
FULLKON
-
Model Number:
-
MFS-M
-
Measure Media:
-
Gas,Water,Steam,Oil
-
Accuracy:
-
±1-10 cm/s
-
Operating pressure:
-
< 100Bar
-
Medium temperature:
-
-20...80℃
-
Threaded connection:
-
G1/2,G1/4,etc.(customized)
-
Power supply:
-
24VDC/85~265VA(50...60Hz)
-
Sensor length:
-
15mm/20mm/30mm/60mm(customized)
-
Current consumption:
-
< 100mA
-
Protection class:
-
IP67
-
Material:
-
ANSI316L
Quick Details
-
Type:
-
Flow Sensors, Flow switch
-
Warranty:
-
12 months
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
FULLKON
-
Model Number:
-
MFS-M
-
Measure Media:
-
Gas,Water,Steam,Oil
-
Accuracy:
-
±1-10 cm/s
-
Operating pressure:
-
< 100Bar
-
Medium temperature:
-
-20...80℃
-
Threaded connection:
-
G1/2,G1/4,etc.(customized)
-
Power supply:
-
24VDC/85~265VA(50...60Hz)
-
Sensor length:
-
15mm/20mm/30mm/60mm(customized)
-
Current consumption:
-
< 100mA
-
Protection class:
-
IP67
-
Material:
-
ANSI316L
Products Description
|
Parameters
|
|
|
|
Measuring range
|
Water:3-300cm/s
|
|
|
|
Gas:200-3000cm/s
|
|
|
|
Oil:3-300cm/s
|
|
|
Switch accuracy
|
±1-10 cm/s
|
|
|
Warm-up time
|
3 minutes after power on
|
|
|
Operating pressure
|
< 100Bar
|
|
|
Medium temperature
|
-20...80℃
|
|
|
Threaded connection
|
G1/2,G1/4,etc.(customized)
|
|
|
Power supply
|
24VDC/85~265VA(50...60Hz)
|
|
|
Sensor length
|
15mm/20mm/30mm/60mm(customized)
|
|
|
Current consumption
|
< 100mA
|
|
|
Protection class
|
IP67
|
|
|
Material
|
ANSI316L
|
|
|
Response time
|
5(2...15)s
|
|
