Quick Details
-
Maximum Torque:
-
6.4N.m
-
Operating Speed:
-
24000rpm/min
-
Product name:
-
9kw air-cooled metal milling electric spindle motor
-
Lubrication method:
-
Grease
-
Frequency:
-
400Hz
-
Speed:
-
24000rpm
-
Cooling mode:
-
Air cooling
-
Voltage:
-
380±10%/220V±10%
-
Electric current:
-
18A/32A
-
Rated power:
-
7.5/9.0KW
Quick Details
-
Place of Origin:
-
Shandong, China
-
Weight (KG):
-
28
-
Brand Name:
-
CC+
-
Maximum Torque:
-
6.4N.m
-
Operating Speed:
-
24000rpm/min
-
Product name:
-
9kw air-cooled metal milling electric spindle motor
-
Lubrication method:
-
Grease
-
Frequency:
-
400Hz
-
Speed:
-
24000rpm
-
Cooling mode:
-
Air cooling
-
Voltage:
-
380±10%/220V±10%
-
Electric current:
-
18A/32A
-
Rated power:
-
7.5/9.0KW

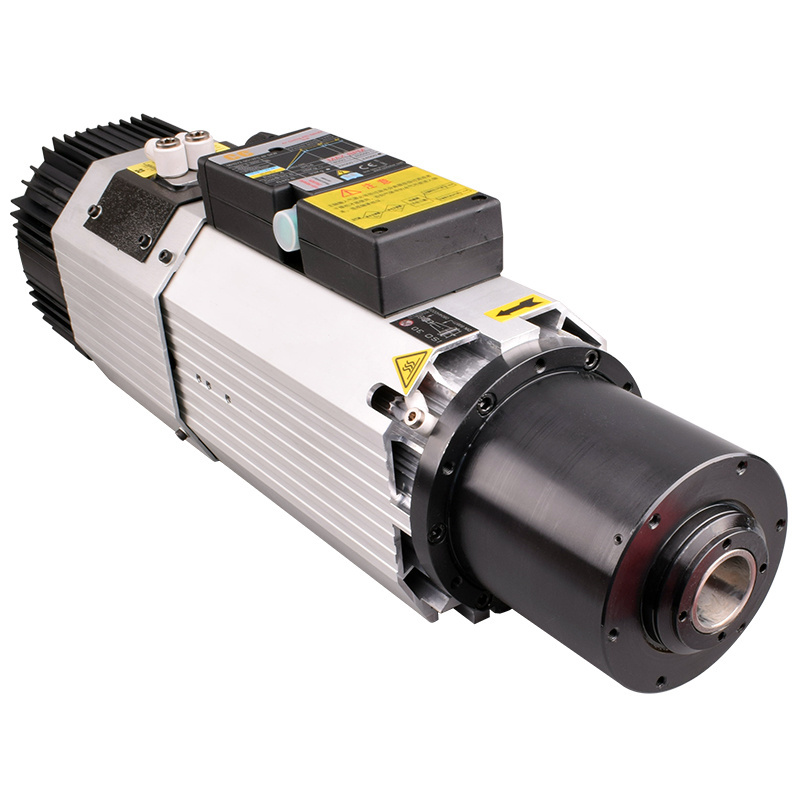

CC+ ISO30 9kw 24000rpm cnc Atc spindle motor
Product Detail
High precision
High precision dynamic balancing testing is conducted on all rotatable parts, with the tolerance value of less than G0.4.
Protection grade IP54
The airtight shaft bracket made of extruded aluminum raises the protetion class of electrospindles to be IP54 and protects internal parts from the threat of dust.
P4 grade angular contact bearing or ceramic ball bearings are used.
With such bearings, the strength and stiffness of electrospindles are greatly improve the strength and rigidity of electro-spindle, and its speed can up to 24000 RPM/min.
Independent electric fans are required for cooling and used as active cooling devices.
In such case,even when electrospindles
stop running, independent electric fans can still provide adequate air for cooling and keeps noise at a rather low level.
stop running, independent electric fans can still provide adequate air for cooling and keeps noise at a rather low level.
Product Paramenters
|
Terminal connection type
|
Y type
|
Δ type
|
|
|
Rated Voltage
|
380V±10%
|
220V±10%
|
|
|
Rated Current
|
18A
|
32A
|
|
|
Rated Speed
|
12000rpm(400HZ)
|
|
|
|
Max Speed
|
24000rpm(800HZ)
|
|
|
|
Rated Power
|
7.5kw(9.0kw)
|
|
|
|
Rated Torque
|
6.4NM
|
|
|
|
Pole-pairs
|
4
|
|
|
|
Insulation grade
|
H
|
|
|
|
Cooling
|
Fan cooling
|
|
|
|
Weight
|
26kg
|
|
|
We also have many other types of spindles.
Please feel free to contact us if you have any questions or needs.
Please feel free to contact us if you have any questions or needs.
