Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
penghui
-
Dimension(L*W*H):
-
2.4*1.1*0.9m
-
Weight:
-
220 KG
-
Product name:
-
Factory Supply Single-Row 2-Row Combined Sweet Potato Peanut Harvester
-
Function:
-
potato/garlic/peanut Harvester
-
Cutting width (mm):
-
Customer requirement
-
Color:
-
Customerized
-
Engine:
-
Gasoline Engine
-
Item:
-
Agriculture Equipment
-
Power:
-
24-35HP
-
Model:
-
Harvester machine
-
Productivity:
-
Potato harvester machine
-
After Warranty Service:
-
Spare parts
Quick Details
-
Number of Rows:
-
2
-
Working Width(mm):
-
800 mm
-
Tractor Power(HP):
-
24 - 35 HP
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
penghui
-
Dimension(L*W*H):
-
2.4*1.1*0.9m
-
Weight:
-
220 KG
-
Product name:
-
Factory Supply Single-Row 2-Row Combined Sweet Potato Peanut Harvester
-
Function:
-
potato/garlic/peanut Harvester
-
Cutting width (mm):
-
Customer requirement
-
Color:
-
Customerized
-
Engine:
-
Gasoline Engine
-
Item:
-
Agriculture Equipment
-
Power:
-
24-35HP
-
Model:
-
Harvester machine
-
Productivity:
-
Potato harvester machine
-
After Warranty Service:
-
Spare parts

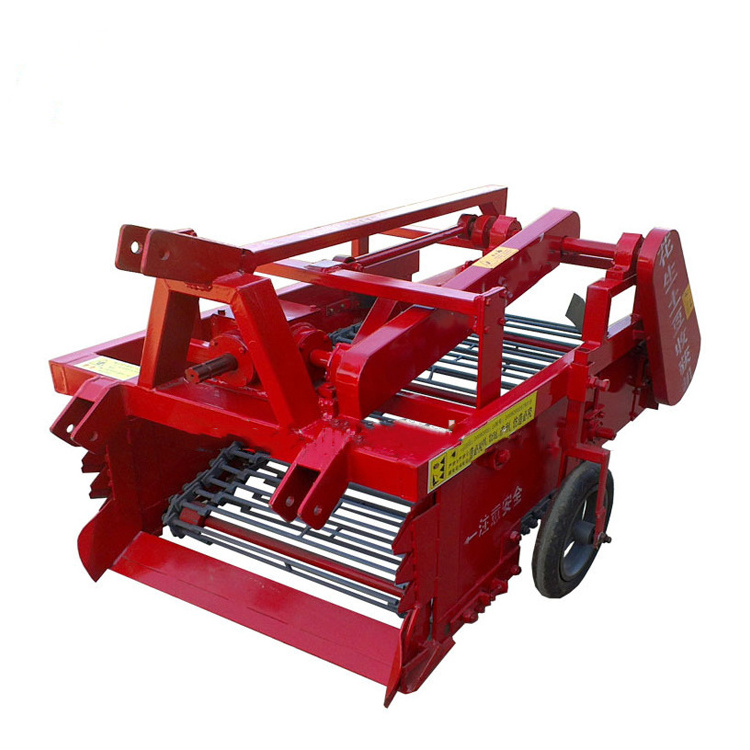

Factory Supply Single-Row 2-Row Combined Sweet Potato Peanut Harvester
Usage of sweet potato harvester :
It is used for reap potato,sweet potato,peanut,onions, garlic , chinese yam,taro and other ground crops.
Introduction of sweet potato harvester :
This series sweet potato harvester machine not only used for peanut and also for sweet potato, garlic, onion and other root crops.This machine is composed by seeding-cut equipment, ground wheel, digging blade, conveying chain, sorting screen etc. So it could finish from seeding cutting to sorting in one time. And also it is designed by intermediate transmission or left-side transmission, so this machine could be driven by different PTO types tractors.
Features and advantages of sweet potato harvester :
1.The good performance and high efficiency.
2.With harvest efficiency, not to hurt the skin, can be harvested with a seedling, running light and no vibration, no blocking grass, earth leakage fast, simple structure, long service life.
3.National patent products, domestic initiative.
4.The most important is that our machines can be directly extracted soil residual plastic sheeting, does not affect crop growth next quarter.
Parameters of sweet potato harvester :
|
Model |
PH-650 |
PH-650A |
PH-800 |
PH-1300 |
|
Rows |
Single |
Single hand tractor |
Single |
Double |
|
Harvest width |
65cm |
65cm |
80cm |
130cm |
|
Weight |
200kg |
200kg |
220kg |
560kg |
|
Power |
22-35 HP |
8-15 HP |
24-35 HP |
35-50 HP |
|
Working depth |
25cm |
20-25cm |
25cm |
25cm |
|
Revolving speed (RPM) |
560/1250 |
560 |
560/1250 |
560 |
|
Size |
2.4*0.9*0.9m |
0.8*0.8*0.7m |
2.4*1.1*0.9m |
2.8*2.2*1.0m |
PACKAGE:
Standard export wooded box packing.
DELIVERY TIME:
3-20 days after confirming order.Accurate delivery date depends on shipping statue.
1.Are you manufacturer?
Yes, we are manufacturer with more than 20 years' experience.
2. What is your guarantee of machine ?
Usually our guarantee is 1 years.
3.About the machine voltage or power of machine ?
Usually in our country is 220v,50hz, single phase , or 380v, 50hz, 3 phase .if you have the special requirement , pls tell us, we will vetify the voltage according to your requirement.
4.How to install the machine ?
We can help by vedio, email ,picture.I f large project , we can arrange the worker help you to install it in your country .
5.Can you ship the machine to my address?
Yes, Please provide us with your address.
6.Where are you? Can we go to China and visit your factory?
Yes, of course. We are in Henan, China. Welcome to our factory
7.Can you offer us the necessary paper to do the customs clearance?
Yes, of course. We will send you the commercial invoice, sales contract, packing list, bill of lading(FOB or CFR, CIF terms), insurance policy (if CIF terms), also CO if you need.
