Quick Details
-
Color Temperature(CCT):
-
2700-6500k
-
Input Voltage(V):
-
AC85-265V
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-40 - 60
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Bamboo
-
Model Number:
-
LLIL-040S
-
Product name:
-
led linear lighting fixture
-
Power:
-
20w 30w 40w 60w
-
Size:
-
2ft-5ft
-
Color:
-
3000K/4500K/6000K
-
LED Chip:
-
2835
-
Material:
-
Aluminum+ps
-
Installation:
-
Suspended Reccessed Mounted
-
Warrranty:
-
3-5 year
-
Voltage:
-
AC85~265V 50/60Hz
-
Packing:
-
Neutral Packing
Quick Details
-
Warranty(Years):
-
5
-
Lamp Luminous Efficiency(lm/w):
-
130
-
Lamp Body Material:
-
Aluminum Alloy
-
Color Temperature(CCT):
-
2700-6500k
-
Input Voltage(V):
-
AC85-265V
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-40 - 60
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Bamboo
-
Model Number:
-
LLIL-040S
-
Product name:
-
led linear lighting fixture
-
Power:
-
20w 30w 40w 60w
-
Size:
-
2ft-5ft
-
Color:
-
3000K/4500K/6000K
-
LED Chip:
-
2835
-
Material:
-
Aluminum+ps
-
Installation:
-
Suspended Reccessed Mounted
-
Warrranty:
-
3-5 year
-
Voltage:
-
AC85~265V 50/60Hz
-
Packing:
-
Neutral Packing
Product Description
Products series

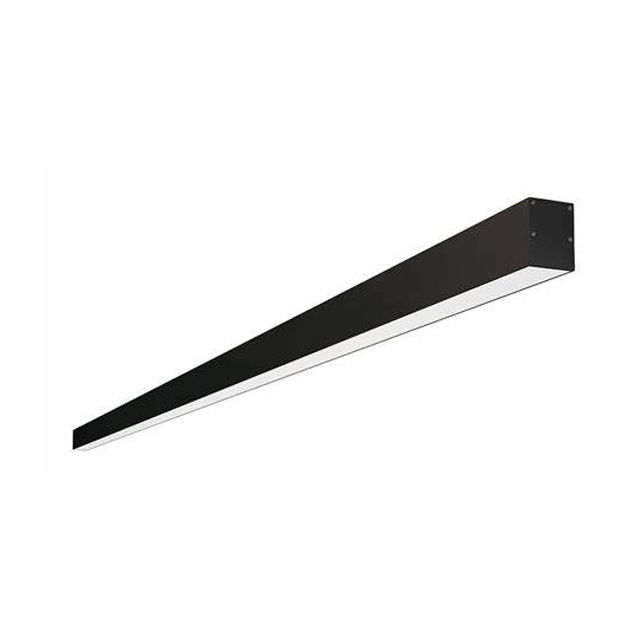

linear light pendant 40w black white silver mounted aluminum strip light led linear lighting fixture-LLIL-040S-2
|
Power
|
20w
|
30w
|
40w
|
60w
|
|||
|
Voltage
|
AC85-265V 50/60Hz
|
|
|
|
|||
|
Size
|
600*70*40mm
|
900*70*40mm
|
1200*70*40mm
|
1500*70*40mm
|
|||
|
Chip
|
SMD2835
|
|
|
|
|||
|
Driver
|
Constant current No flicker driver
|
|
|
|
|||
|
Lumen
|
110-130lm/w
|
|
|
|
|||
|
CCT
|
3000-3500k / 4000-4500k / 6000-6500k
|
|
|
|
|||
|
IP class
|
IP44
|
|
|
|
|||
|
Beam angle
|
120°
|
|
|
|
|||
|
CRI
|
80
|
|
|
|
|||
|
PF
|
0.5/0.9
|
|
|
|
|||
|
Materials
|
Aluminum + pmma/ps
|
|
|
|
|||
|
Frame
|
White / Silvery
|
|
|
|
|||
|
Pass
|
CE / RoHS / SAA / FCC / ETL / KC / TUV / BIS
|
|
|
|
|||
|
Warranty
|
3-5 year
|
|
|
|
|||
|
Installtion
|
Recessed / Mounted / Suspended
|
|
|
|
|||
P
roduct structure
led linear lighting fixture led pendant light aluminum profile led lighting lamps office linear light.
Installation
Firstly, Thank you for your buying Bamboo LED Linear Lights, To ensure minimum experience, please install it according to these instructions and then pas the instruction to appropriate person for retention and future reference.
Installation Precautions :
1: Please check the lamp carefully before installing.
2: Ensure the power is offer before wiring and installation.
3: To help ensure it's longevity, please do not use this lamp in corrosive conditions.
4: If there is any damage to the lamp cord, please cut off the power and stop using it immediately.
5: Please do not retrofit the lamp within the warranty period.
6: To ensure normal work of the lamp, please use the voltage indicated on the packing.
Warnings :
1: Please install the lamp according to instructions of this user guide.
2: To avoid any injuries from fallen lamp or electric shock, please do not retrofit this lamp at random.
General troubleshooting :
If the lamp is installed properly, Please figure out whether the failure is caused by following situations. If all following
resolutions do not work, please stop using immediately and contact professionals or retailers for help.
1: If the lamp does not work, please cut off the power and then check whether the power cord of lamp is properly connected with mains supply.
2: If connected properly, please ask a professional to check the input voltage or circuit.
Routine maintenance ：
1: To ensure better lighting, please clean LED lights once a year.
2: Please make sure the power is off before your maintenance work.
3: To avoid any damage to the lamp, please do not use chemical solvent during routine maintenance.
4: If you need to replace any components or cords of the lamp, please choose those having the same specifications.
2: Ensure the power is offer before wiring and installation.
3: To help ensure it's longevity, please do not use this lamp in corrosive conditions.
4: If there is any damage to the lamp cord, please cut off the power and stop using it immediately.
5: Please do not retrofit the lamp within the warranty period.
6: To ensure normal work of the lamp, please use the voltage indicated on the packing.
Warnings :
1: Please install the lamp according to instructions of this user guide.
2: To avoid any injuries from fallen lamp or electric shock, please do not retrofit this lamp at random.
General troubleshooting :
If the lamp is installed properly, Please figure out whether the failure is caused by following situations. If all following
resolutions do not work, please stop using immediately and contact professionals or retailers for help.
1: If the lamp does not work, please cut off the power and then check whether the power cord of lamp is properly connected with mains supply.
2: If connected properly, please ask a professional to check the input voltage or circuit.
Routine maintenance ：
1: To ensure better lighting, please clean LED lights once a year.
2: Please make sure the power is off before your maintenance work.
3: To avoid any damage to the lamp, please do not use chemical solvent during routine maintenance.
4: If you need to replace any components or cords of the lamp, please choose those having the same specifications.
Application
LED Linear Light widely use in many indoor, such as: office, hospital, school, store and other place.
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, Wthin Moq need 5-7 days, other quantity need to be discuss.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-3-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, Wthin Moq need 5-7 days, other quantity need to be discuss.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-3-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
