Quick Details
-
Model Number:
-
KR2-11 201 Black
-
Max. Current:
-
6A/10A 250VAC
-
Mechanical Life:
-
50000 Cycles
-
IP level:
-
IP65
-
Certification:
-
CE,CQC,CCC,TUV
-
Contact Resistance:
-
50m OR LESS Ω
-
Insulation Rsistance:
-
DC 500V 100 OR MORE
-
Dielectric Strength:
-
AC 1500V FOR 1 Min
-
Electric Life cycles:
-
10,000CYCLES
-
Max Rating Current Voltage:
-
16A 250VAC T125/55 20A 125VAC 20A 250VAC 25A 250VAC 30A 250VAC
-
Electric Type:
-
ON-OFF,ON-OFF W/LAMP,ON-ON,ON-OFF-ON,(ON)-OFF-(ON),ONLY LAMP
-
Rating:
-
15A 250VAC,10A 250VAC,20A 250VAC,25A 250VAC,30A 250VAC
-
Actuator Type:
-
Arc rocker,waterproof cap,cat eye
-
Voltage:
-
110VAC,220vac,12vdc,24vdc
Quick Details
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SINETONG
-
Model Number:
-
KR2-11 201 Black
-
Max. Current:
-
6A/10A 250VAC
-
Mechanical Life:
-
50000 Cycles
-
IP level:
-
IP65
-
Certification:
-
CE,CQC,CCC,TUV
-
Contact Resistance:
-
50m OR LESS Ω
-
Insulation Rsistance:
-
DC 500V 100 OR MORE
-
Dielectric Strength:
-
AC 1500V FOR 1 Min
-
Electric Life cycles:
-
10,000CYCLES
-
Max Rating Current Voltage:
-
16A 250VAC T125/55 20A 125VAC 20A 250VAC 25A 250VAC 30A 250VAC
-
Electric Type:
-
ON-OFF,ON-OFF W/LAMP,ON-ON,ON-OFF-ON,(ON)-OFF-(ON),ONLY LAMP
-
Rating:
-
15A 250VAC,10A 250VAC,20A 250VAC,25A 250VAC,30A 250VAC
-
Actuator Type:
-
Arc rocker,waterproof cap,cat eye
-
Voltage:
-
110VAC,220vac,12vdc,24vdc

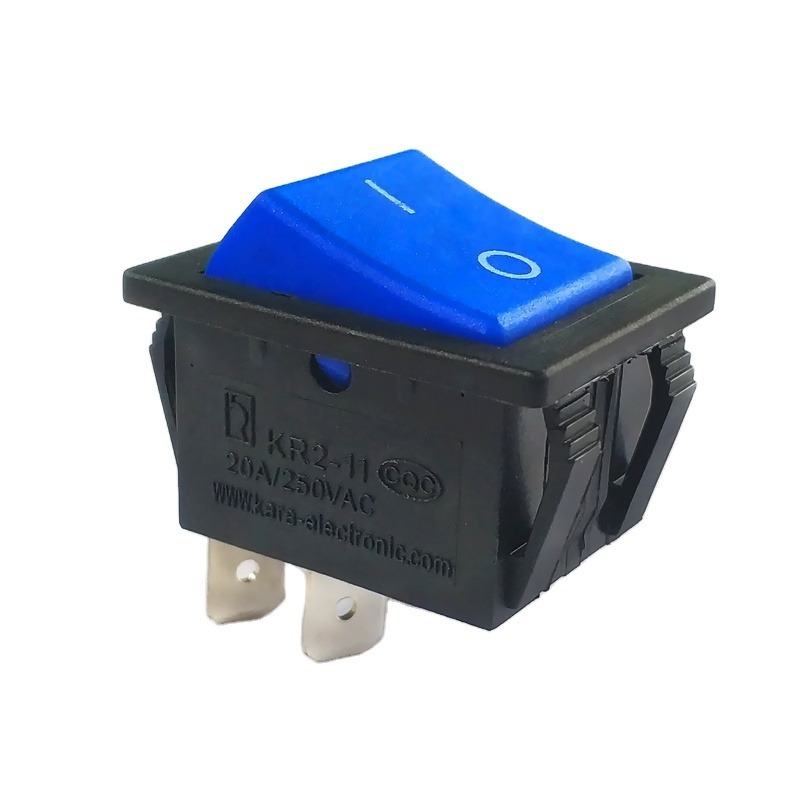

SINETONG KR2-11 Blue Square Head Rocker Switch 12V 24V DC 4 Pin 30A 250VAC Power Botton Swtiches
Products Description
|
Rating
|
TUV 10A/250VAC
|
|
|
CE 16A/250VAC
|
|
Electrical Life:
|
10000cycles
|
|
Mechanical Life :
|
50000cycles
|
|
Operating Temperature :
|
T85
|
|
Termination :
|
Standard is solderless 250"(6.35mm)
Wide*0.032"(0.81mm)thick |
|
Certifications
|
IEC 61058
|
