Quick Details
-
Frequency:
-
27.12MHZ
-
Welding Area:
-
460*610 mm
-
Dimensions:
-
660*1420*1690 mm
-
Use:
-
Blister and paper card welding
-
Weight (KG):
-
320 KG
-
Power (kW):
-
5
-
Working speed:
-
400-600 pcs/H
-
Rectifier:
-
Silicon Diode
-
Vibration tub:
-
7T85RB
-
Gap of electrodes:
-
250mm
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Looker
-
Voltage:
-
AC380V
-
Frequency:
-
27.12MHZ
-
Welding Area:
-
460*610 mm
-
Dimensions:
-
660*1420*1690 mm
-
Use:
-
Blister and paper card welding
-
Weight (KG):
-
320 KG
-
Power (kW):
-
5
-
Working speed:
-
400-600 pcs/H
-
Rectifier:
-
Silicon Diode
-
Vibration tub:
-
7T85RB
-
Gap of electrodes:
-
250mm
Product Description

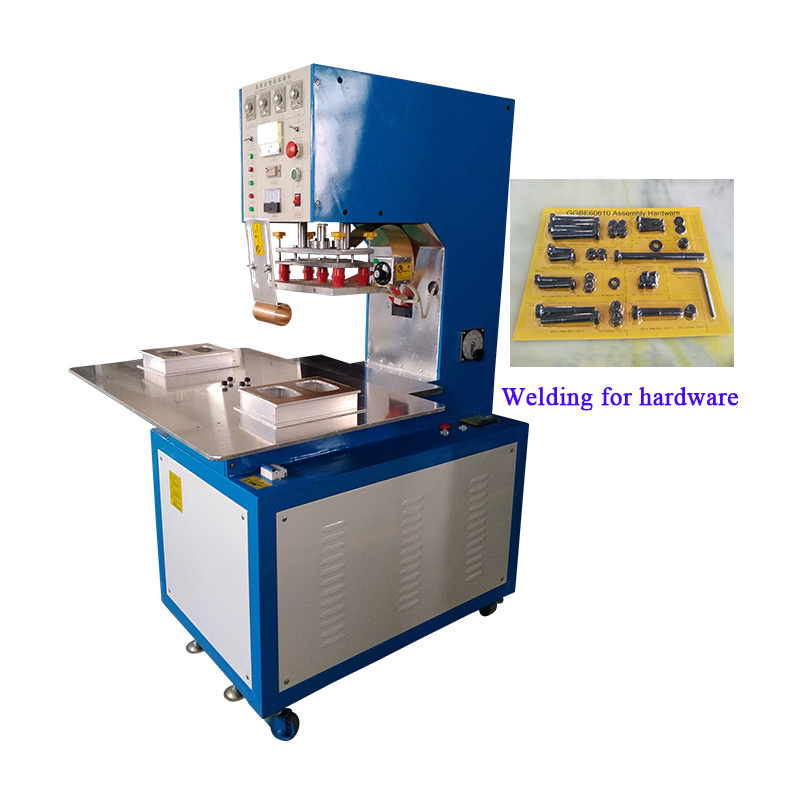

5Kw Blister and paper card high frequency induction welding machine
Good Sealing Effect
Specification
|
Model
|
LK-5000A
|
|
Voltage
|
AC380V
|
|
Frequency
|
27.12MHZ
|
|
Welding Area
|
460*610 mm
|
|
Dimensions
|
660*1420*1690 mm
|
|
Weight (KG)
|
320
|
|
Power (KW)
|
5
|
|
Working speed
|
400-600 pcs/H
|
|
Rectifier
|
Silicon Diode
|
|
Vibration tub
|
7T85RB
|
|
Gap of electrodes
|
250mm
|
Application
It’s suitable for welding Blister&Blister, Blister&Paper card, Paper card&Paper card. Widely used in stationery, toys, electronic products, hardware, cosmetic etc.
Features:
1 Using vacuum tubes, the output power is stable and reliable.
2. Sensitive spark over-current protection circuit. Can effectively cut off due to damage to host large current output, suppress sparks.
3 Has a frequency stabilizer and high frequency shielding devices, the high-frequency interference to a minimum.
4 Manually adjust the mould by the four corners horizontal adjustment, adjust die easily.
5 Can be automatically completed secondary welding process, improve work efficiency.
6 Stepless temperature heating system, make work more efficient.
7.Automatic over-current protection system, increase the service life of vacuum tubes, protect the mould.
8. International standard industrial band of 27.12 MHz.
1 Using vacuum tubes, the output power is stable and reliable.
2. Sensitive spark over-current protection circuit. Can effectively cut off due to damage to host large current output, suppress sparks.
3 Has a frequency stabilizer and high frequency shielding devices, the high-frequency interference to a minimum.
4 Manually adjust the mould by the four corners horizontal adjustment, adjust die easily.
5 Can be automatically completed secondary welding process, improve work efficiency.
6 Stepless temperature heating system, make work more efficient.
7.Automatic over-current protection system, increase the service life of vacuum tubes, protect the mould.
8. International standard industrial band of 27.12 MHz.
Packing & Delivery
Bubble foam for inside package
Firm plywood case for outside package
Shipped by sea or air
