Quick Details
-
Certification:
-
CCC
-
Form:
-
Horizontal
-
Model:
-
110-4d
-
Color:
-
Silver
-
Max power:
-
5.2kw
Quick Details
-
Displacement (ml):
-
100cc
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
LUOJIA
-
Certification:
-
CCC
-
Form:
-
Horizontal
-
Model:
-
110-4d
-
Color:
-
Silver
-
Max power:
-
5.2kw
General Features
Styling And Superb Ride Qualities.
40 years motorcycle manufacture history
ISO9001 and ISO14001 certified

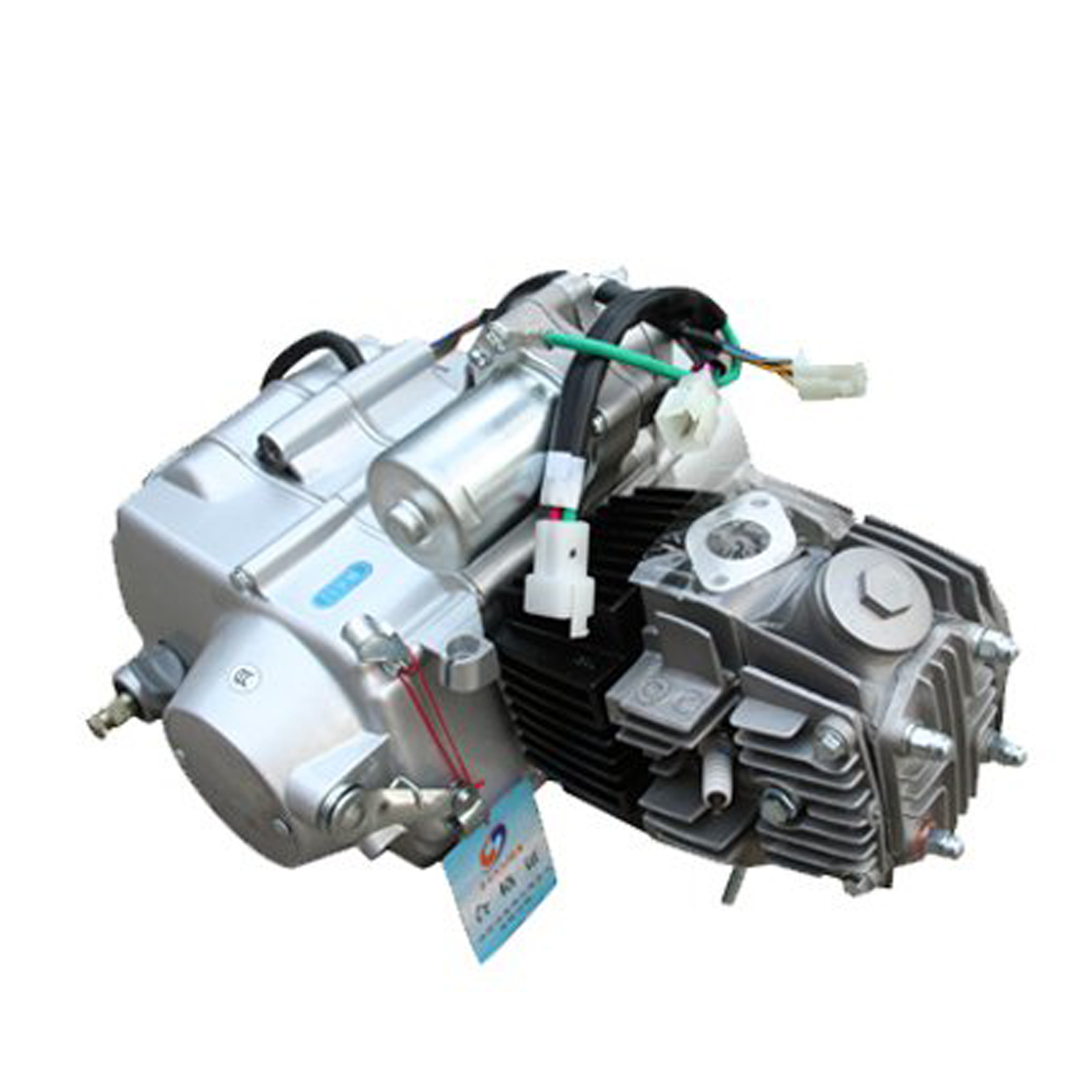

100cc Horizontal Motorcycle Cub engine
Good accelerating performance
Specification
Types : Single-cylinder, horizontal,air cooled,4-stroke
Displacement(ml) : 97
Dimission(LxWxH)(mm) : 450 x 310 x 260
Net Weight(kg) : 20.5
Rated power:(Kw/r/Min) : 4.9/7500r/min
Max.power(Kw/r/Min) : 5.2/8000r/min
Max.torque(N.m/r/min): 6.9/6500r/min
Compression Ratio : 8.6:1(8.8:1)
Cylinder diameter x stroke(mm): 50.0 x 49.5
Ignition type : CDI
Lubrication type : Pressure,splash combined type
Min Fuel consumption(g/km.h): ≤367
Starting type: Electric/Kick
Clutch mode : Wet-multi-plated
Gearshift type : N←→1←→2←→3←→4←→N
Transmission ratio: primary:4.058; last:2.571
I gear:2.833 II gear:1.706 III gear:1.238 IV gear:0.958
Performance description
The 100cc air cooled engine power output of 5.2KW provides smooth sailing on major roads with a max speed of approx 85KMH. the 100cc motorcycle engine 4 stroke air cooled engine is responsive and gives lots of power.
Powered by a 4 stroke 110cc engine: the 100 is extremely fuel efficient and very environmentally friendly. Responsive Air-cooled engine provides a lively rush of power while ensuring clean emissions and low fuel costs.
The 100 has the grunt to outpace the rest of the traffic off the mark, and allows you to maintain the advantage to a comfortable
top speed of 85KMH. With an electric start (kick start backup) and CVT Automatic Transmission this 100 is incredibly easy to ride.
Factory View and Certificates
We are one of professional manufacturers in China specialized in research, manufacture and selling motorcycles, engines and spare parts. We strictly implement the ISO9001:2000 quality management system, ISO 14001:2004 environment management system, and the state CCC certification. With 40 years experience in motorcycles manufacturing and cooperation with high quality HONDA C100-H technology, our products are both excellent in quality and reasonable in price.
Warranty
We offer a six months warranty on Motor and frame. Buyers are required basic repair skills such as using general tools; replacing nuts and bolts, filters, light bulbs, fluids, etc.
