Quick Details
-
Brand Name:
-
G5
-
Model Number:
-
E-010-OPS-N
-
Warranty:
-
12 Months
-
Product Name:
-

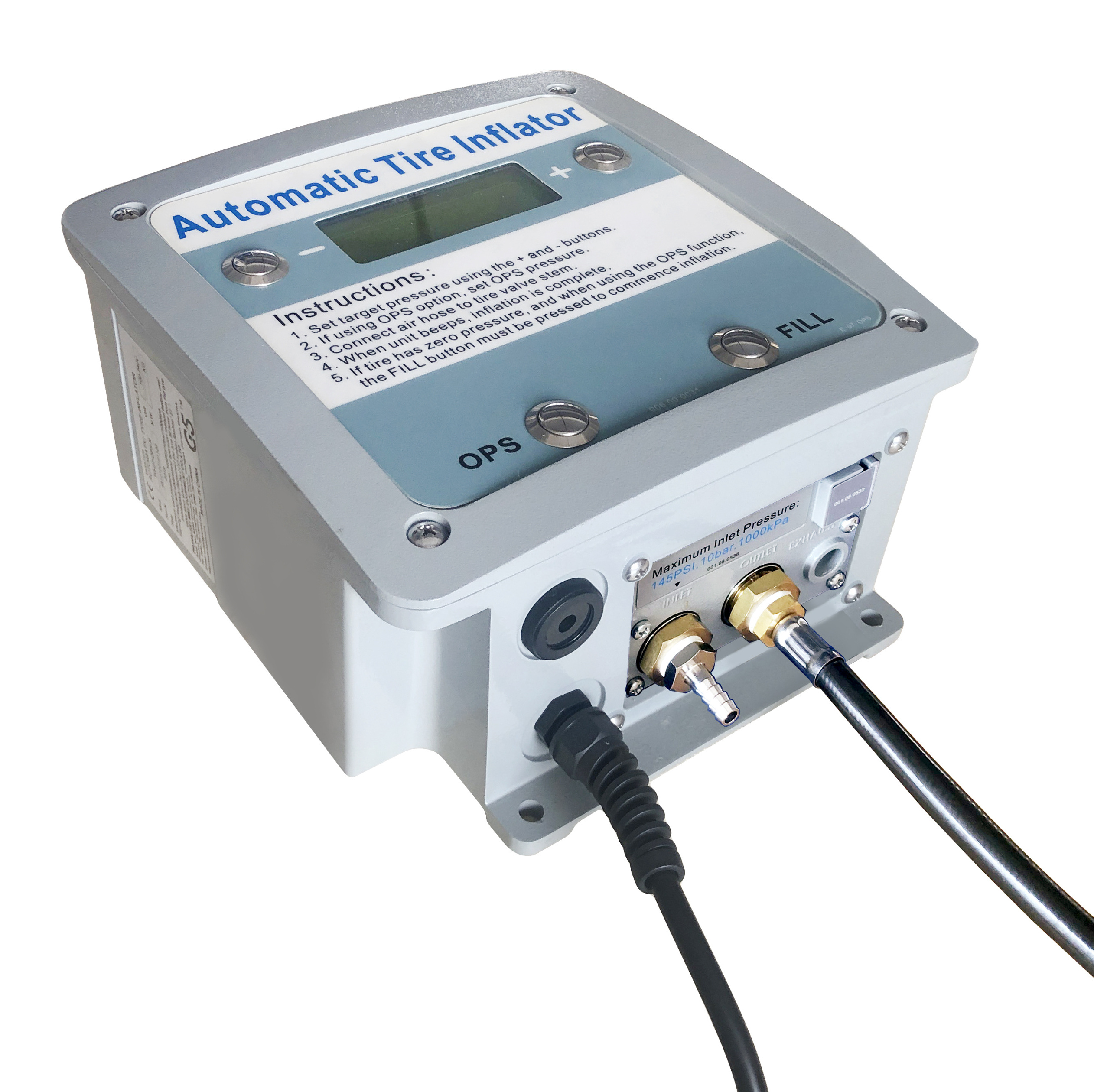

Wall-Mounted Automatic Digital Tyre Inflator
-
Product Model:
-
E-010-OPS-N
-
Application:
-
Workshop and Tyre Shop
-
Working Voltage:
-
100-240Vac
-
Swtich:
-
Vandal Resistant Mechanical Switches
-
Accuracy:
-
china factory
-
Display:
-
Backlight LCD Display
-
Feature:
-
Digital Automatic Tyre Inflation
-
Material:
-
Iron Cabinet
-
Working Condition:
-
Both High and Low Temperature
Quick Details
-
Car Fitment:
-
HONDA
-
Size:
-
290mm*230mm*120mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
G5
-
Model Number:
-
E-010-OPS-N
-
Warranty:
-
12 Months
-
Product Name:
-
Wall-Mounted Automatic Digital Tyre Inflator
-
Product Model:
-
E-010-OPS-N
-
Application:
-
Workshop and Tyre Shop
-
Working Voltage:
-
100-240Vac
-
Swtich:
-
Vandal Resistant Mechanical Switches
-
Accuracy:
-
china factory
-
Display:
-
Backlight LCD Display
-
Feature:
-
Digital Automatic Tyre Inflation
-
Material:
-
Iron Cabinet
-
Working Condition:
-
Both High and Low Temperature
Product Description
Specification
| E-010-OPS-N Wall-Mounted Automatic Digital Tyre Inflator | |
| Main Feature | |
| 1. Rugged and durable diecast aluminium enclosure | |
| 2. Fully automated, fully programmable, micro-processor controlled conversion system | |
| 3. Suit for: Motorcycle, Car, Light Truck, Bus * | |
| 4. Indoor | |
| Technical Data: | Specification |
| Power Requirement:100-240Vac 50/60Hz | 1. E-010-OPS-N: Adjustable over pressure setting (OPS) |
| Power Consumption:10VA | 2. Auto-start inflation |
| Operating Temperature Range:-20°C/-4°F to 70°C/158°F | 3. Automatic zero drift adjustment |
| Max Inlet Air/Nitrogen Supply:160PSI /11bar /1100kPa | 4. Remain at last setting |
| Operating Range:5-145PSI/0.3-10bar/35-1000kPa | 5. Comprehensive diagnostics and error reporting |
| Over Pressure Setting Range:0-29PSI/0-2.0bar/0-200kPa | 6. Audible and visual end of the cycle signal indicators |
| Accuracy:±1PSI/0.07bar/7kPa | 7. Large backlight LCD display |
| Resolution:1PSI/0.1bar/5kPa | 8. Vandal resistant mechanical switches |
| Units of Measurement:PSI/bar/kPa |
9. Suits Standard nitrogen bottle/Direct nitrogen
supply from generator/Air compressor |
|
Dimensions (Height*Width*Depth):290mm*230mm*120mm
11.4"*9.1"*4.7" |
10. 1 Nos.*10M/32.8ft standard hose with
single clip-on open type chuck |
| Net Weight:4kg/8.8lbs |
11.Options available:Operating range:
5-174PSI/0.3-12bar/35-1200kpa With ON/OFF switch |
| Gross Weight:6.5kg/14.3lbs | |
| Packing Size (Height*Width*Depth):170mm*500mm*290mm | |
