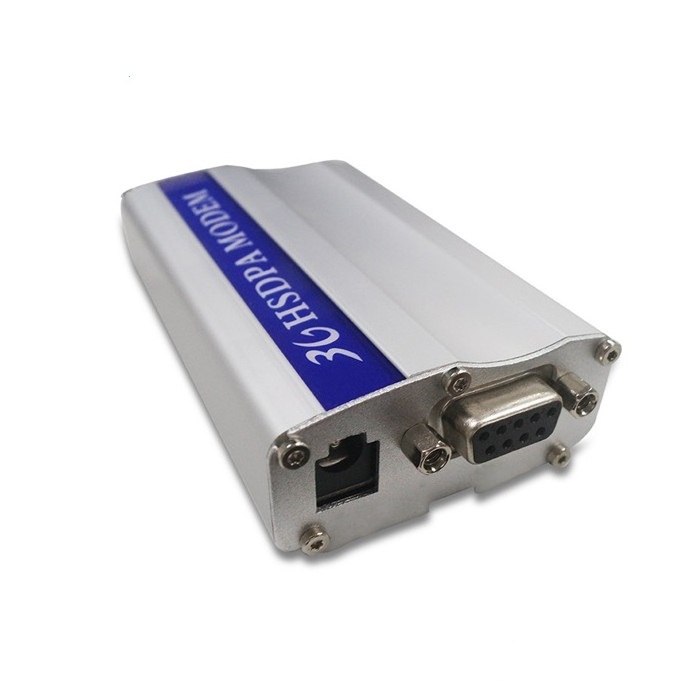

RS232/USB 3G HSDPA/HSUPA/GPS modem

RS232/USB 3G HSDPA/HSUPA/GPS modem

General features

1. Industrial design
2. Aluminum casing
3. RS232+USB interface
4. Based on Simcom module SIM5218E
5. With TCP/IP stack
6. WCDMA/HSDPA/HSUPA 900/1900/2100MHZ
7. GSM/GPRS/EDGE:850/900/1800/1900MHZ
8. GPRS class 12
9. EDGE class 12
10. UMTS/HSDPA 3GPP release 5
11. UMTS/HSUPA 3GPP release 6
12. GSM 3GPP release 99
13. LED for power and GSM signal
14. Jack for earphone
15. GSM antenna connector
16. GPS antenna connector
17. SIM application toolkit
18. 1.8-3V SIM card slot
19. Internet,GPS, data and SMS service
20. Output Power
21. Class 4(2W 900/ 900MHz GSM)
22. Class 1(1W 1800/1900MHz GSM)
23. Class 3 (0.25W 850/1900/2100MHZ UMTS)
24. Input voltage 9V-24V DC
25. Input current 1A-2A
26. Standby current 56mA
27. Working current 100-140mA
28. Working temperature -30 to +80 degrees
29. Storage temperature -40 to +85 degrees
30. Size 85*54*25mm
31. Weight 100g
32. Accessories: AC/DC adaptor, DB9 RS232 cable, USB cable, earphone, GSM antenna, GPS antenna, 2 mounting plates, CD

Spec for Data

1. HSDPA Max. 7.20 mbps (DL)
2. HSDPA Max. 5.76 mbps (UL)
3. WCDMA Max. 384 Kbps (DL), Max.384Kbps (UL)
4. EDGE Max. 236. 8 Kbps (DL),Max118 Kbps (UL)
5. GPRS Max. 85.6 Kbps (DL), Max.42.8 Kbps (UL)
6. CSD 2.4/4.8/9.6/ 14.4kbps, Non-transparent mode
7. GPRS coding scheme CS 1-4
8. EDGE coding scheme MCS 1-9
9. PAP,PPP, PBCCH USSD
10. UMTS R99

Spec for SMS

1. MO, MT,CB
2. SMS Cell broadcast
3. Text and PDU mode

Spec for voice

1. HR
2. FR
3. EFR
4. AMR
5. DTMF

Spec for GPS

1. A-GPS, MS-Based, MS-Asisted
2. Stand-alone GPS
3. Receiver 12 channels, GPS L1 1575.42 MHz, C/A code
4. NMEA-0183
