Quick Details
-
Voltage:
-
380 or Customized
-
Power:
-
4kw
-
Dimension(L*W*H):
-
1400X650X1450mm
-
Weight (KG):
-
1300
-
Name:
-
Air Power Forging Hammer
-
Advantage:
-
High Efficiency Metal Forging Equipment
-
Falling mass:
-
40kg
-
Maximum strike energy:
-
0.53kj
-
strick per minute:
-
245s/m
-
Maximum section of square steel forged:
-
55X55mm
-
forge maximum diameter of round steel:
-
65mm
-
Operating range height:
-
245mm
-
Electric motor speed:
-
1440rpm
-
Electric motor power:
-
4kw
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Wadley
-
Machine Type:
-
Metal forging machine
-
Voltage:
-
380 or Customized
-
Power:
-
4kw
-
Dimension(L*W*H):
-
1400X650X1450mm
-
Weight (KG):
-
1300
-
Name:
-
Air Power Forging Hammer
-
Advantage:
-
High Efficiency Metal Forging Equipment
-
Falling mass:
-
40kg
-
Maximum strike energy:
-
0.53kj
-
strick per minute:
-
245s/m
-
Maximum section of square steel forged:
-
55X55mm
-
forge maximum diameter of round steel:
-
65mm
-
Operating range height:
-
245mm
-
Electric motor speed:
-
1440rpm
-
Electric motor power:
-
4kw
Features of the air hammer .
the pneumatic hammer is strong power, low noise, simple structure, convenient operation, flexible motion, and convenient
installation, maintenance.
1, the machine has the air compression organs, just power on is ok, the machine can operate, no need other devices.
installation, maintenance.
1, the machine has the air compression organs, just power on is ok, the machine can operate, no need other devices.
2, the air cyclinder has the lubricating device , before starting the machine , just shake the lubricating shank to lubricate.
3, easy operation. just use pedal or hand shank to do what you want to do. such as single hitting , continous hitting, lifting
hammer, and so on. the hit power can be controlled.
3, easy operation. just use pedal or hand shank to do what you want to do. such as single hitting , continous hitting, lifting
hammer, and so on. the hit power can be controlled.
Customer Feedback
Product Description

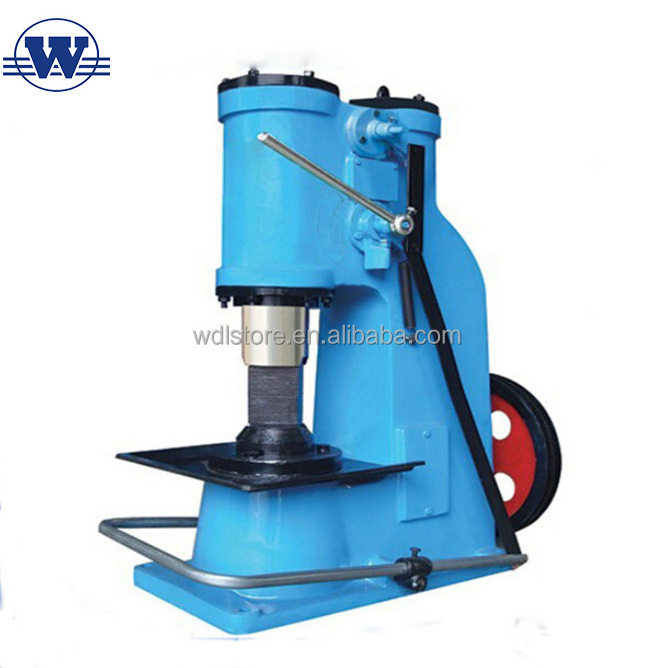

25kg/40kg/65kg/75kg metal iron forge punching air pneumatic hammer machine
Pneumatic Hammer Forging Machine is a kind of free forging equipment. It has two cylinders. The compression cylinder compresses the air and sends it to the working cylinder through the distribution valve. It pushes the piston and the hammer to move up and down to hammer. The operation is flexible. Various free forgings: such as extension, upsetting, punching, shearing, forging, torsion, bending, etc., all kinds of open die forging can be carried out using the pad mold, and the whole air hammer is suitable for small manufacturing and repair industries. Also suitable for forging a variety of agricultural machinery, mining products.
Four Colors Choose
Size Information
|
Model
|
C41-16KG
|
C41-25KG
|
C41-55KG
|
C41-75KG
|
C41-150KG
|
C41-400KG
|
|
Weight of failling parts(KG)
|
16
|
25
|
55
|
75
|
150
|
400
|
|
Max.hit energy(KJ)
|
0.18
|
0.27
|
0.7
|
1
|
2.2
|
9.5
|
|
Height of working area(mm)
|
180
|
240
|
265
|
300
|
370
|
530
|
|
Hit number(min)
|
258
|
250
|
230
|
210
|
180
|
120
|
|
Dimension of top and bottom die surface(LxW mm)
|
70x40
|
100x50
|
120x55
|
145x65
|
200x85
|
240x120
|
|
Max. square steel can be forged(Diameter mm)
|
20x20
|
40x40
|
52x52
|
65x65
|
130x130
|
220x220
|
|
Max. round steel can be forged(Diameter mm)
|
Φ 22
|
Φ 45
|
Φ 68
|
Φ 85
|
Φ 145
|
Φ 240
|
|
Rate power(kw)
|
1.5
|
3/2.2
|
5.5
|
7.5
|
15
|
37
|
|
Speed of motor(r.p.m)
|
1440
|
1440
|
1440
|
1440
|
1470
|
1480
|
|
Total weight(kg)
|
240
|
560
|
1700
|
2800
|
5060
|
12800
|
|
Overall dimensions(L x W x H mm)
|
660x420x970
|
980x510x1200
|
1320x670x1620
|
1400x760x1950
|
2080x12
|
|
Detailed Images
Belt drive, connected with motor, can mitigate load impact, operate stably, with low noise and vibration. The transmission structure is simple and easy to adjust. The belt pulley transmission has the function of overload protection.
Dovetail type is easy to install and replace and customer can choose any shapes.
Driven by compressed air, it is widely used in casting extension, punching, etc
Humanized design, light beat and heavy beat, arbitrary.
The platform can increase the height and stability, and customers can choose to purchase according to their personal needs.
It is equipped with an elevated base, which can increase stability at the same time. It can meet the needs of different customers, and the base needs to be paid extra.
Custom anvil
Physical anvil
Air hammer accessories
Product packaging
