Quick Details
-
Voltage:
-
DC12v
-
Current:
-
3.1A
-
Pull force:
-
600g at stroke 8mm
-
Max on time:
-
90s
-
Life expected:
-
Over 500,000 cycles
-
Application:
-
home appliance
-
Material:
-
Mild Steel, Copper Coil
-
Size:
-
37*20*26mm
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Boshun
-
Model Number:
-
BS-0837
-
Voltage:
-
DC12v
-
Current:
-
3.1A
-
Pull force:
-
600g at stroke 8mm
-
Max on time:
-
90s
-
Life expected:
-
Over 500,000 cycles
-
Application:
-
home appliance
-
Material:
-
Mild Steel, Copper Coil
-
Size:
-
37*20*26mm

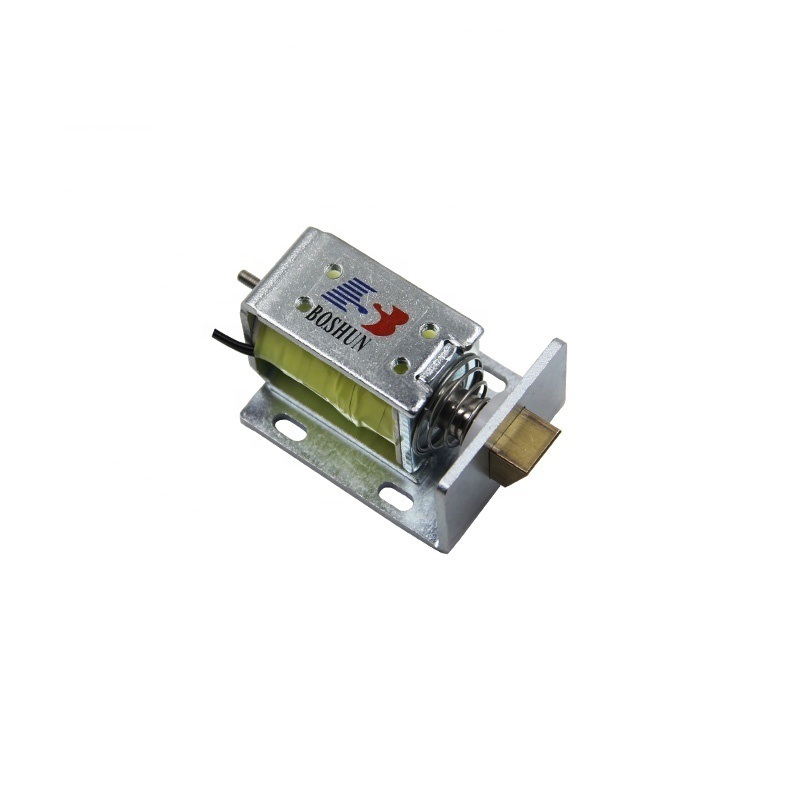

BS-0837S-136 home appliance solenoid lock dc 12v open frame electric solenoid lock
Production Display
Parameters&Drawing
| P/N: | BS-0837S-136 |
| TEST | |
| Enviroment Temperature Range: | -30℃~+80℃ |
| Relative Humidity: | 5%~95%RH |
| Rated Voltage: | DC12V |
| Power Wattage: | 40W |
| Resistance: | DC12V,R=3.6Ω±10% |
| ELECTRIC | |
| Working Voltage:: | DC12V±10% |
| Force (Potence): | Pull force at 5mm≥900g |
| Insulation Resistance: | DC500V,≥50MΩ |
| Duty cycle: | ON:OFF=0.05s:0.45s |
| Biometry: | Above 200,000 cycles |
