Quick Details
-
Brand Name:
-
MEH
-
Model Number:
-
MEH-GF40
-
Max. Current:
-
32A
-
Product Name:
-
Solar DC Isolator Switch
-
Application:
-
Solar Pv System
-
Type:
-
Neutral Isolator Switch
-
Function:
-
ON-OFF
-
Rated Current:
-
32A
-
Material:
-
Copper
-
Number Of Poles:
-
4P
-
Protection degree:
-
IP66
-
Waterproof:
-
Included
-
Certification:
-
CE,TUV, CE
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
1200V DC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
MEH
-
Model Number:
-
MEH-GF40
-
Max. Current:
-
32A
-
Product Name:
-
Solar DC Isolator Switch
-
Application:
-
Solar Pv System
-
Type:
-
Neutral Isolator Switch
-
Function:
-
ON-OFF
-
Rated Current:
-
32A
-
Material:
-
Copper
-
Number Of Poles:
-
4P
-
Protection degree:
-
IP66
-
Waterproof:
-
Included
-
Certification:
-
CE,TUV, CE
LW30 series Rotary Isolator Switch

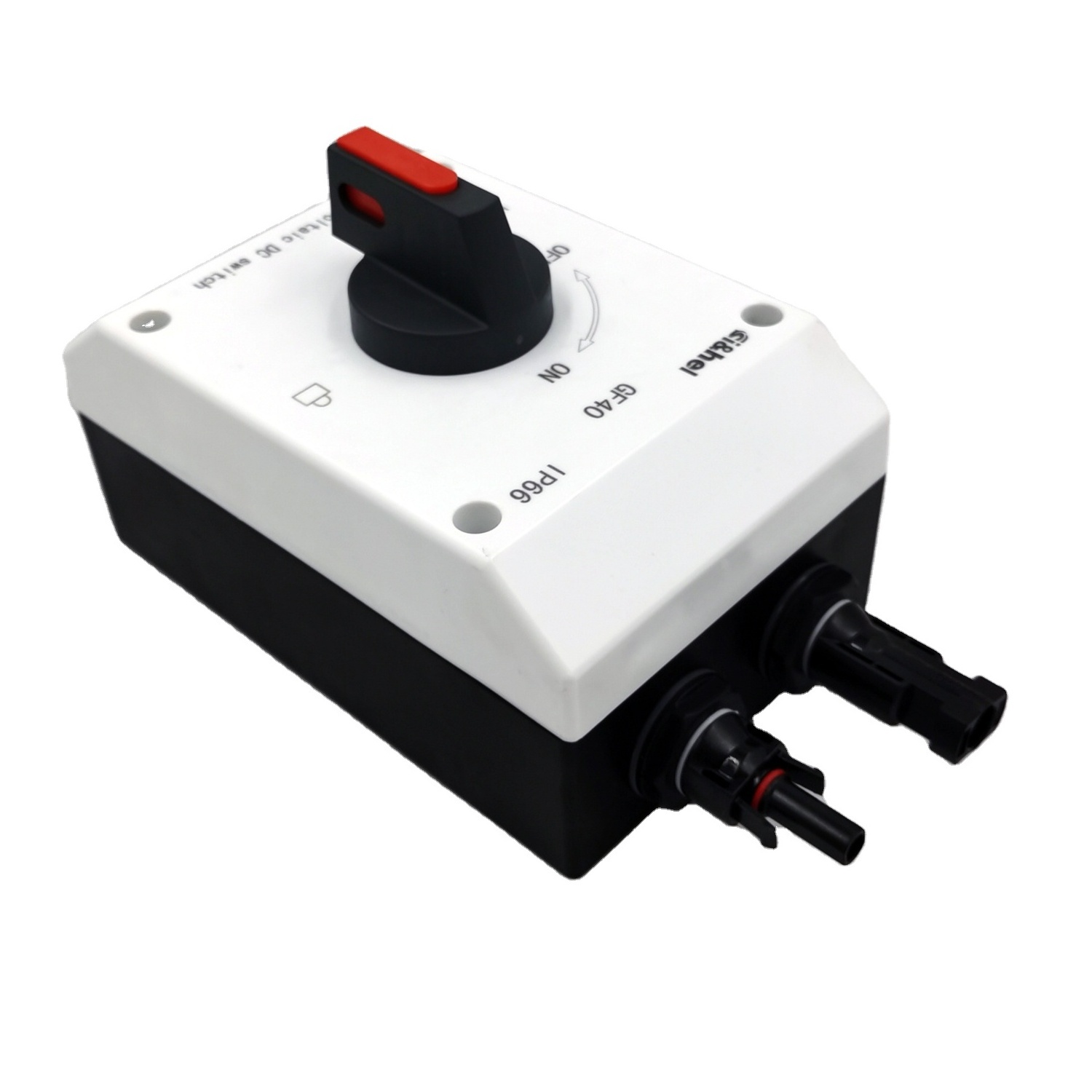

Waterproof IP66 Solar DC 1500V 40A PV Photovoltaic Isolator Isolating Switch with 2 pairs solar Connectors
Safety design:
- We offer a comprehensicve range of isolating switches designed with safety in mind.
- In stand-alone and enclosed formats, this switch range are padlockable and available in yellow/red or grey/black makeing it ideal for any electrical isolation requirement, such as repair, maintenance, installation and inspection.
Features:
1. Compact and suitable where space is limited.
2. Load-breaking up to 8 times rated current making it ideal for motor isolation.
3. Double-break with silver rivets- superior performance, reliability and long lasting.
4. Padlockable handle- tamper-proof.
5. Highly visible red handle.
6. DC1000VDC 40A.
Technical parameters:
- Rated voltage: DC 1000V
- IP Rating: IP66
- Connection Type: SOLAR, M20, M25
- Working Temperature: -5 °C-+60 °C
- Standard: IEC 60947-3
- DC-PV1 DC-PV2 DC-21B
|
Model |
MEH-GF40 |
|
Pole |
3P/4P |
|
Rated voltage |
1000VDC to 1200VDC |
|
Rated current |
32A |
|
Dimensions |
245*104*75mm |
|
Waterproof degree |
IP66 |
|
Breaking capacity |
1000/1700 |
|
Certificate |
CE/CB/TUV/IEC/SAA |
|
Standards |
IEC60947-3 |
|
Ambient temperature |
-25 ℃ -- +85 ℃ |
|
Insulated voltage |
DC 1500V |
|
Connection type |
M20 M25 |
