- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
jiuduan
-
material:
-
carbon steel ,201SUS,304SUS
-
Contract manufacture:
-
Contract manufacture
-
Accept:
-
OEM
-
Diameter:
-
25 38 50 60 76 89
-
Guarantee:
-
12 months
-
Application:
-
Roller Conveyor
-
Feature:
-
High quality low cost
Quick Details
-
Warranty:
-
12 Months
-
Weight (KG):
-
3
-
Marketing Type:
-
Hot Product 2021
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
jiuduan
-
material:
-
carbon steel ,201SUS,304SUS
-
Contract manufacture:
-
Contract manufacture
-
Accept:
-
OEM
-
Diameter:
-
25 38 50 60 76 89
-
Guarantee:
-
12 months
-
Application:
-
Roller Conveyor
-
Feature:
-
High quality low cost
Product Description

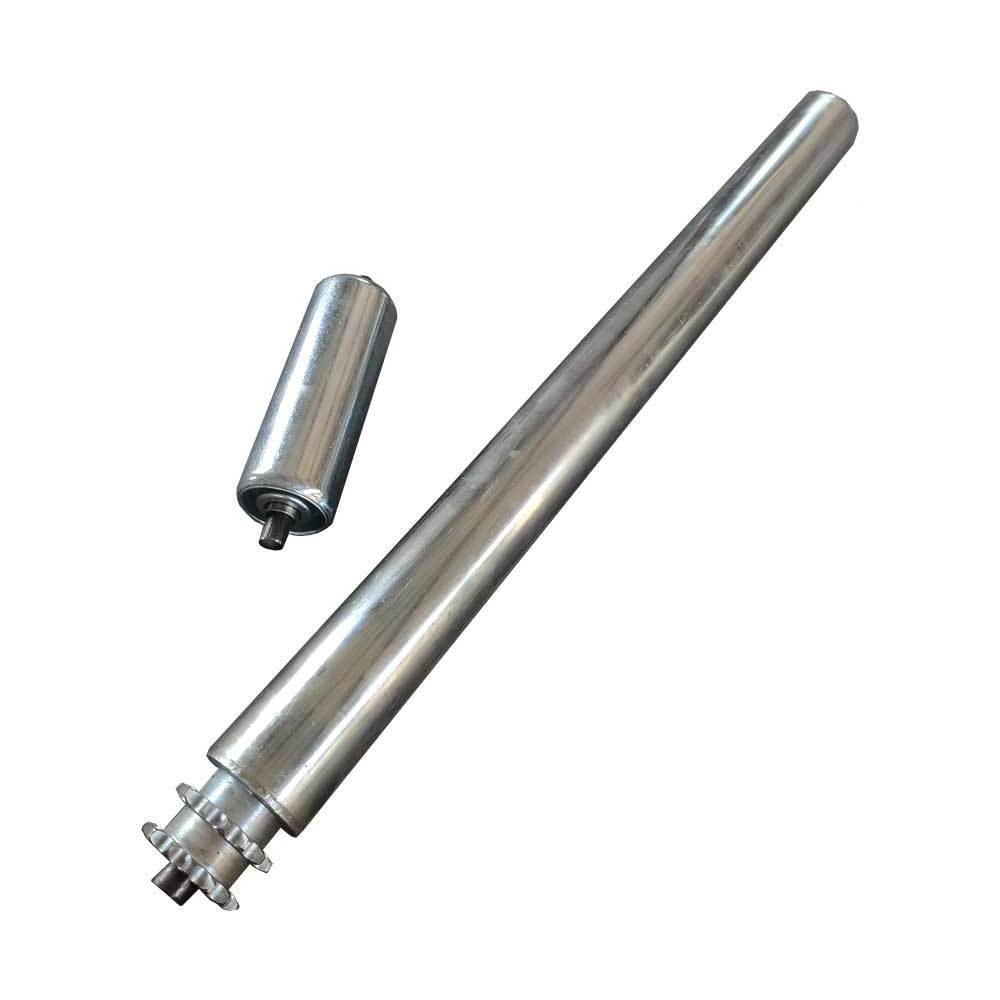

Single And Double Row Sprocket Accumulating Roller Plastic Steel Or Stainless Steel With Strong Drive Drum
we provide all kinds of conveyor idlers,such as parallel to the roller, spherical roller, buffer roller, roller screw, corrosion-resistant roller,spiral roller,trough roller,guiding roller,vertical roller block, the advantage of high precision and best tolerance ensure idlers long working life.
|
Specification
|
|
|
|
Diameter
|
25-89mm
|
|
|
Length
|
100-2000mm
|
|
|
Tube
|
45# steel(GB) equal to C45，201SUS,304SUS
|
|
|
Shaft
|
45# steel(GB) equal to C45，201SUS,304SUS
|
|
|
Bearing
|
Single & Double Row Deep Groove Ball Bearing 2RZ&2Z wigh C3 clearance
|
|
|
Grease
|
Lithium soap type grease,grease retaining inner seal with Multi-stage Labyrinth and Retention Cap with Outboard Rubbing Flinger Seal
|
|
|
Lubrication
|
Grease is Lithium soap type grease with Rust Inhibitors
|
|
|
Welding
|
Mixed gas shielded arc welding end
|
|
|
Painting
|
Ordinary painting, hot galvanized painting, electric static spraying painting, baked painting
|
|
|
Standard Diameter(mm)
|
Roller Thickness (mm)
|
Roller Length
(mm) |
Shaft Diameter
(Min-Max) |
Tube Material
|
|
|
φ25
|
T=0.8/1.0/1.2
|
100-2000
|
φ8
|
Carbon Steel
Stainless Steel |
|
|
φ38
|
T=1.0/1.2/1.5
|
100-2000
|
φ12
|
3.0mm-4.0mm
|
|
|
φ50
|
T=1.0/1.2/1.5/2.0
|
100-2000
|
φ12/φ15
|
3.0mm-4.0mm
|
|
|
φ57
|
T=1.0/1.2/1.5/2.0
|
100-2000
|
φ12/φ15
|
3.5mm-4.0mm
|
|
|
φ60
|
T=1.2/1.5/2.0
|
100-2000
|
φ12/φ15
|
3.5mm-4.0mm
|
|
|
φ76
|
T=1.5/2.0/3.0
|
100-2000
|
φ12/φ15/φ20
|
3.5mm-4.5mm
|
|
|
φ89
|
T=2.0/2.5/3.0
|
100-2000
|
φ20
|
3.5mm-4.5mm
|
|
Main Features
1) Solid design, suitable for heavy lifting.
2) The bearing housing and steel tube are assembled and welded with a concentric automatic.
3) Cutting of the steel tube and bearing is performed with the use of a digital auto device/machine/equipment..
4) The bearing end is constructed to ensure that the roller shaft and bearing can be firmly connected.
5) Fabrication of the roller is effected by an auto device and 100% tested for its concentricity.
6) Roller and supporting components/materials are manufactured to DIN/ AFNOR/ FEM/ ASTM/ CEMA standard.
7) The casing is manufactured with highly composite, anti corrosive alloy.
8) The roller is lubricated and free from maintenance.
9) Woring life expectancy is up to 30,000 hours or more, depending on usage.
10)Vacuum sealed which has withstood anti water, salt, snuff, sandstone and dust proof experiments
Detailed Images
* Stainless steel roller
Food available
* Double sprocket drive drum
* Galvanized drum
* Non - powered roller conveying track
Our Company
Packing & Delivery
Related Products
Conveyor pulley
91.8% Response Rate
Conveyor roller
91.8% Response Rate
Conveyor belt
91.8% Response Rate
FAQ
1.Q: Are you a factory or trading company?
A: We are manufactuer of the conveyor roller.
2 . Q: What is your minimum order quantity?
A: The MOQ is 10pcs,Trial order is welcome at lower quantity, pls advise the estimated quantity, so that
we can check the best price for you.
3.Q: How long warranty for goods ?
A: All of our products have one year warranty.
4:Q: How about your quality?
A: Our quality are good and stable. The Quality Certificate will issued for each shipment.
